Pre-Configured Systems
If accelerated delivery schedules or budget constraints are driving your purchasing decision for an RF measurement testing solution, we offer economical, pre-engineered systems suitable for most applications and testing needs. Our turnkey solutions are designed for straightforward assembly in either an anechoic chamber or open facility, depending on the type of system and test application.

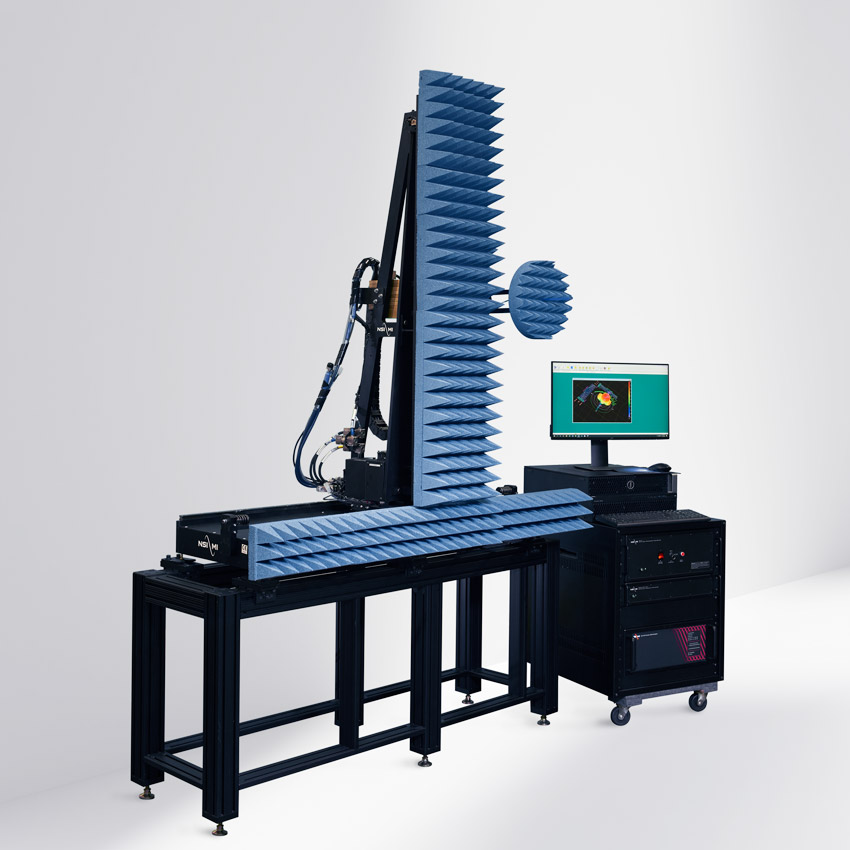

PNF-XYV-0.9x0.9
The PNF-XYV-0.9x0.9 is a pre-configured 4-axis planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 0.75 m (2.5 ft) from 2.6 GHz to mmWave.

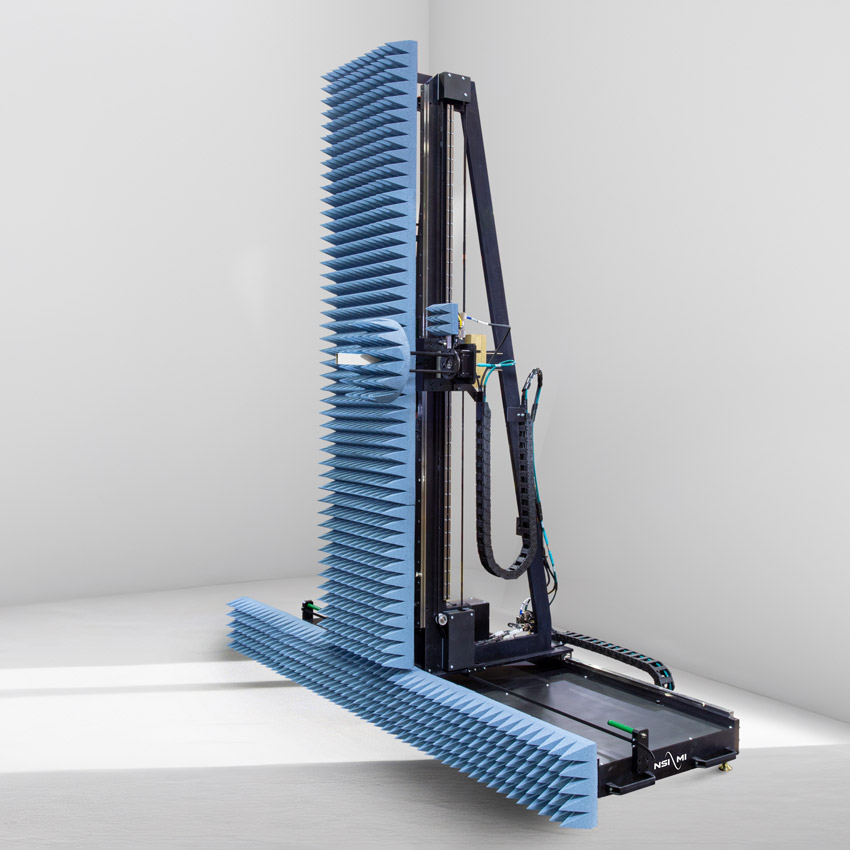

PNF-XYV-1.5x1.5
The PNF-XYV-1.5x1.5 is a pre-configured four axes planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 1.4 m (55 in.) from 1.7 GHz to mmWave.
PNF-XYV-1.8x1.8
The PNF-XYV-1.8x1.8 is a pre-configured four axis planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 1.65 m (65 in.) from 0.75 GHz to mmWave.

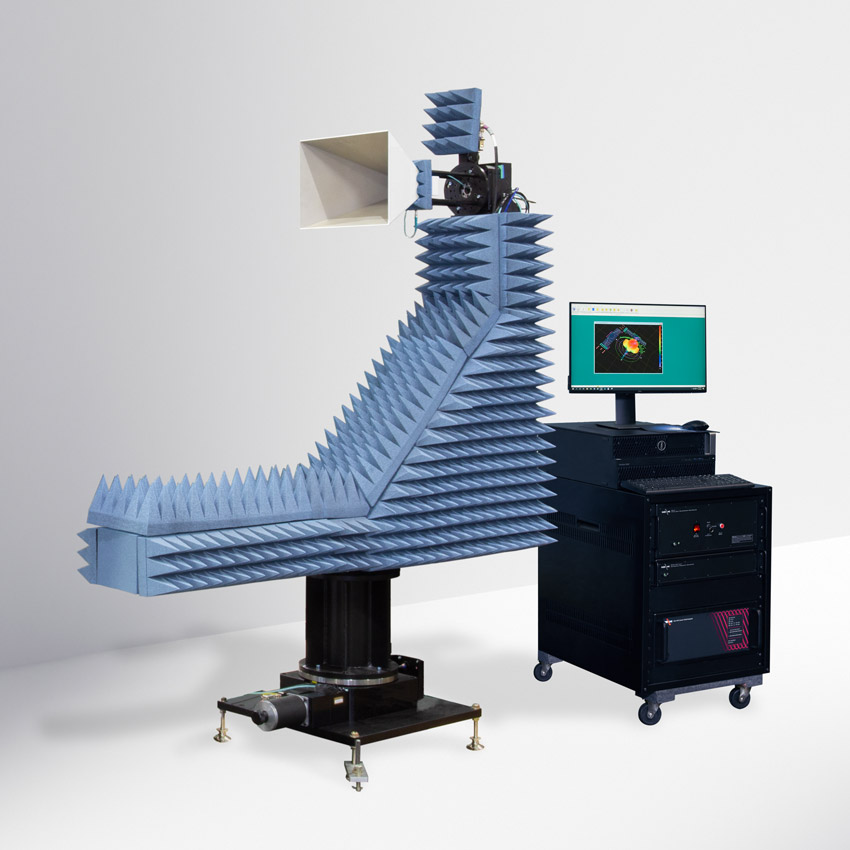

SNF-RAZ-0.7
The SNF-RAZ-0.7 is a pre-configured three axes spherical near-field measurement system ideal for measuring low to medium gain antennas from 0.37 to 110 GHz. The system is constructed of high strength aluminum and can support AUT payloads of up to 18 kg (40 lb). The independent probe stand and AUT positioner are easy to assemble, align and can be quickly dismantled for transport or storage.

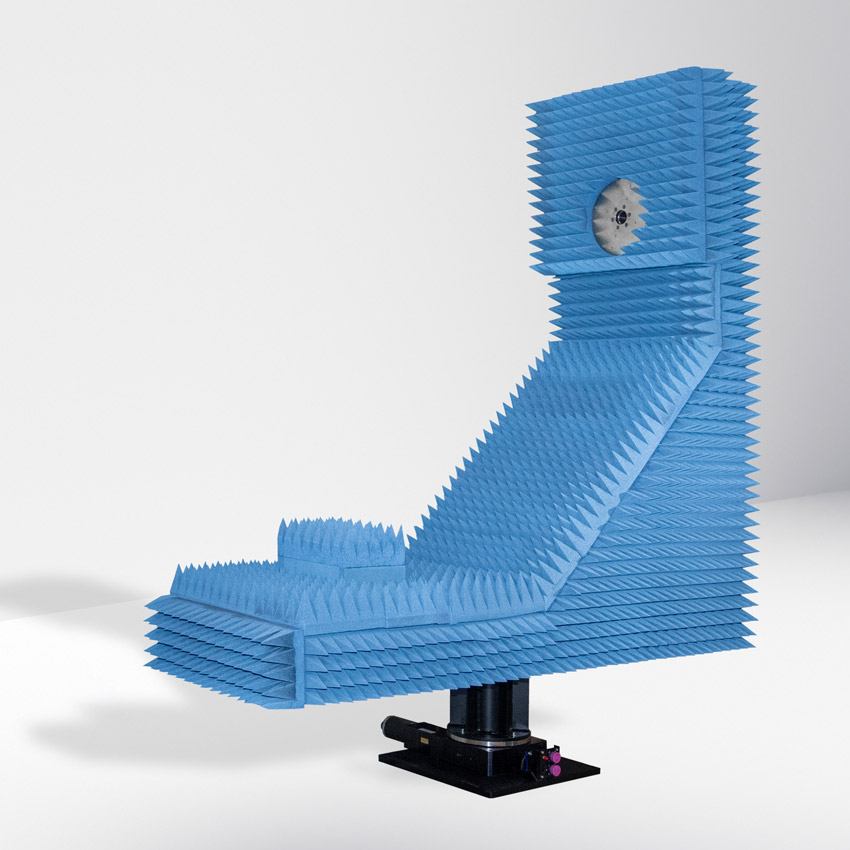

SNF-RAZ-1.3
Model SNF-RAZ-1.3 is a pre-configured three axes spherical near-field measurement system ideal for measuring low to medium gain antennas from 0.37 to 110 GHz. The system is constructed of high strength aluminum and can support AUT payloads of up to 75 kg (165 lb). The independent probe stand and AUT positioner are easy to assemble, align and can be quickly dismantled for transport or storage.
