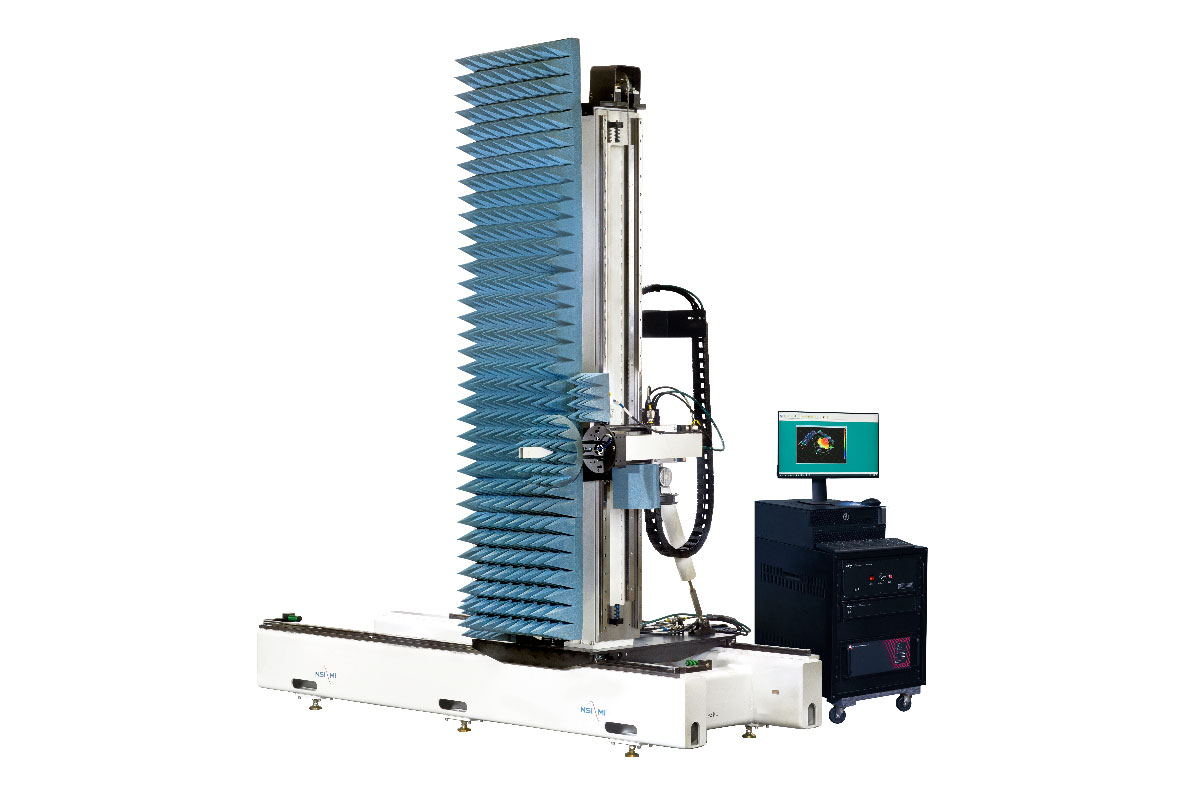

Planar Near-Field Measurement System 1.8 x 1.8 meters

Planar Near-Field Measurement System 1.8 x 1.8 meters

Model: PNF-XYV-1.8x1.8

Features
  • 0.75 GHz to mmWave testing
  • 1.8 x 1.8 m (5.9 ft x 5.9 ft) scan area with z and pol
  • 0.25 m Z and 3600 pol
  • Automatic scan setup
  • High speed bi-directional scanning
  • Powerful plotting and antenna analysis software
  • Far-field, near-field, and holographic patterns
Datasheet Request for Info or Quote

This is a pre-configured 4-axis planar near-field measurement system ideal for measuring medium and high gain antennas (>15 dBi) with apertures up to 1.65 m (5.4 ft) from 0.75 GHz to mmWave. The system is constructed of high strength steel and can support probe payloads of up to 19 kg (42 lb). This robust design is easy to align, set up and operate, and has a comprehensive set of options and accessories to accommodate a broad variety of test article geometries and installations.

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons
Positioning System
Positioner Vertical Planar – Rack and pinion X and Y
with MEC-Z-0.25 and MEC-AZ-0.1
Z and Pol Stages
Scan Area
 1.8 x 1.8 m (6 x 6 ft) with 0.25 m (10 in.) Z
Probe Capacity
 19 kg (42 lb) (WR975 OEWG)
Planarity
 0.05 mm (0.002 in.) RMS
Repeatability
 X, Y: 0.05 mm (0.002 in.) RMS
Z: 0.025 mm (0.001 in.) RMS
Pol: 0.03° RMS
Resolution X, Y: 0.025 mm (0.001 in.)
Z: 0.025 mm (0.001 in.)
Pol: 0.0125°
Scan Speed X,Y
 X: 0.25 m/s (10 in./sec)
Y: 0.38 m/s (15 in./sec)
Position Controller
 ELE-IMC (Intelligent Measurement Controller)
Motor Cables
 Quick-connect 12.2 m (40 ft)
PC Workstation
 Computer with LCD Monitor
Power
 500W, 100–240 VAC switchable, 50/60 Hz
Software
 NSI2000
Absorber
 20.3 cm (8 in.) pyramidal
Frequency Range
 0.75–110 GHz
RF System
Scanner RF Cables
 20, 40, or 50 GHz, 9.1 m (30 ft) X/Y Cabletrack
Rotary Joint
 26.5, 40, or 50 GHz (Pol)
Range RF Cables
 20, 40, or 50 GHz 9.1 m (30 ft) to Scanner Base and AUT
RF Receiver
 NSI-MI VFA, Keysight PNA, Rohde & Schwarz ZVA
Weights and Dimensions (Scanner Only)
Installed Envelope W x L x H
 3.1 x 1.8 x 3.3 m (122 x 70 x 130 in.)
Installed Weight
 1250 kg (2750 lb)
Crated Dimensions W x L x H
 2 crates up to 2.0 x 3.0 x 1.5 m (78 x 118 x 60 in.)
1 D container 1.5 x 1.1 x 1.0 m (58 x 42 x 38 in.)
  • Point to Point Communication Antennas
  • Phased-Arrays
  • Reflector Antennas
  • Radar Antennas

The PNF-XYV-1.8x1.8 supports NSI-MI, Keysight, and Rohde & Schwarz RF receivers and is capable of measuring amplitude and phase patterns from UHF to mmWave. The system includes a software workstation preloaded with NSI2000 Antenna Measurement Software and Windows® and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna’s performance. A single data set provides information on antenna gain, side lobe structure, beam pointing and cross polarization.

Each NSI-MI Pre-Configured System includes the following:
  • Positioning Subsystem including Mechanical Scanner with Absorber Kit and Motion Control System
  • State-of-the-art RF Subsystem
  • Mounting Hardware Installation Kit
  • Full Standard System Interface and Operations Documentation
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices
  • NSI-MI or customer supplied RF receiver connection





Positioning System
  • Multi-axis Mechanical Positioner
  • Absorber Kit
  • Motion Controller
  • Control and Motor Cabling
  • Cable Management
  • NSI2000 Software
  • PC
Planar Near-Field Measurement System 1.8 x 1.8 meters

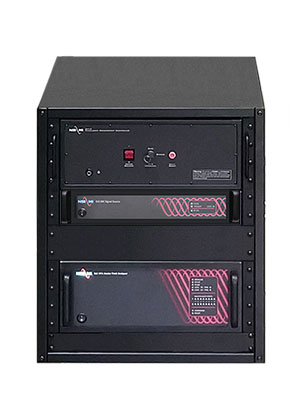

RF Subsystem
  • Scanner and Range RF Cables
  • Rotary Joints
  • RF Components and Devices (as needed)
  • Software Device Drivers
  • Data Acquisition, Processing and Plotting Software
RF Subsystem






Site Deliverables
  • Product Guide and Interface Control Documents
  • Hardware, System and Software Manuals
  • Anchoring Kit
  • Shipping Crates

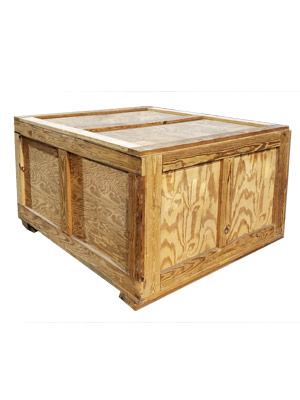

Shipping Crate
Our Pre-Configured Systems are designed to operate with a wide range of popular accessories and support services to meet budget and test needs. These include:
  • Full range of Probes and Standard Gain Horns
  • Additional software to enhance productivity
  • AUT supports, stands and other accessories
  • On-site installation, training and verification by NSI-MI experts
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices






RF Options
  • RF Frequency Options: 20, 40, 50 GHz
  • RF Receiver Options: NSI-MI or Customer Supplied
RF Options

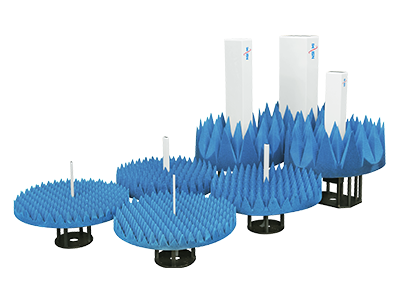

Antenna Accessories
  • Waveguide Probe Assemblies
  • Standard Gain Horn Assemblies
  • Broadband Probes Assemblies
Antenna Accessories





mmWave RF Upgrade Options
  • mmWave Band: 50–75 GHz module and Probe-SGH set
  • mmWave Band: 60–90 GHz module and Probe-SGH set
  • mmWave Band: 75–110 GHz module and Probe-SGH set
mmWave RF Upgrade Options

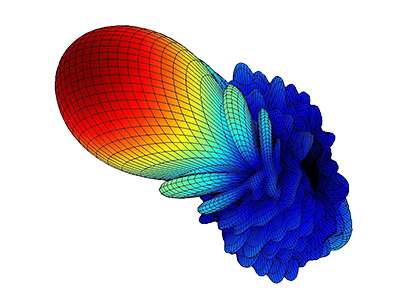

Software Add-ons
  • Additional NSI2000 License
  • Professional Upgrade
  • MTI
Software Add-ons





System Accessories

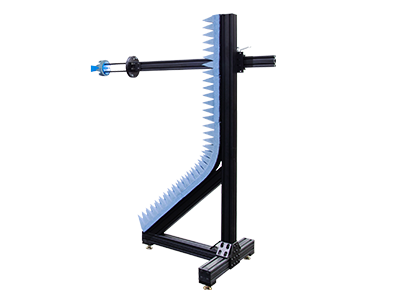

  • AUT Stand





Site Services

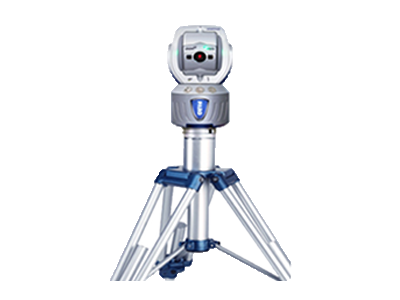

  • Site Z-Planarity Enhancement - 0.025 mm (0.001 in.) RMS with on-site re-cal
  • Installation
  • Training
Site Z-Planarity Enhancement
