High-Frequency Spherical Near-Field Range

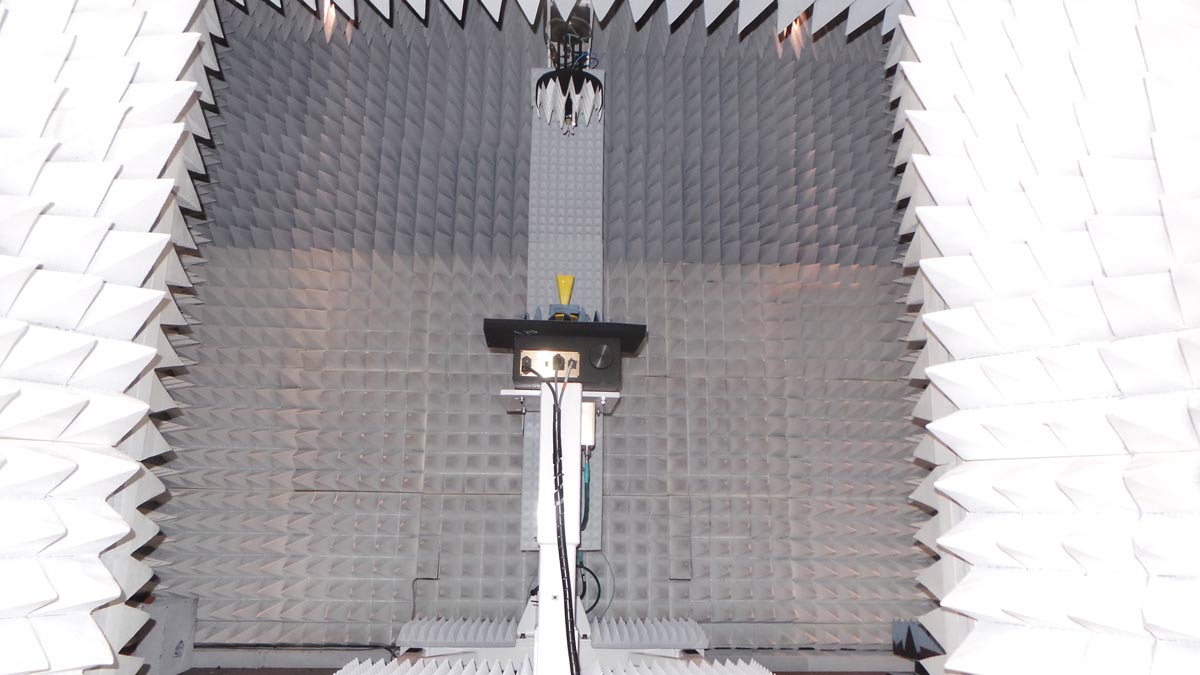

Our high-frequency spherical near-field test range, located in our Los Angeles office, extends the frequency range of our testing services up to 110.0 GHz and beyond. This is an ideal system for characterizing low gain antennas at mm-wave frequencies that would normally be difficult to measure. The anechoic chamber measures 2.4 m (8 ft) wide, 4.0 m (13 ft) long and 3.4 m (11 ft) high and lined with 0.3 m (12 in.) white pyramidal absorber.


Request for Info or Quote
  • Specifications
  • Configurations
  • Applications

Frequency Range 10.0 to 110.0 GHz
Chamber Size 4 m (L) x 2.4 m (W) x 3.4 m (H)
(13 ft x 8 ft x 11 ft)
Maximum AUT Size 0.4 m (1.3 ft) diameter
Load Capacity 22 kg (50 lb)
Access Door Opening 1.8 m (W) x 2.1 m (H)
72 in. x 80 in.
Absorber 0.3 m (12 in.) throughout the chamber
RF Subsystem NSI-RF-90001D

Test Configuration Configuration Setup
Spherical Near-Field NSI-700S-110 SNF theta-over-phi

Aerospace

  • Far-field solutions
  • Antenna characterization
  • Payload testing
  • Array calibration
  • SAR applications

Automotive

  • Integrated antenna characterization
  • Radio, wireless, satellite, GPS link testing
  • Ground plane simulation and testing

Defense

  • High power testing
  • Radar cross section (RCS)
  • Scene generation
  • Phased array performance
  • Radome characterization

Satellite

  • RF testing for flight hardware
  • Near-field and compact range solutions
  • SFD, EIRP, GD and GT measurements
  • Payload testing

Wireless

  • Base station antenna characterization
  • Wireless handset testing
  • MIMO antenna testing
  • 5G mmWave applications

Research

  • mmWave antenna measurements
  • On-chip antenna testing
  • Multi-purpose antenna test systems
  • Radio astronomy applications
