Antenna Range Controller

Model: ELE-ARC

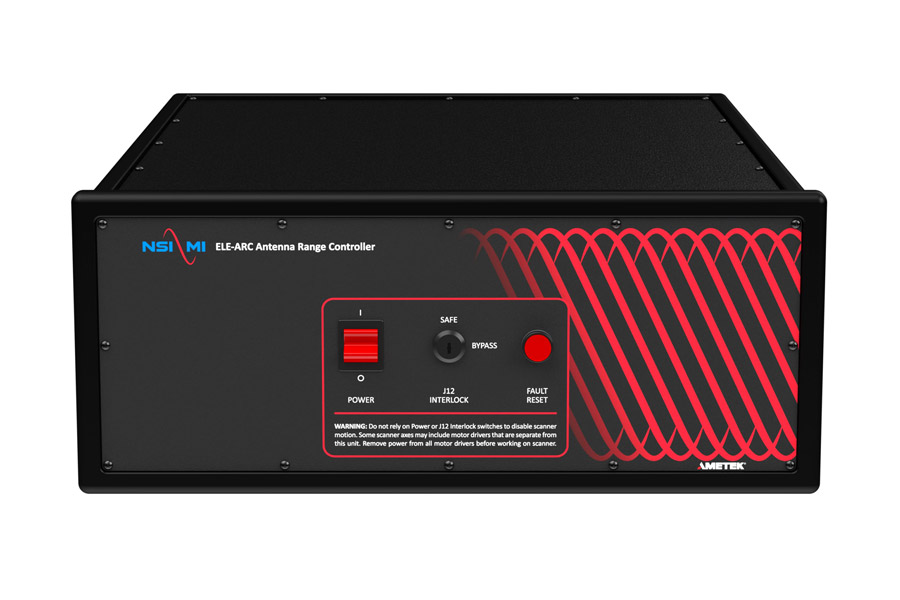

The Antenna Range Controller (ELE-ARC) is a 4-axis stepper motor control interface allowing control of up to 4 motors or motion stages. In a typical antenna measurement system, these axes would enable computer-controlled motion in x, y, z, and pol (probe rotation) directions. Below is a block diagram of such a typical antenna measurement system, showing how the ELE-ARC connects to the other system components. The Antenna Range Controller is typically controlled by a general-purpose digital I/O card located in the NSI-MI motion controller, but can also be controlled directly by TTL step and direction commands from other sources.

Features

• 4-axis control
• Stepper motor control for motors up to 7 amps
• Forward/reverse limit switch interface for each axis
• Control of locking brake, used for braking y-axis motion when powered off
• Safety interlock system
• Parallel I/O interface for PC control
• 8 bits parallel output on DB25f auxiliary ports
