Multi-Channel Extender
Model: ELE-VFA-EXT
Features
- Combines VFAs to provide parallel high-speed acquisition channels
- Easy cabling and connections
- No multiplexers required
Datasheet Request for Info or Quote
What is Multi-Channel Extender
The Multi-Channel Extender (ELE-VFA-EXT) is designed to combine multiple ELE-VFA Vector Field Analyzers to provide up to twelve simultaneous, phase coherent test channels plus one common reference signal of phase coherent RF data. The Multi-Channel Extender distributes a common IF reference signal, LO Signal and 10 MHz reference signals to each connected VFA.

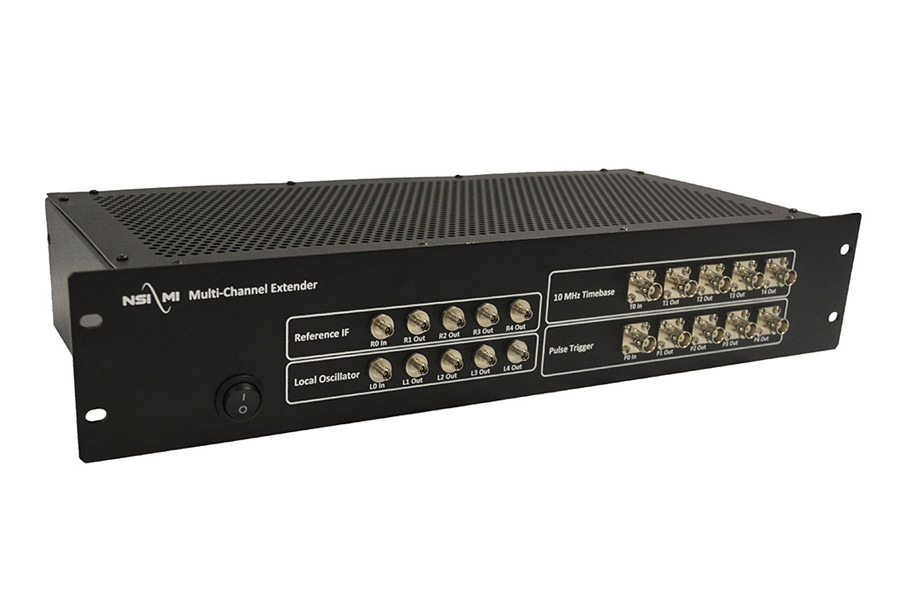

Having a depth of only 8” and designed for rear rack installation, the compact ELE-VFA-EXT has front panel connections making for easy cabling to the Vector Field Analyzers.
-
Specifications
-
Applications
-
Includes
| LO Signal | |
|---|---|
| Frequency Range | 0.19–20.0 GHz |
| Maximum Input Power | +10 dBm (nominal) |
| Path Gain1 | 1 ± 3.5 dB |
| Nominal Impedance | 50 Ω |
| Number of Ports | 1 input and 4 outputs (3.5 mm female) |
| Reference IF Signal | |
| Frequency Range | 10.0 - 50.0 MHz |
| Maximum Input Power | -10 dBm (nominal) |
| Insertion Loss1 | 7 dB Max |
| Nominal Impedance | 50 Ω |
| Number of Ports | 1 input and 4 outputs (BNC) |
| 10 MHz Time Base | |
| Frequency Range | 1–200 MHz |
| Maximum Input Power | +10 dBm (nominal) |
| Insertion Loss¹ | 7 dB Max |
| Nominal Impedance | 50 Ω |
| Number of Ports | 1 input and 4 outputs (BNC) |
| Pulse Trigger | |
| Frequency | 50 MHz max |
| TTL Input Low Level | 0 V (typ), 0.5 V (max) |
| TTL Input High Level | 2.4 V (typ), 2.2 V (min), 5 V (max) |
| TTL Output Low Level | 0.25 V (typ), 0.5 V (max), RL = 50 Ω |
| TTL Output High Level | 2.4 V (typ), 2.2 V (min), RL = 50 Ω |
| Nominal Impedance¹ | 50 Ω |
| Number of Ports | 1 input and 4 outputs (BNC) |
| Supported RF cable length to/from VFA (@ 0.6 dB/ft cable loss at 20 GHz) |
0.91 m (3 ft) |
| Size (H x W x D) | 2U rack-mountable |
| Main Chassis | 89 x 483 x 209 mm (3.5 x 19 x 8.2 in.) |
| With Panel Connectors | 89 x 483 x 237 mm (3.5 x 19 x 9.3 in.) |
| Weight | 6 kg (13 lb) max |
| Environmental | 0° to 40° C |
| AC Power | 100–240 V AC, 50/60 Hz, 100 W max |
¹ Input port to any output port with all other outputs terminated.
² Input impedance can be changed to 1 kΩ by setting an internal toggle switch.
- Multi-Channel Extender Unit
- Power supply cord
- RF terminations
- User manual
