Large Spherical Near-Field Range

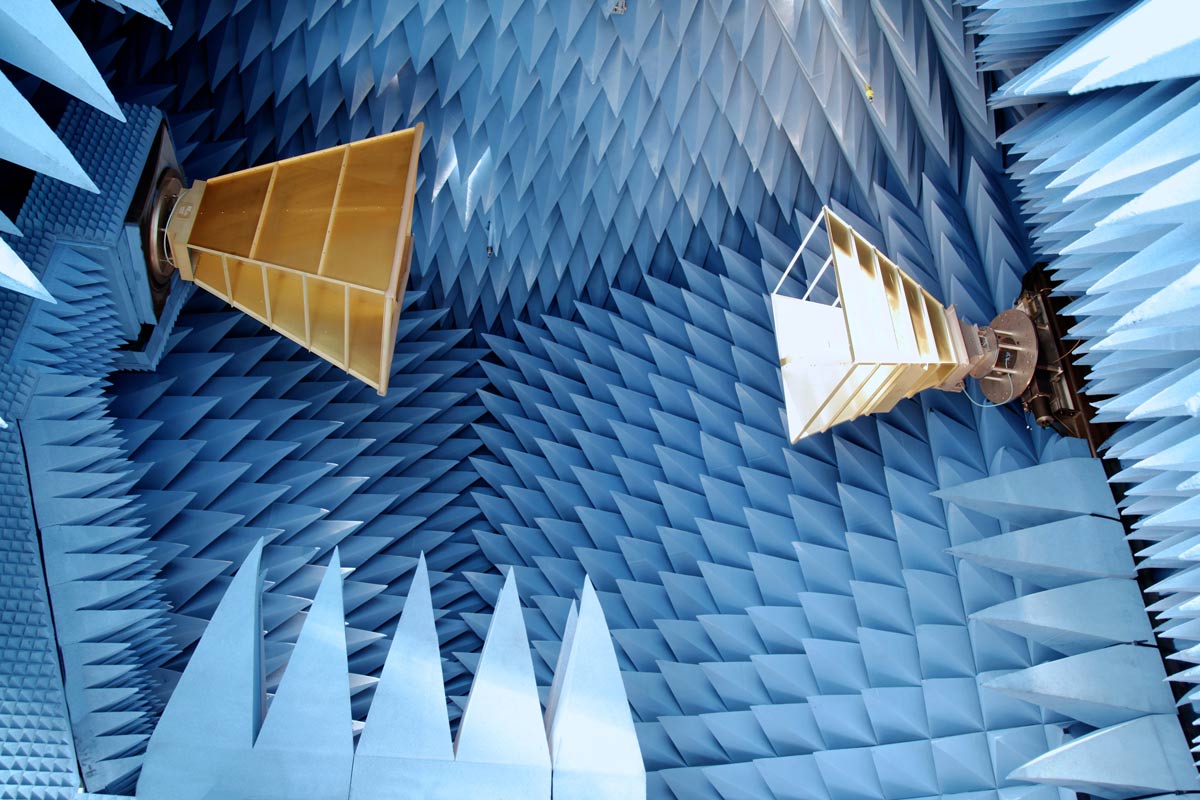

Our large spherical near-field test range test chamber, located in our Los Angeles office, measures 6.1 m (20 ft) wide, 6.1 m (20 ft) and 6.4 m (21 ft) high and lined with 0.9 m (36 in.) pyramidal absorber. This chamber can accommodate test articles up to 1.5 m (5 ft) in diameter and 450 kg (1,000 lb) and is capable of low-frequency measurements down to 300 MHz. The system includes a SNF scanner with a 1 m (40 in.) z-linear translation stage.


Request for Info or Quote
  • Specifications
  • Configurations
  • Applications



Frequency Range 300 MHz to 50 GHz
Chamber Size 6.1 m (L) x 6.1 m (W) x 6.4 m (H)
(20 x 20 x 21 ft)
Maximum AUT Size 2.7 m (9 ft ) diameter
Load Capacity 450 kg (10,00 lb)
Access Door Opening 0.9 m (36 in.)
(94 x 107 in.)
Absorber 36 in. (0.9 m) throughout the chamber
RF Subsystem NSI-RF-90001D

Test Configuration Configuration Setup
Spherical Near-Field NSI-700S-75 SNF scanner with 1.0 m (40 in.) manual z-translation stage

Aerospace

  • Far-field solutions
  • Antenna characterization
  • Payload testing
  • Array calibration
  • SAR applications

Automotive

  • Integrated antenna characterization
  • Radio, wireless, satellite, GPS link testing
  • Ground plane simulation and testing

Defense

  • High power testing
  • Radar cross section (RCS)
  • Scene generation
  • Phased array performance
  • Radome characterization

Satellite

  • RF testing for flight hardware
  • Near-field and compact range solutions
  • SFD, EIRP, GD and GT measurements
  • Payload testing

Wireless

  • Base station antenna characterization
  • Wireless handset testing
  • MIMO antenna testing
  • 5G mmWave applications

Research

  • mmWave antenna measurements
  • On-chip antenna testing
  • Multi-purpose antenna test systems
  • Radio astronomy applications
