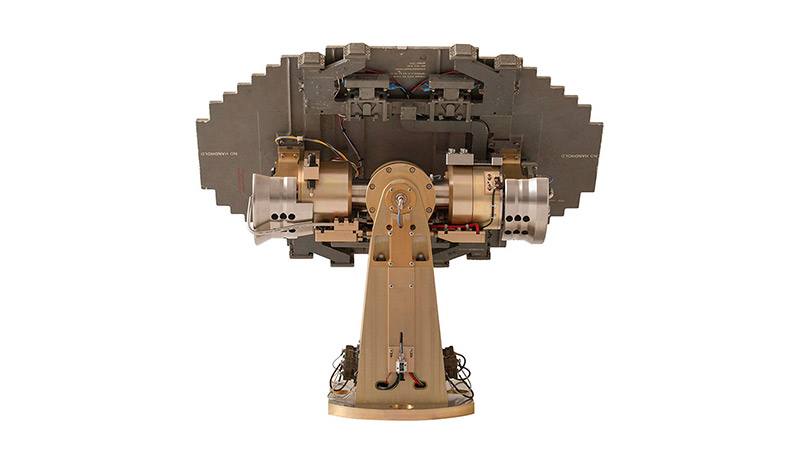

Gimbals

Gimbals
Model: MEC-GIM

Incorporating direct drive motors and extremely accurate encoders, NSI-MI gimbals provide superb responsiveness and pointing accuracy. The MEC-GIM gimbal offers extreme accuracy by virtue of its direct drive motors that are structurally coupled to the encoders and the antenna/ counterweight system. Flexible couplings are absent, as are gears, timing belts, and virtually all the conventional sources of positioning error in a mechanical drive. System stiffness is thereby greatly enhanced, and backlash is completely eliminated. Accuracy is further enhanced by the use of high precision, angular contact bearings. Minimum friction and zero bearing clearance are achieved by tailoring the bearing selection and preload amount for specific applications.


Features
  • Ideal for use in radome test systems
  • Direct-drive motors coupled to encoders
  • Backlash completely eliminated
  • High precision, angular contact bearings enhance accuracy
  • Wide speed range, up to 45° per second
  • Extended travel up to ±70° on both axes
  • Supports a wide assortment of antennas
  • Compact design easily fits inside small volumes
  • High structural stiffness allows extended servo bandwidth for demanding tracking applications
  • Specifications
  • Applications
  • Standard Components
  • Available Add-Ons
Typical 0.005°
Achievable   0.0025°
Antenna Size Up to 1067 mm (42 in.)
Antenna Weight Up to 45 kg (100 lb)
Axis Intersection 0.13 mm (0.005 in.)
Peak Delivered Torque 3 Nm (2.3 ft-lb)
Repeatability 0.001°
Resolution 0.0001°
Speed Up to 45°/second
Travel Limits Up to ±70° in both axes

The Gimbal Positioners are ideally suited for high performance tracking applications. Virtually any suitable antenna can be smoothly driven at speeds ranging from imperceptible movement to a rapid slew. The gimbal positioners can be customized to meet specific requirements.

  • MEC-GIM Gimbal
  • Instruction Manual
Request for Info or Quote for more information.
