Engineered for Excellence: The Roll Over Azimuth SNF Solution

The most common SNF type. Requires that the antenna be mounted horizontally and moved about two rotational axes. Delivered as a standalone system or as an add-on to a vertical PNF scanner.

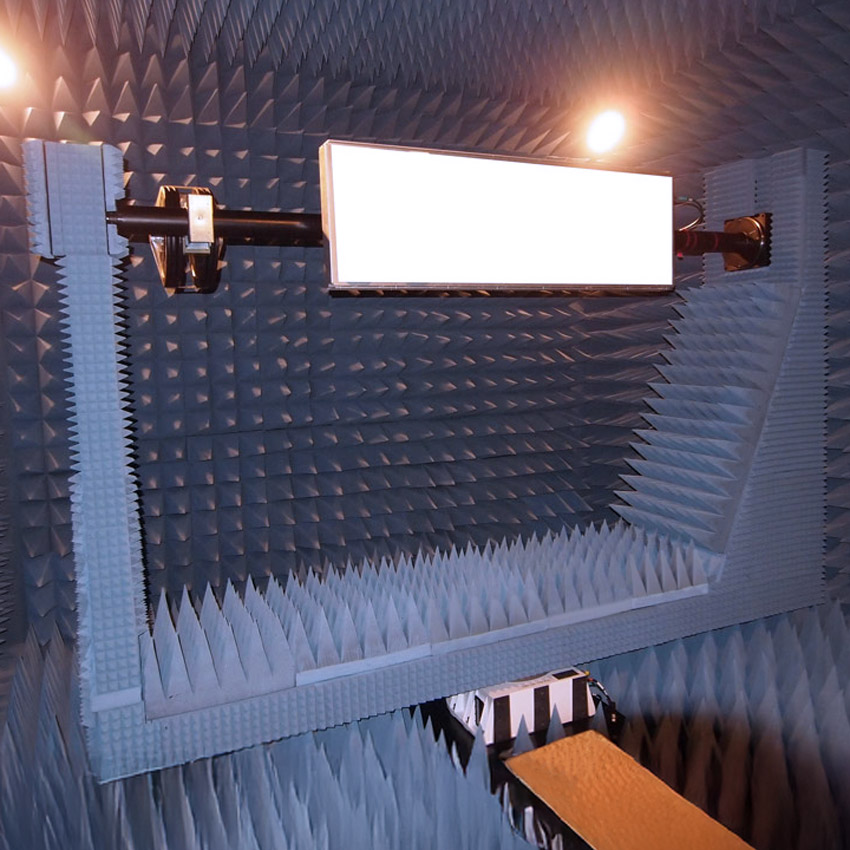

Roll over Azimuth
Roll over Azimuth

These systems are ideal for measuring medium and low gain antennas up to 3 m (9.8 ft) in diameter and is ideally suited to perform cellular and PCS-band base station antenna testing.

Roll over Azimuth


Roll over Azimuth

Roll over azimuth scanner systems are ideal systems for measuring medium and low gain antennas up to 3 m (118 in.) in diameter and are ideally suited to perform cellular and PCS band base-station antenna testing.

Read more
Pre-Configured Spherical Near-Field Measurement System


SNF-RAZ-0.7

The SNF-RAZ-0.7 is a pre-configured three axes spherical near-field measurement system ideal for measuring low to medium gain antennas from 0.37 to 110 GHz. The system is constructed of high strength aluminum and can support AUT payloads of up to 18 kg (40 lb). The independent probe stand and AUT positioner are easy to assemble, align and can be quickly dismantled for transport or storage.

Read more
Pre-Configured SNF-RAZ-1.3


SNF-RAZ-1.3

Model SNF-RAZ-1.3 is a pre-configured three axes spherical near-field measurement system ideal for measuring low to medium gain antennas from 0.37 to 110 GHz. The system is constructed of high strength aluminum and can support AUT payloads of up to 75 kg (165 lb). The independent probe stand and AUT positioner are easy to assemble, align and can be quickly dismantled for transport or storage.

Read more
