Linear Positioners

NSI-MI's linear positioners range from portable single-axis floor slides to multi-axis 28.0 m ( 98.8 ft) x 12.0 m (39.3 ft) precision XY positioners. Linear position repeatability better than ±0.02 mm (0.0007 in.) and planarity better than 0.025 mm (0.0009 in.) RMS is offered in select models.

Vertical XY Positioners

Small Vertical XY Positioner

Small Vertical XY Positioners

0.3 m x 0.3 m - 1.5 m x 1.5 m
Small Vertical XY Positioners are ideal for precision measurement or inspection of small articles.

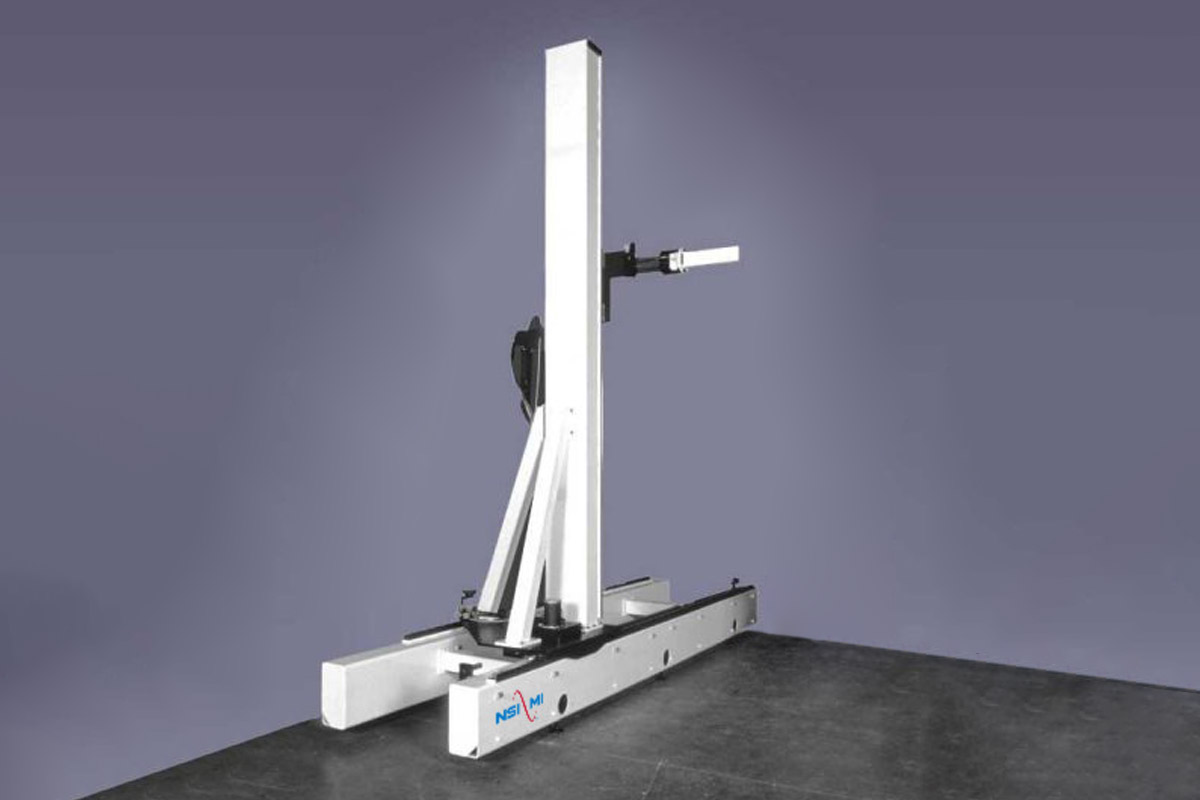

Medium Vertical XY Positioner

Medium Vertical XY Positioners

1.8 x 1.8 m – 9.1 x 9.1 m
Medium Vertical XY Positioners are ideal for precision measurement or inspection of articles up to 9.1 m (30 ft) in height.
Large Vertical XY Positioner

Large Vertical XY Positioners

9.1 m x 9.1 m - 32.9 m x 15.8 m
Large Vertical XY Positioners are ideal for precision measurement or inspection of large articles up to 15.8 m (52 ft) in height.

Horizontal XY Positioners

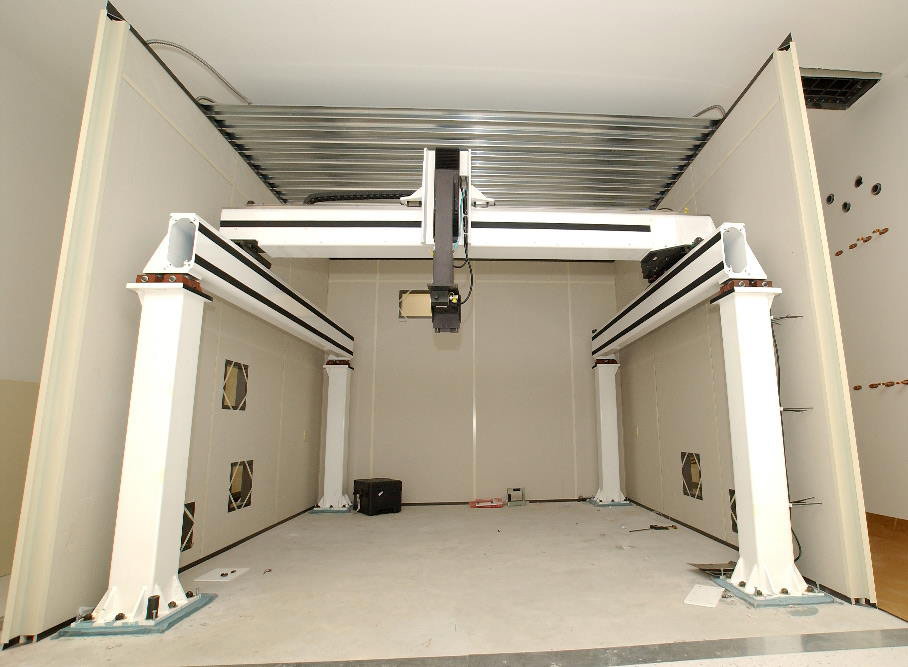

Small Horizontal XY Positioner

Small Horizontal XY Positioners

1.8 m x 1.8 m - 4.5 m x 4.5 m

Small Horizontal XY Positioners are ideal for measurement and inspection of articles in horizontal orientation.
Medium Horizontal XY Positioner

Medium Horizontal XY Positioners

6.7 m x 6.7 m - 12.1 m x 9.1 m
Medium Horizontal XY Positioners are ideal for measurement or inspection of articles in horizontal orientation with minimum measurement dimension in either X or Y greater than 4.5 m (15 ft).
Large Horizontal XY Positioners

Large Horizontal XY Positioners

14.0 m x 7.9 m - 20 m x 20 m
Large Horizontal XY Positioners are ideal for measurement or inspection of articles in horizontal orientation with minimum measurement dimension in either X or Y greater than 7.9 m (26 ft).

Slides

Floor Slides

Floor Slides

Floor Slides provide precision linear motion for positioning systems with high capacitites available to 32,700 kg (72,000 lb).
Vertical Slides

Vertical Slides

The complete versatility of elevated or ground-level antenna testing on a single antenna test range can be achieved by incorporating the Family of Vertical Slides.
Offset Slides

Offset Slides

Offset arms and linear slides often have highly specific requirements depending on the technical nature of the test solution and environment.
