Vertical Planar Near-Field Systems for Every Scale
Discover our extensive range of Vertical Planar Near-Field Systems. Whether you require a small scanner for high frequency testing or a large and precise scanner, we have the perfect solution for you.
Vertical PNF
The most common PNF type, suitable for most antennas whose apertures can be installed vertically for test
Pre-Configured Near-Field Vertical Planar Systems
If tight deadlines or budgets are influencing your RF testing solution choice, our cost-effective, pre-engineered systems offer reliable performance for most applications. These turnkey solutions are easy to assemble in either anechoic chambers or open facilities, depending on your testing needs

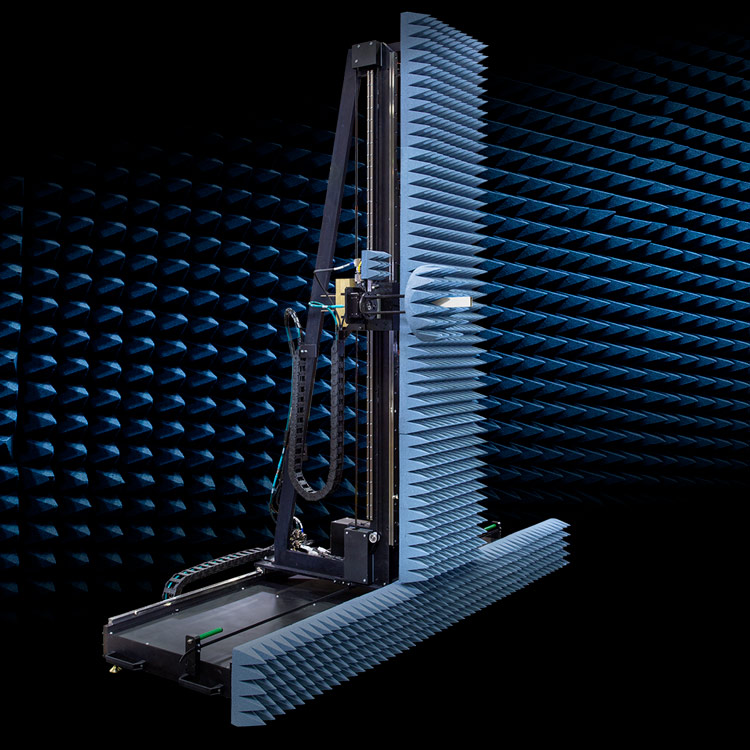

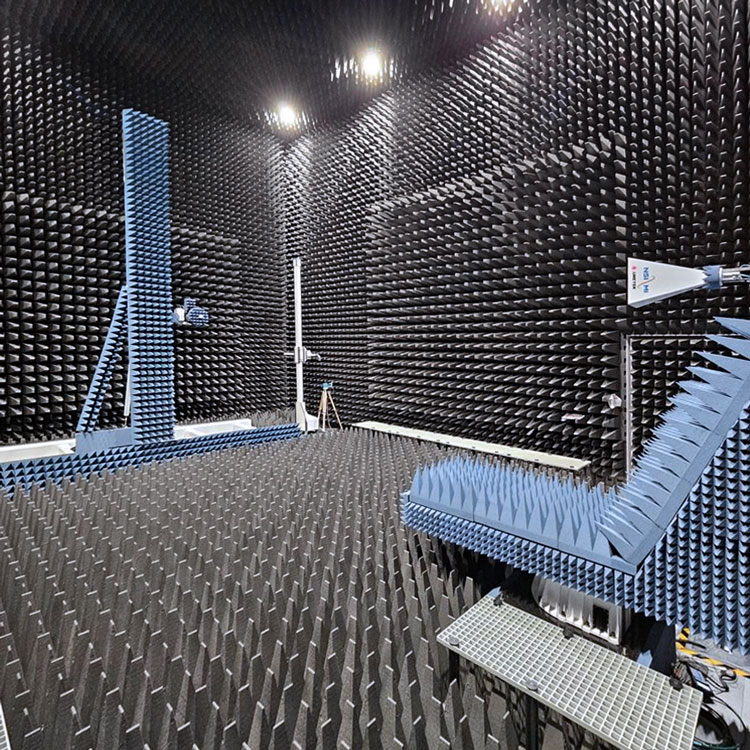

Medium Vertical Planar Systems
NSI-MI’s Vertical Planar Near-Field (PNF-XYV) systems are ideal for testing medium to high gain antennas (≥15 dBi), including reflectors, phased arrays, and satellite antennas, with angular coverage up to ±80° from boresight. These systems support scan planes from 1.8 m to 6.1 m square and include high-capacity polarization and Z-translation stages for probes down to 0.75 GHz.

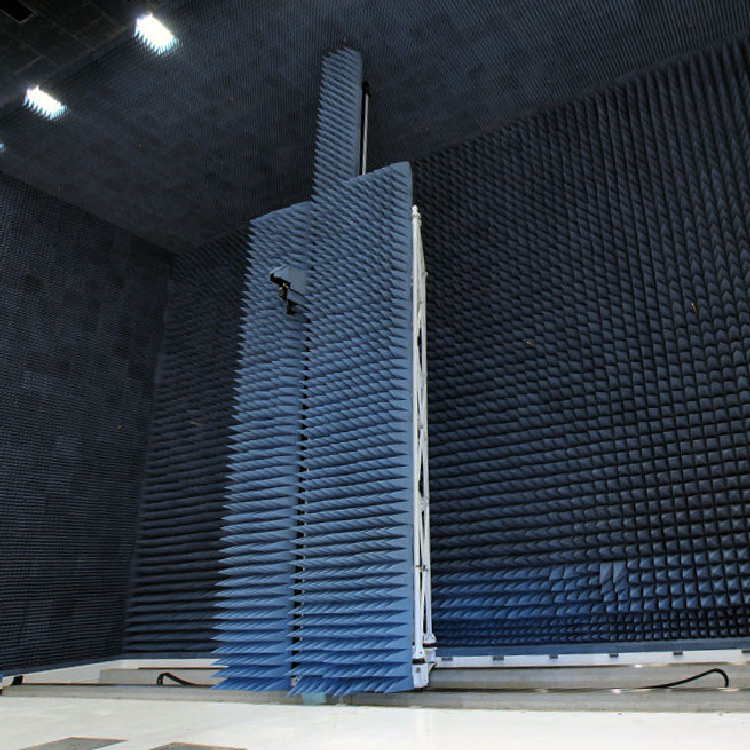

Large Vertical Planar Systems
NSI-MI’s Vertical Planar Near-Field (PNF-XYV) systems are optimized for forward hemisphere testing of medium to high gain antennas (≥15 dBi), including reflectors, phased arrays, and satellite antennas, with up to ±80° angular coverage. Large systems offer scan planes from 9.1 m to 32.9 m wide, with custom sizes available. Each system supports probes down to 0.5 GHz and includes high-capacity polarization and Z-translation stages.
