Vertical Slides

Vertical Slides
Model: MEC-VS

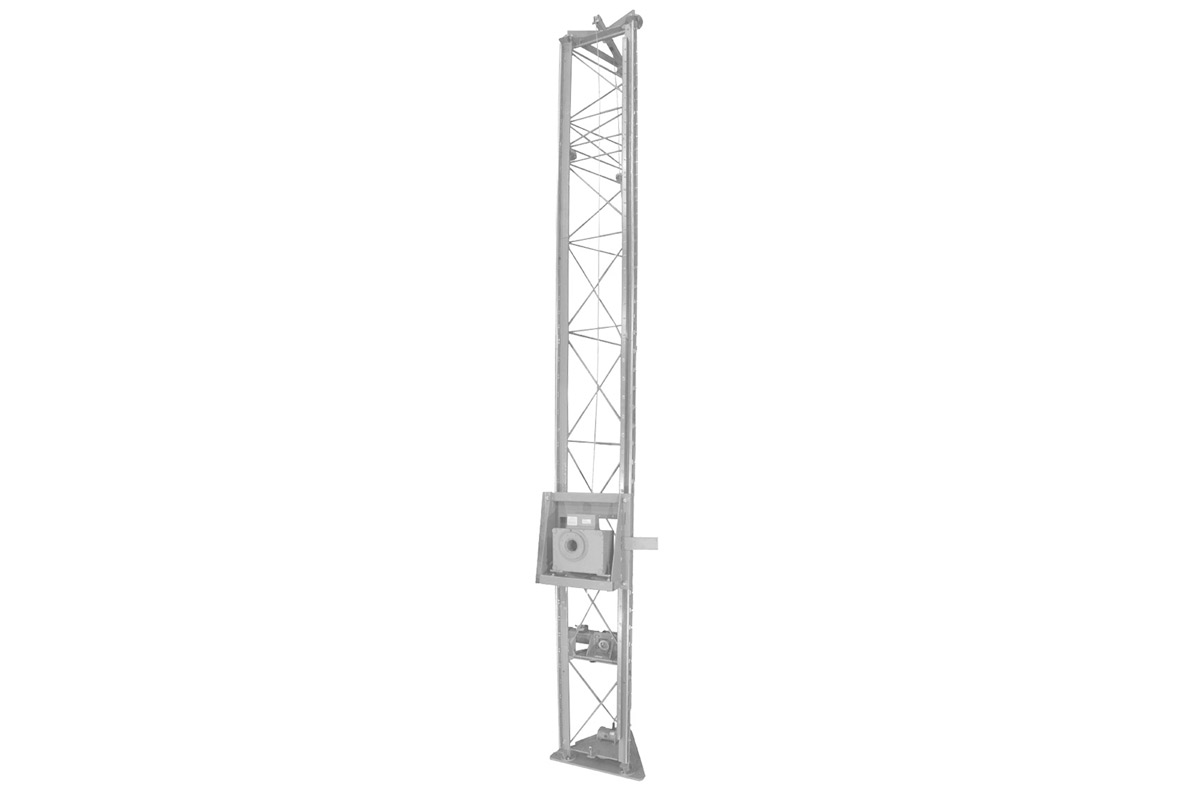

Our vertical slides optimize the versatility of elevated or ground-level testing in a single test range. This flexibility is made possible through extended vertical carriage travel and ease of installation and adjustment of equipment on the tower. Payload weights up to 453.5 kg (1,000 lb) can be elevated to approximately 7 m (23 ft) above the ground.

Features
  • Two tracks on the narrow tower face guide the carriage, which can be remotely raised or lowered as desired by a cable/winch drive system
  • Adjustable electrical limit switches at the top and bottom of the tower prevent over travel and possible equipment damage
  • Digital position readout
  • Compatible with handheld controls
  • Specifications
  • Applications
  • Standard Components
  • Compatibility
Overall Height 7.8 m (25.4 ft)
Carriage Travel 6.4 m (21 ft) (0.6-7.0 m (2-23 ft) from base)
Position Repeatability 1.5 mm (0.06 in.)
Maximum Carriage Lifting Capacity 454 kg (1,000 lb)
Net Weight 998 kg (2,200 lb)
  • MEC-VS Vertical Slides
  • Instruction Manual
  • Maintenance Manual
  • Interface Control Drawing (ICD)
