Precision Axis Controller
Model: ELE-PAC
Features
- Modular design for remote or rack-mount installation
- Flexible control: stepper and servo motor options
- Built-in timing master for coordinating complex acquisitions
- Scalable: controls up to 16 axes
- Supports high-accuracy incremental and absolute position feedback sensors
- Enhances positioner accuracy by correcting repeatable systemic errors
Description
The Precision Axis Controller (ELE-PAC) is the latest high-performance position controller from NSI-MI. The modular and flexible design has been specially optimized to support all types and sizes of measurement systems. ELE-PAC modules can be co-located within an equipment enclosure or installed remotely to maximize performance. The ELE-PAC supports increased connectivity to a wider variety of positioning equipment, with options for both stepper and servo modules. The ability to mix and match different motor types allows for more flexible system implementations, with support for active position correction to improve upon native system accuracy. The ELE-PAC also serves as a timing master, allowing it to coordinate all acquisition timing with the RF sub-system to maximize measurement efficiency. An optional hand-held local control unit may be used to provide operator control near the final positioner. The ELE-PAC is especially powerful when combined with Vector Field Analyzer™ Performance Suite.

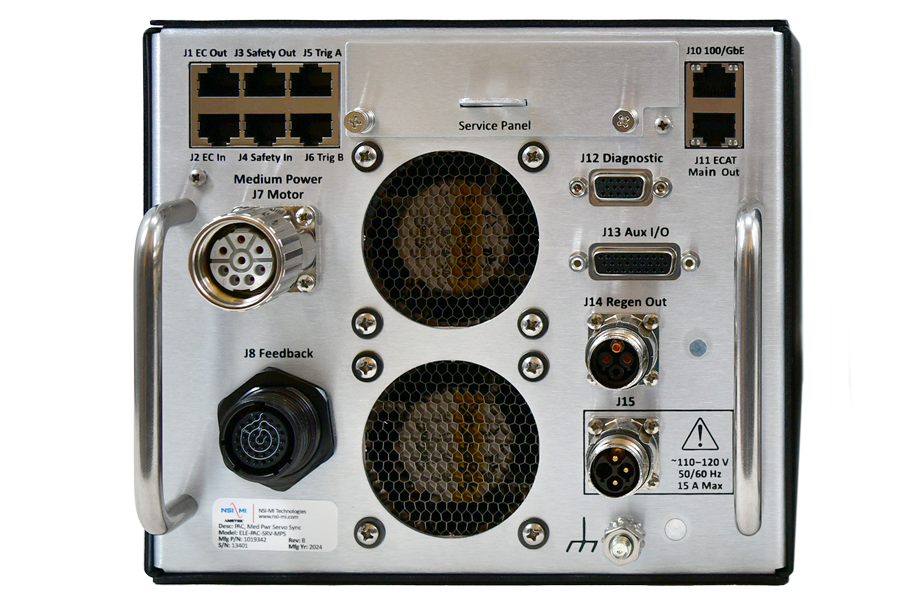

ELE-PAC Servo Module Rear Panel Connections
| Label | Description | Connectors |
|---|---|---|
| (J1) EC Out (J2) EC In |
Connect to the next PAC module in the system | RJ45 |
| (J3) Safety Out (J4) Safety In |
Hardware drive disable | RJ45 |
| (J5) Trig A (J6) Trig B |
RS-422 differential trigger bus connections | RJ45 |
| (J7) Motor | Motor drive for brushed, brushless and shunt-wound field types | M23 |
| (J8) Feedback | Motor feedback signals, including motor halls, velocity feedback, position feedback, limits and brake control | AMP MIL-DTL-38999 |
| (J10) 100/GbE | Connect the PAC to the system computer for remote control and SCPI programming interface | RJ45 |
| (J11) ECAT Main Out |
ECAT motor driver input for the main PAC module | RJ45 |
| (J12) Diagnostic | Direct connection to the motor driver for diagnostic purposes | HD15 |
| (J13) Aux I/O | Multiplexer control, receiver ready and receiver trigger signals | HD26 |
| (J14) Regen Out | Used to prevent overvoltage condition by dissipating energy with external power resistor (Med/High only) | M17 |
| (J15) AC Power Input | Low: 100–240 VAC Med: 100–120 VAC High: 220–240 VAC |
Low: IEC C14 Medium: M17 High: M23 |
ELE-PAC Stepper Module Rear Panel Connections
| Label | Description | Connectors |
|---|---|---|
| (J1) EC Out (J2) EC In |
Connect to the next PAC module in the system | RJ45 |
| (J3) Safety Out (J4) Safety In |
Hardware drive disable | RJ45 |
| (J5) Trig A (J6) Trig B |
RS-422 differential trigger bus connections | RJ45 |
| (J7) Axis 1 (J8) Axis 2 |
Stepper motor drive, step, direction and limit switch detection | Jaeger; 19-Pin circular |
| (J9) Brakes | 2-axis independent brake control; brake engages when signal is de-energized | AMP 7-Pin 208871-1 |
| (J10) 100/GbE | Connect the PAC to the system computer for remote control and SCPI programming interface | RJ45 |
| (J11) ECAT Main Out | ECAT motor driver input for the main PAC module | RJ45 |
| (J12) Diagnostic | Direct connection to the motor driver for diagnostic purposes | HD15 |
| (J13) Aux I/O | Multiplexer control, receiver ready and receiver trigger signals | HD26 |
| (J14) Feedback | Optional encoder feedback with home/index positions | DB25 |
| (J15) AC Power Input | 100–240 V AC | IEC C14 |
ELE-PAC Typical System Diagram

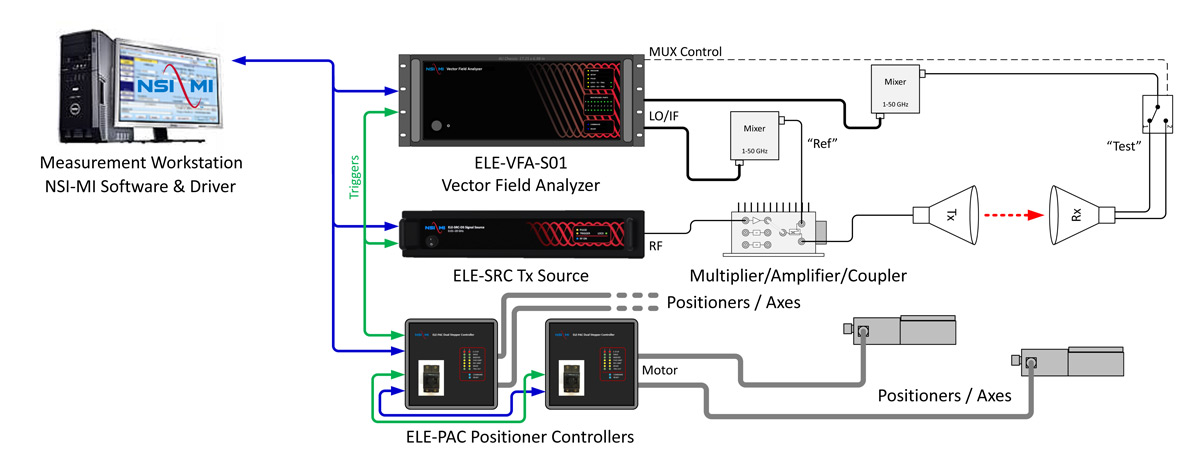

A typical system configuration using two dual-stepper PAC modules is shown below. For small systems, two PAC modules can be installed in a single rack-mount kit, configured as ELE-PAC-SK4. For larger systems, two modules can be distributed as required near the motion axes, with trigger and control daisy-chained between PAC modules via Ethernet connections. In this setup, the Vector Field Analyzer™ (ELE-VFA) acts as receiver and system timing master. For VNA- based systems, ELE-PAC can be used to coordinate measurement timing.
ELE-PAC System Timing Master
When ELE-PAC is paired with a VNA-based RF sub-system, it is used to coordinate system timing. Some features of the ELE-PAC timing master include:
- Support for up to 250,000 measurements at each trigger point
- Four multiplexer bits for RF switch or open-loop beam state control
- Receiver ready and receiver trigger signals
- 200 ns minimum measurement time
For more complex and demanding measurement scenarios, NSI-MI highly recommends integrating the ELE-PAC with either the Vector Field Analyzer™ (ELE-VFA) or the Vector Measurement Controller (ELE-VMC). This combination ensures enhanced precision, accuracy, and efficiency in capturing and analyzing electromagnetic field data.
-
Specifications
-
Applications
-
Ordering Guide
-
Includes
-
Available Add-Ons
| Function/Parameter | Servo | Dual-Stepper | ||
|---|---|---|---|---|
| Low Power | Medium Power | High Power | ||
| Number of axes per module | 1 | 1 | 1 | 2 |
| Drive capacity (maximum continuous current) | 6 | 12 | 20 | 7 per axis |
| Motor bus voltages (DC V) | 24 | 160 | 320 | 48 |
| AC power requirements | 100–240 V AC; 50/60 Hz; 3 A max |
110–120 V AC; 50/60 Hz; 15 A max |
240 V AC; 50/60 Hz; 25 A max |
100–240 V AC; 50/60 Hz; 7 A max |
| Supported software | NSI2000 MI-3000 Advanced Antenna Acquisition and Analysis (A4) SCPI over Ethernet |
|||
| Safety features | Limit switch support: Fwd/Rev (stop & index) E-Stop Integration: hardware real-time Brake Control: 24V, 1.1A max & external relay for high power brakes Hardware interlocks supported |
|||
| Combined-axes features | Virtual axes, Torque bias, Cross-axis correction, Dual drive, Position trigger/capture, Position feedback | |||
| Position feedback | Single/Dual Speed Synchro, Incremental Encoder, Absolute Encoder | |||
| Velocity feedback | Tachometer, Incremental Encoder | |||
| Mounting options | 4U rack-mount chassis (up to 2 modules), Distributed mounting | |||
| Regulatory | CE (EMI/EMC, Low Voltage, Safety), SGS (NA Safety) | |||
| Environmental | Temperature: 0° to +40°C (indoor) Humidity: <95% non-condensing |
|||
| Module size (H x W x D) | 17.0 x 19.7 x 59.0 cm (6.7 x 7.8 x 23.2 in.) without rack mount hardware | |||
| 4U chassis size (H x W x D) | 17.7 x 48.3 x 56.2 cm (7 x 19 x 22.1 in.) with rack mount hardware | |||
| Weight | < 11 kg (24 lbs) | |||
| Model Number | Type | Feedback Type |
|---|---|---|
| ELE-PAC-STP | PAC Module, Dual Stepper | Encoder or Open-Loop |
| ELE-PAC-SK4 | PAC Kit, 4-Axis Stepper, 4U Rack | Encoder or Open-Loop |
| ELE-PAC-LPE | PAC Module, Low Power Servo, Encoder | Encoder |
| ELE-PAC-MPE | PAC Module, Medium Power Servo, Encoder | Encoder |
| ELE-PAC-MPS | PAC Module, Medium Power Servo, Synchro | Synchro |
| ELE-PAC-HPE | PAC Module, High Power Servo, Encoder | Encoder |
| ELE-PAC-HPS | PAC Module, High Power Servo, Synchro | Synchro |
| ELE-PAC-RMK | PAC Rack Mount Kit for 2 Modules | N/A |
- ELE-PAC Precision Axis Controller
- Power cord
- User guide
- SCPI command set for remote control applications
- Standard one year warranty
