Small Vertical XY Positioners

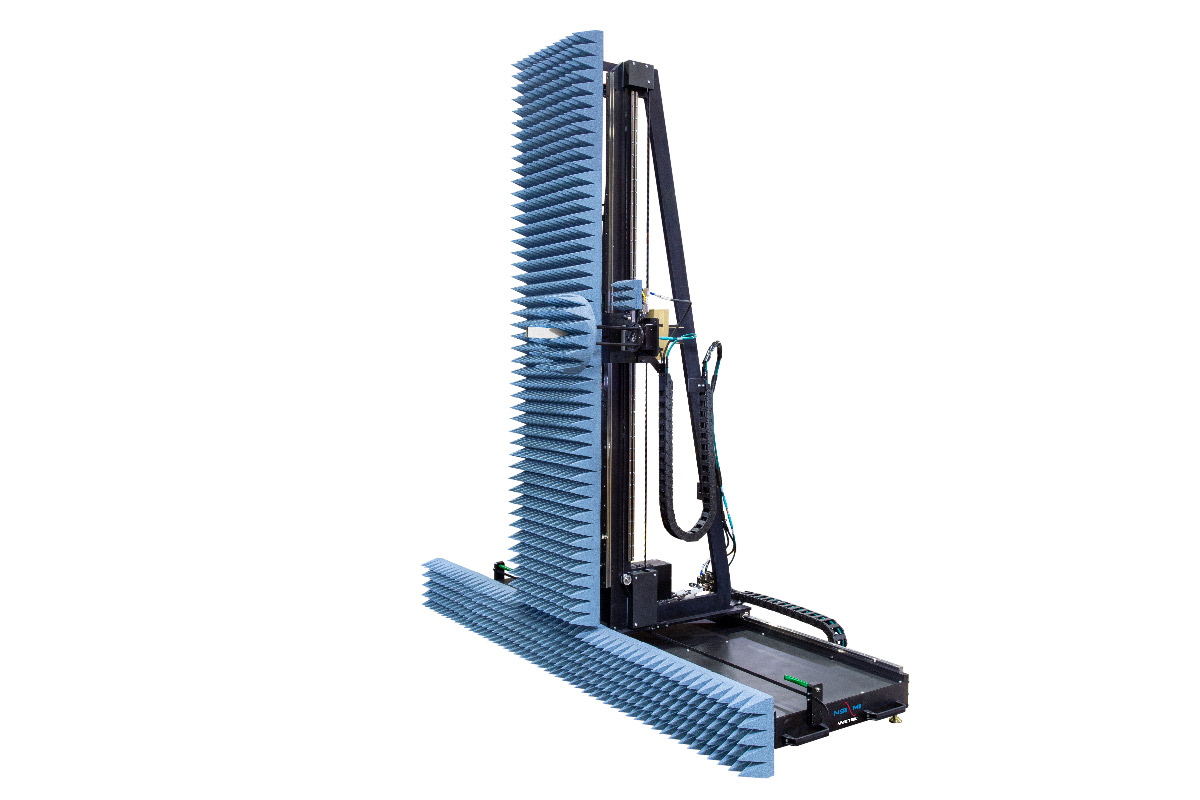

Small Vertical XY Positioner
Model: MEC-XYV

Our small vertical XY positioners are ideal for precision measurement or inspection of small articles, high frequency, medium and high gain antennas (>15 dBi) with small apertures from X-band through mmWave frequencies, making them suitable for testing feeds and small arrays or reflector antennas.


Features
  • High planarity and position repeatability
  • 0.3 m x 0.3 m (1 ft x 1 ft) to 1.5 m x 1.5 m (5 ft x 5 ft) scan area
  • Inverted “T” frame design for high accuracy
  • Ease of assembly and alignment
  • Select models can be quickly dismantled for relocation or storage
  • Specifications
  • Applications
  • Standard Components
  • Compatibility
Position Repeatability  0.02 – 0.05 mm RMS (0.0008 – 0.002 in. RMS)
Scan Area
 90,718 – 272,155 kg (200,000 – 600,000 lb)
Planarity 0.05 – 0.13 mm RMS (0.002 – 0.005 in. RMS)
*Corrected Planarity  0.025 – 0.05 mm RMS (0.001 – 0.002 in. RMS)
Resolution (X,Y) 0.05 – 0.06 mm (0.002 – 0.0025 in.)
 Position Repeatability 0.02 – 0.05 mm RMS (0.0008 – 0.002 in. RMS)
Scan Speed  (X-Y) X: 0.013 m/s – 0.38 m/s (0.5 – 15 in./s)
Y: 0.013 m/s – 0.76 m/s (0.5 – 30 in./s )
Carriage Capacity 4.5 – 9.1 kg (10 – 20 lb)
*Note: Requires optional structure correction software and motorize translation stage.
  • MEC-XYV Small Vertical XY Positioner
  • Instruction manual
  • Interface control drawing (ICD)
Recommended Position Controllers:

  • 4 Axis Intelligent measurement controller (IMC)
  • 4 Axis Antenna range controller (ARC)
  • 8 Axis Motion controller (PMC)
