Small Horizontal XY Positioners

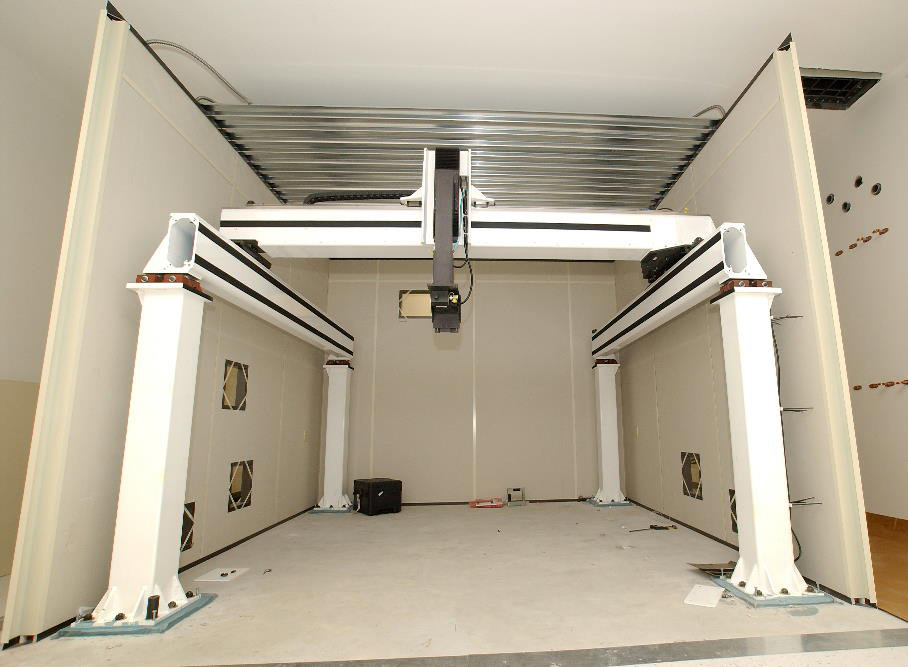

1.8 m x 1.8 m Horizontal XY Positioner
Model: MEC-XYH
Small horizontal XY positioners are ideal for measurement and inspection of articles in horizontal orientation. The small horizontal XY positioners are based on a “H” frame design. The positioners are constructed using two reinforced steel X rails that support a rigid yet lightweight Y-bridge on precision bearing rails. The high capacity probe stage can accommodate various types probes. Native accuracy of the XY positioner can be enhanced using optional laser-based error correction.

Features
  • High planarity and position repeatability
  • 1.8 m x 1.8 m (6 ft x 6 ft) to 4.5 m x 4.5 m (15 ft x 15 ft) scan area
  • “H” frame design for high accuracy
  • Ease of assembly and alignment
  • Laser-based enhanced accuracy options available
  • Specifications
  • Applications
  • Standard Components
  • Compatibility
Scan Area
 1.8 x 1.8 m – 4.5 x 4.5 m (6 ft x 6 ft – 15 ft x 15 ft)
Planarity 0.05 – 0.10 mm RMS (0.002 – 0.005 in. RMS)
*Corrected Planarity  0.025 – 0.05 mm RMS (0.001 – 0.002 in. RMS)
Resolution 0.025 – 0.05 mm (0.001 – 0.002 in.)
 Position Repeatability 0.05 mm RMS (0.002 in. RMS)
Scan Speed  X: 0.25 m/s (10 in./s)
Y: 0.5 m/s (20 in./s)
Carriage Capacity 38 kg (85 lb)
*Note: Requires optional structure correction software and motorize translation stage.
  • MEC-XYH Small Horizontal XY Positioner
  • Instruction manual
  • Interface control drawing (ICD)

Recommended Position Controllers:

  • 4 Axis Intelligent measurement controller (IMC)
  • 4 Axis Antenna range controller (ARC)
  • 8 Axis Motion controller (PMC)
