Far-Field Systems

Far-field testing can be accomplished in either outdoor or indoor configurations. In an outdoor far-field range, the test antenna is installed on the test positioner located on a tower, roof or platform outside the instrumentation control room. Indoor systems are available as direct illumination far-field implementations, or compact range solutions, where a precision-machined reflector helps to simulate far-field conditions over a greatly reduced range length.

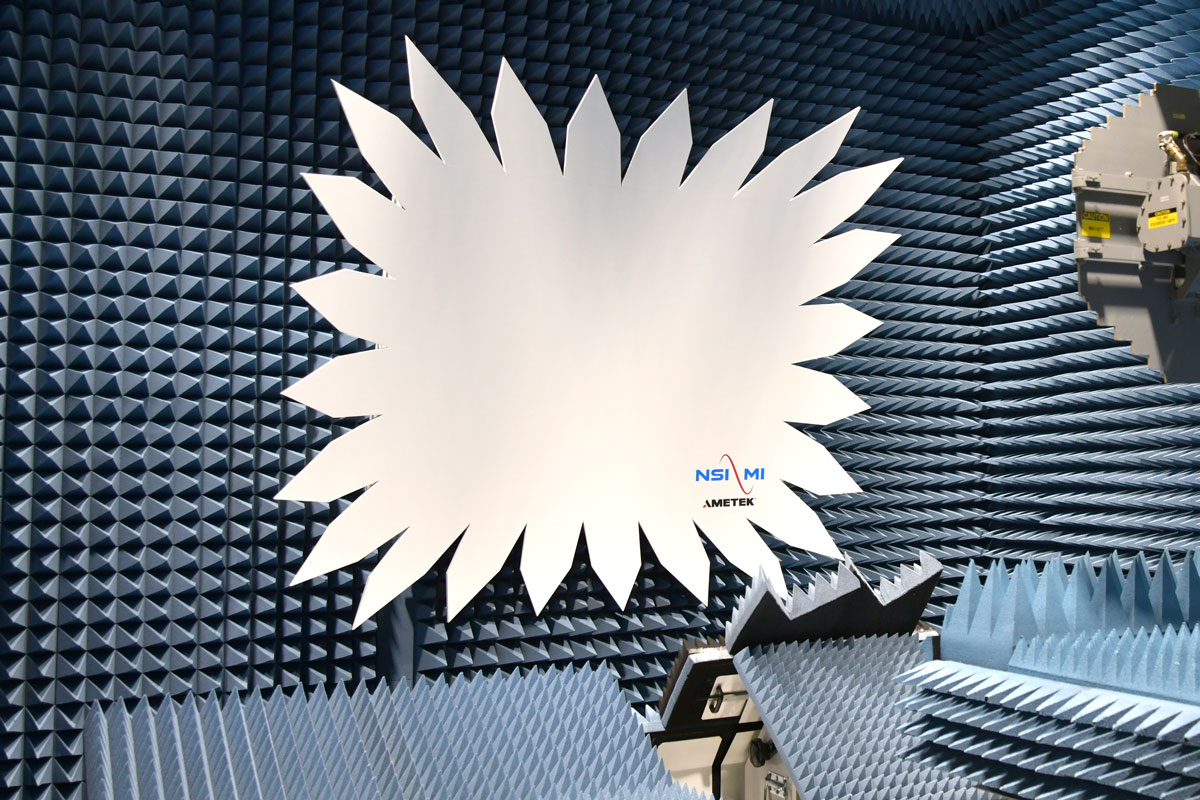

Medium Compact Range Systems

Compact Range Systems

NSI-MI’s Compact Antenna Test Range (CATR) systems deliver true far-field measurements in a compact, controlled environment, eliminating the need for massive outdoor or indoor ranges.
Indoor Far Field

Indoor Far-Field

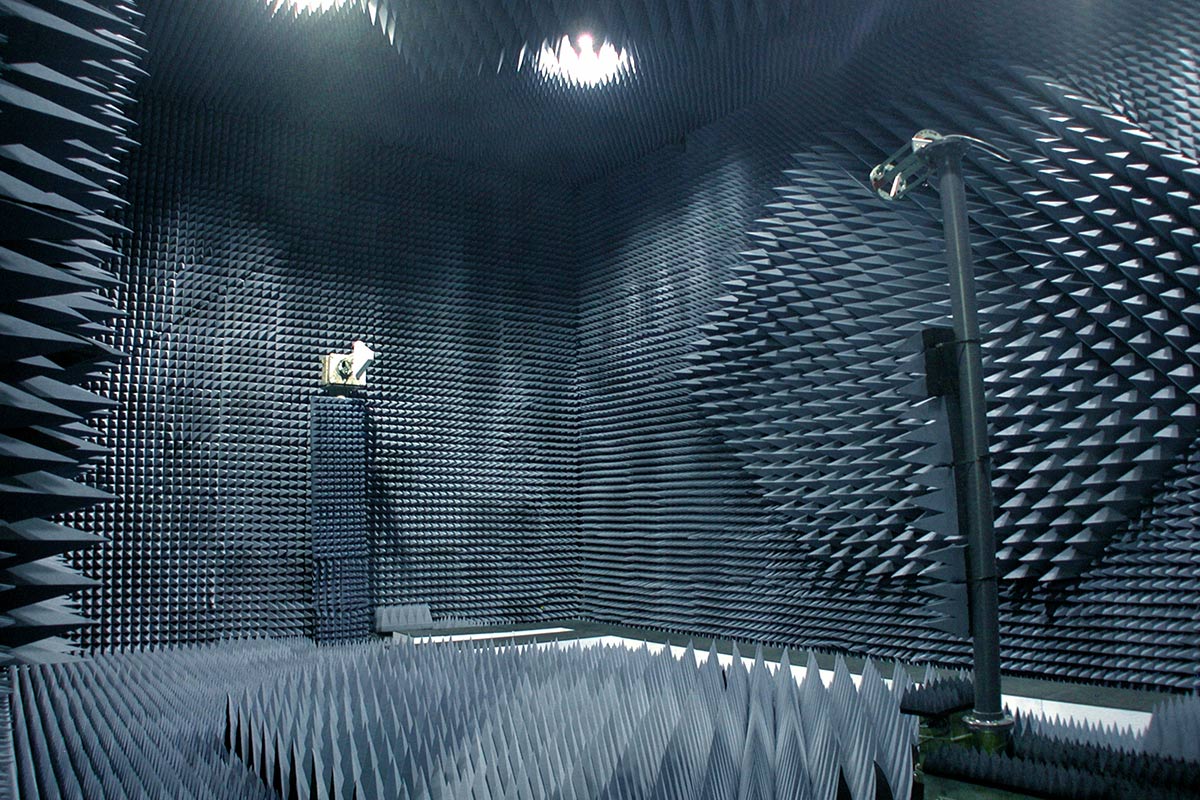

An indoor far-field anechoic chamber has the same basic design criteria as an outdoor range except that the surfaces of the room are covered with RF absorbing material.
Outdoor Farfield

Outdoor Far-Field

Located outdoors on a tower, roof, or platform, large antennas can be accommodated and measured in this type of range.
