MI-3000

This family of products combines to enable highly efficient range operations, data management, data presentation and analysis. NSI-MI has created an open architecture solution designed for use with advanced microwave measurement systems, prior generation NSI-MI Technologies instrumentation or many third-party instruments and position control systems.

Basic Functions

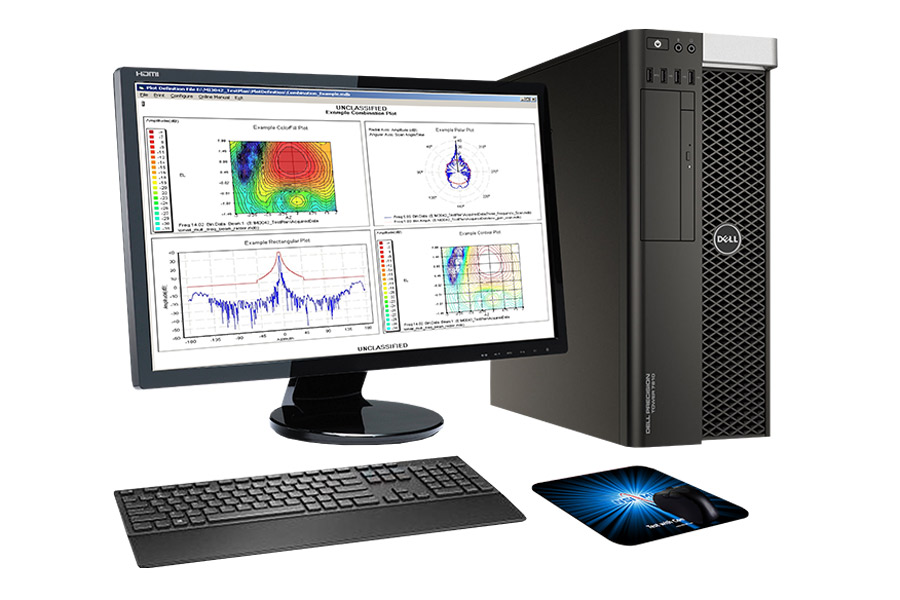

Arena Workstation

MI-3000

This software suite delivers fully automated antenna and microwave measurements.

Add-ons

Planar Near-Field Analysis

Planar Near-Field Analysis

NSI-MI Technologies’ Planar Near-Field Analysis software processes raw near-field data acquired using Arena Data Acquisition software.
Cylindrical Near-Field Analysis

Cylindrical Near-Field Analysis

NSI-MI Technologies’ Cylindrical Near-Field Analysis software seamlessly processes raw near-field data acquired with Arena Data Acquisition software.
Sperical Near-Field Analysis

Spherical Near-Field Analysis

NSI-MI Technologies’ Spherical Near-Field Analysis software accessory seamlessly processes raw near-field data acquired with Arena Data Acquisition software.
Radome Analysis

Radome Analysis

NSI-MI Technologies’ Radome Analysis software package extends the basic acquisition and analysis software with capabilities to perform radome acquisition and analysis.
NSI-MI-RCS

RCS Analysis

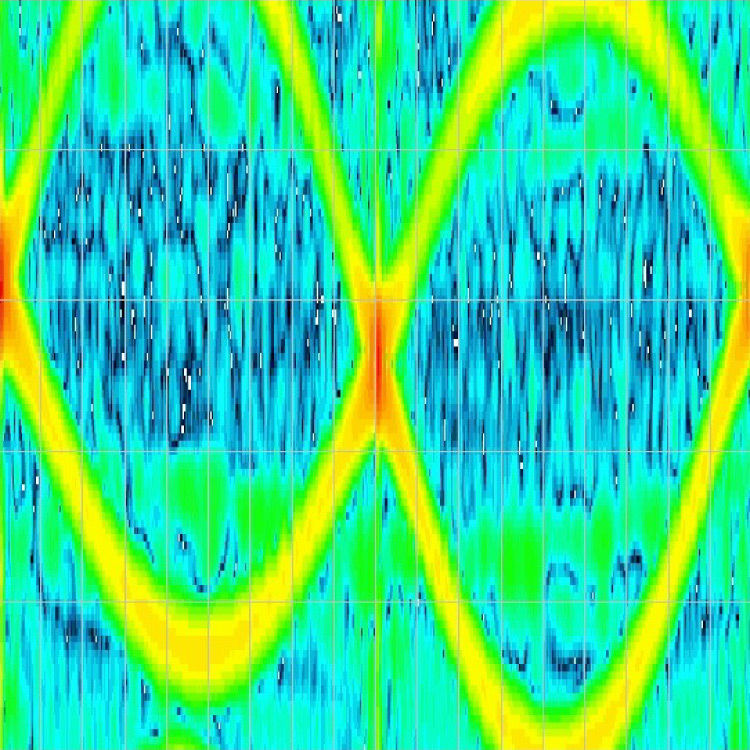

NSI-MI’s RCS Analysis software provides the capability to process data acquired in radar cross section acquisitions.
Range Control Software

Range Control System Software

NSI-MI Technologies’ Range Control System software, in concert with switching hardware, provides the following range management functions for the Arena Data Acquisition and Analysis Software...
EIRP Analysis Arena

EIRP Analysis

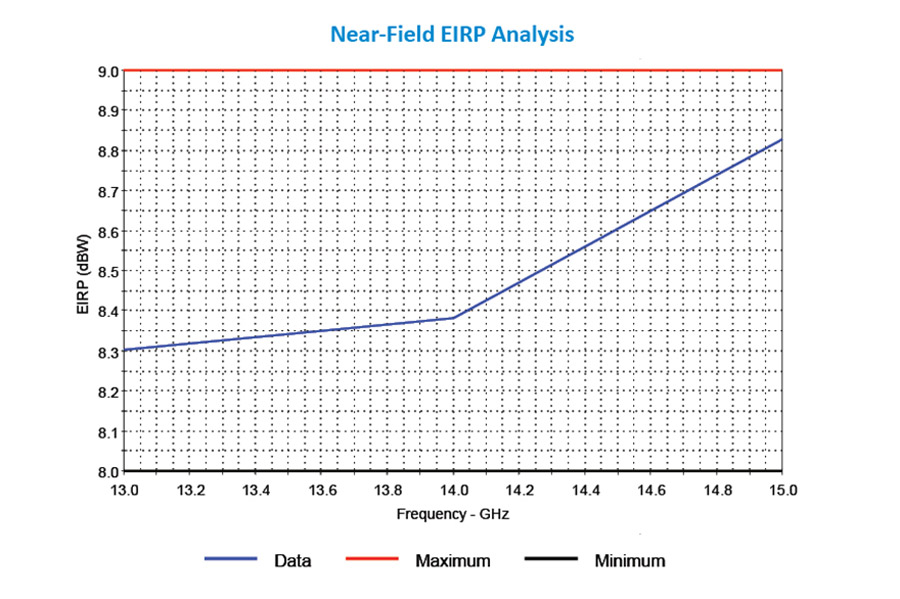

NSI-MI Technologies’ EIRP Analysis software computes the Equivalent Isotropically Radiated Power (EIRP) of a transmitting antenna.
Antenna Gain Calibration Analysis

Antenna Gain Calibration Analysis

NSI-MI Technologies’ Antenna Gain Calibration software computes the gain of one or more unknown antennas using the two-antenna and three-antenna gain measurement techniques.
Ground Plane Data Simulator

Ground Plane Data Simulator

For some measurement applications, such as testing of antennas on automotive vehicles, spherical near-field data is collected over a ground plane.
Antenna Reflectivity Analysis graph

Antenna Reflectivity Analysis

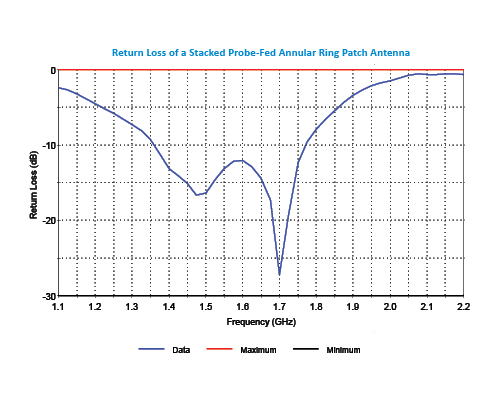

NSI-MI Technologies’ Antenna Reflectivity Analysis software package uses data taken on an antenna with a Reflectometer.
Time Domain Analysis Software

Time Domain Analysis

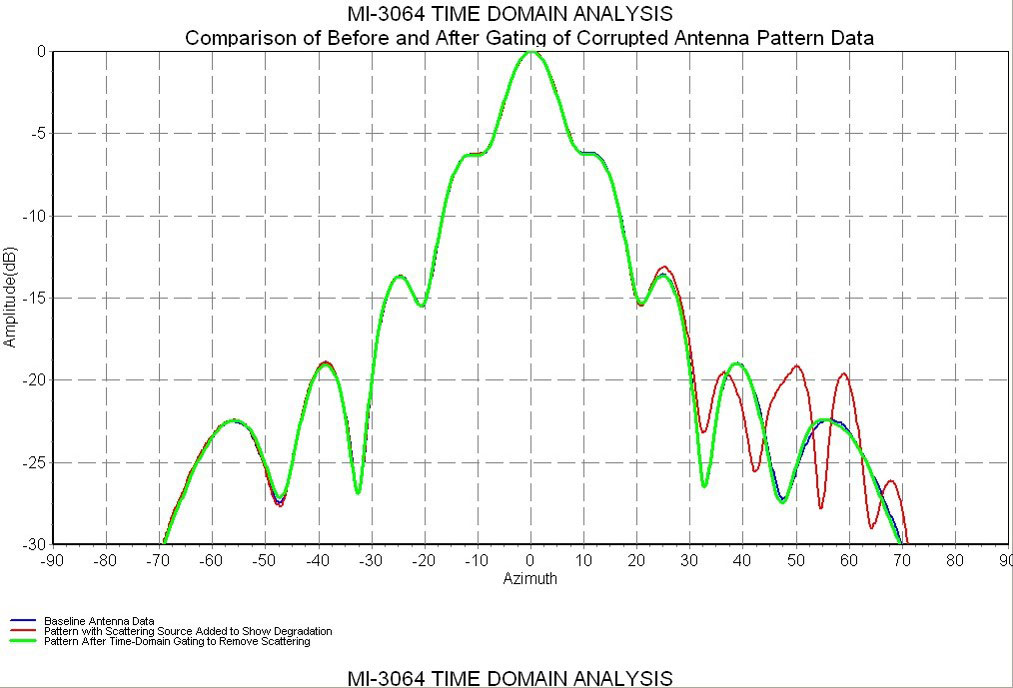

In antenna ranges, extraneous signals can be introduced that contaminate the antenna pattern. In outdoor farfield ranges, for example, this could be a set of ground bounce signals.
Test Zone Analysis

Test Zone Analysis

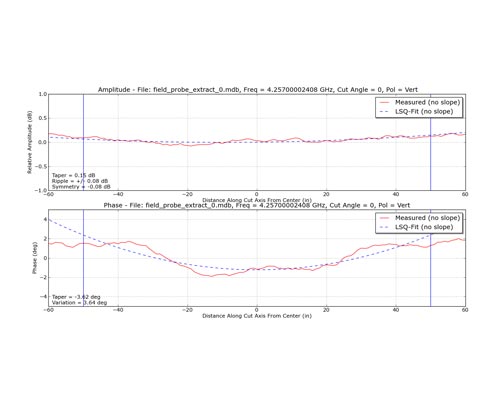

NSI-MI Technologies’ Test Zone Analysis is an integrated software package for analyzing antenna range field probe data.
