Medium Horizontal XY Positioners

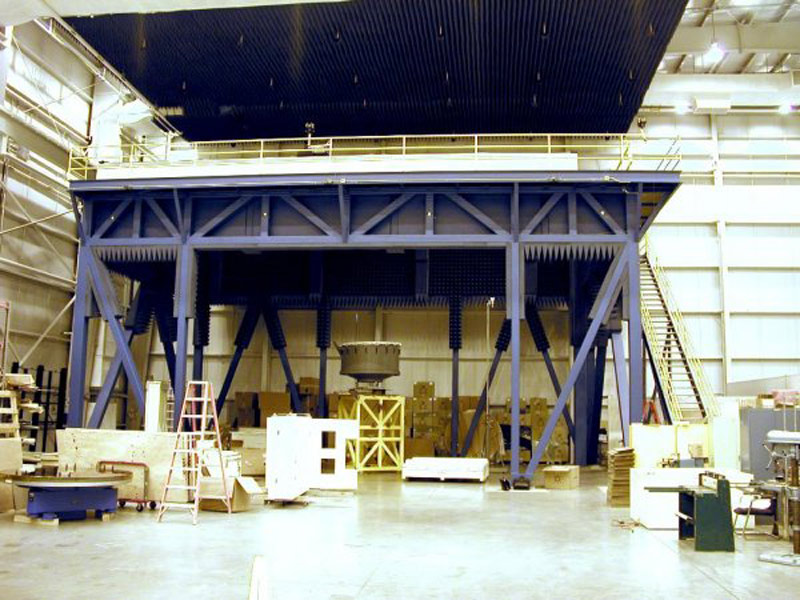

Medium Horizontal XY Positioner
Model: MEC-XYH
Medium horizontal XY positioners are ideal for measurement or inspection of articles in horizontal orientation with minimum measurement dimension in either X or Y greater than 4.5 m (15 ft). The medium horizontal XY positioners are based on a “H” frame design. The positioners are constructed using two reinforced steel X rails that support a rigid yet light weight Y-bridge on precision bearing rails. The high capacity probe stage can accommodate various types probes. Native accuracy of the XY positioner can be enhanced using optional laser based error correction.

Features
  • High planarity and position repeatability
  • 6.7 m x 6.7 m (22 ft x 22 ft) to 12.1 m x 9.1 m (40 ft x 30 ft) scan area
  • Precision rack and pinion drive
  • “H” frame design for high accuracy
  • Ease of assembly and alignment
  • Laser-based enhanced accuracy options available
  • Specifications
  • Applications
  • Standard Components
  • Compatibility
Scan Area
 6.7 x 6.7 m – 12.1 x 9.1 m (22 ft x 22 ft – 40 ft x 30 ft)
Planarity 0.13 – 0.25 mm RMS (0.005 – 0.010 in. RMS)
*Corrected Planarity  0.025 – 0.05 mm RMS ( 0.001 – 0.002 in. RMS)
Resolution 0.025 – 0.05 mm (0.001 – 0.002 in.)
 Position Repeatability 0.05 mm RMS (0.002 in. RMS)
Scan Speed  X: 0.25 m/s (10 in./s)
Y: 0.5 m/s (20 in./s)
Carriage Capacity 45 kg (100 lb)
*Note: Requires optional structure correction software and motorized translation Stage.
  • MEC-XYH Medium Horizontal XY Positioner
  • Instruction manual
  • Interface control drawing (ICD)

Recommended Position Controllers:

  • 4 Axis Intelligent measurement controller (IMC)
  • 4 Axis Antenna range controller (ARC)
  • 8 Axis Motion controller (PMC)
