IPC Local Controller Set

Local Controller Set

Model: ELE-LCU

Features
  • Speed Control/Direction
  • Battery Powered LCU (wireless version)
  • Priority over control from other devices for enhanced safety
  • Dynamic Coarse/Fine Speed
  • Grip to Enable Safety Switch
  • Axis Limits (REV and FWD)
Datasheet Request for Info or Quote
Description

The NSI-MI Local Control Unit Controller Set (ELE-LCU) is designed to provide local operator control at the positioner. The LCU Controller Set consists of a handheld remote Local Control Unit (LCU) and a desktop or rack-mountable Local Control Interface (LCI) unit. The handheld LCU allows the user the flexibility to be at or near the positioner locally controlling an axis. The handheld LCU supports the displaying of axes information for up to four connected controllers (ELE-IPC and ELE-PAC master) including position and/or velocity of a selected axis.

The LCU Controller Set is available in wired or wireless configurations. The ELE-LCU-WI Wired Controller Set uses differential serial (RS-422) interface and the ELE-LCU-WL Wireless Controller Set uses the 915 MHz unlicensed ISM band for RF communications.

Wired Cabling Diagram


Wired Cabling Diagram

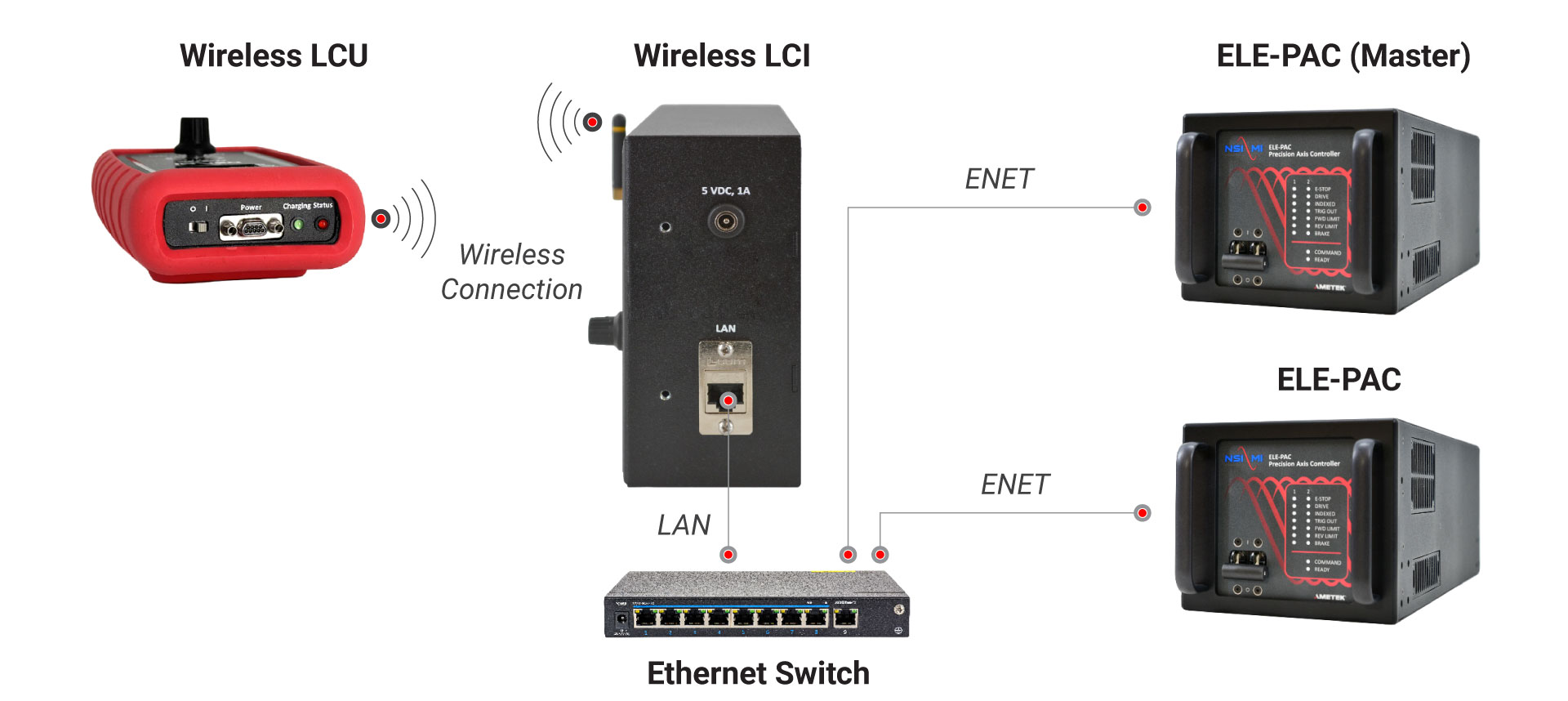

Wireless Connection Diagram


Wireless Connection Diagram
  • Specifications
  • Compatibility
  • Includes
  • Optional
  • Ordering Information
Wired Controller Set

Parameters Wired LCU Controller Set (ELE-LCU-WI)
Serial Communication Standard S-422
Supported Serial Cable Length from LCI to LCU 30 m (100 ft) Max
LCU Size (Height x Width x Depth)
- Main Chassis
- With Panel Connectors		 Handheld Remote
134 x 79 x 41 mm (5.25 x 3.1 x 1.6 in.)
134 x 79 x 54 mm (5.25 x 3.1 x 2.1 in.)
LCI Size (Height x Width x Depth)
- Main Chassis
- With Panel Connectors		 3U Desktop or Rack Mountable
134 x 194 x 64 mm (5.25 x 7.6 x 2.5 in.)
-134 x 201 x 79 mm (5.25 x 7.9 x 3.1 in.)
LCI DC Power 5 VDC, 1 A Max
Environmental 0° to 40° C


Wireless Controller Set

Parameters Wireless LCU Controller Set (ELE-LCU-WL)
RF Frequency Range1 902–928 MHz (ISM band)
No. of RF Frequency Options/strong> 16
LCU Size (Height x Width x Depth)
- Main Chassis
- With Panel Connectors		 Handheld Remote
134 x 79 x 41 mm (5.25 x 3.1 x 1.6 in.)
134 x 79 x 54 mm (5.25 x 3.1 x 2.1 in.)
LCI Size (Height x Width x Depth)
- Main Chassis
- With Panel Connectors		 3U Desktop or Rack Mountable
134 x 194 x 64 mm (5.25 x 7.6 x 2.5 in.)
-134 x 201 x 79 mm (5.25 x 7.9 x 3.1 in.)
LCI DC Power 5 VDC, 1 A Max
Environmental 0° to 40° C
1RF Frequency is set to 915.8 MHz by default. It can be changed by using an internal rotary switch.
ELE-PAC Precision Axis Controller
ELE-IPC Integrated Position Controller
  • Local Control Interface (LCI) unit
  • Local Control Unit (LCU), handheld remote
  • LCU-LCI Cable (Wired version only)
  • LCU Charger (Wireless version only)
  • Power Adapter for LCI
  • User Manual
  • LCI Rack Mounting Kit
  • Spare LCU-LCI cable

Model Number Description
ELE-LCU-WI Wired Local Control Set
ELE-LCU-WL Wireless Local Control Set
LCU-RMK Rack Mount Kit for Local Control Interface (LCI)
LCU-WI-CBL-25 LCU-LCI Cable, 25 ft (7.6 m)
LCU-WI-CBL-50 LCU-LCI Cable, 50 ft (15.2 m)
LCU-WI-CBL-75 LCU-LCI Cable, 75 ft (22.9 m)
LCU-WI-CBL-100 LCU-LCI Cable, 100 ft (30.5 m)
