Spherical Near-Field Measurement System 1.3 meters

Spherical Near-Field Measurement System 1.3 meters

Model: SNF-RAZ-1.3

Features
  • 370 MHz to mmWave measurements
  • Full spherical characterization
  • Automatic scan setup
  • Powerful plotting and antenna analysis software
  • Far-field, near-field, and holographic patterns
Datasheet Request for Info or Quote

This is a pre-configured 3-axis spherical near-field measurement system ideal for measuring low to medium gain antennas from 0.37 to 110.0 GHz. The system is constructed of high strength aluminum and can support antenna-under-test (AUT) payloads of up to 75 kg (165 lb). The independent probe stand and AUT positioner are easy to assemble, align and can be quickly dismantled for transport or storage.

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons
Positioning System
Positioner Spherical - Phi over Theta (Roll over Az) AUT Positioner with Probe Stand Pol Positioner
Max AUT Diameter 1.3 m (51.1 in.)
Max Torque Load 84 Nm (62 ft-lb)
Max AUT Weight 75 kg (165 lb), Bending Moment: 168 Nm (124 ft-lb)
Max Probe Weight 19 kg (42 lb) (WR975)
Repeatability 0.03° RMS Phi/Theta/Pol
Resolution 0.0125° Phi/Theta/Pol
Scan Speed 10/10/40°/s Phi/Theta/Pol
Position Controller ELE-IMC (Intelligent Measurement Controller)
Motor Cables Quick-connect 12.2 m (40 ft)
Slip Ring 24 Contact, 220V-10A each (Theta)
PC Workstation Computer with LCD Monitor
Power
 800W, 100-240 VAC switchable, 50/60 Hz
Software NSI2000
Absorber 12.7 cm (5 in.) pyramidal
Frequency Range 0.37–110 GHz
RF System
Scanner RF Cables
 20, 40, or 50 GHz, 3 m (10 ft) L-Bracket & Probe Stand
Rotary Joint
 26.5, 40, or 50 GHz (Phi, Theta, Pol)
Range RF Cables
 20, 40, or 50 GHz 7.6 m (25 ft) to Theta Stand, 3 m (10 ft) to Probe Stand
RF Receiver
 NSI-MI VFA, Keysight PNA, Rohde & Schwarz ZVA
Weights and Dimensions (Scanner Only)
Installed Envelope W x L x H
 2.4 m (94 in.) x Variable Depth x 2.7 m (106 in.)
Installed Weight
 327 kg (722 lb) with full counterweight set
Crated Dimensions W x L x H
 2 crates up to 2.8 x 1.2 x 1.2 m (108 x 48 x 48 in.)
1 D container 1.5 x 1.1 x 1.2 m (58 x 42 x 45 in.)
  • Cellular Base Stations
  • Dipole Arrays
  • General Broad Pattern Antennas

The SNF-RAZ-1.3 supports NSI-MI, Keysight, and Rohde & Schwarz RF receivers and is capable of measuring amplitude and phase patterns from UHF band to mmWave. The system includes a software workstation preloaded with NSI2000 Antenna Measurement Software and Windows® and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna’s performance. A single data set provides information on antenna gain, side lobe structure, beam pointing and cross polarization.

Each NSI-MI Pre-Configured System includes the following:
  • Positioning Subsystem including Mechanical Scanner with Absorber Kit and Motion Control System
  • State-of-the-art RF Subsystem
  • Mounting Hardware Installation Kit
  • Full Standard System Interface and Operations Documentation
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices
  • NSI-MI or customer supplied RF receiver connection





Positioning System
  • Multi-axis Mechanical Positioner
  • Absorber Kit
  • Motion Controller
  • Control and Motor Cabling
  • Cable Management
  • NSI2000 Software
  • PC

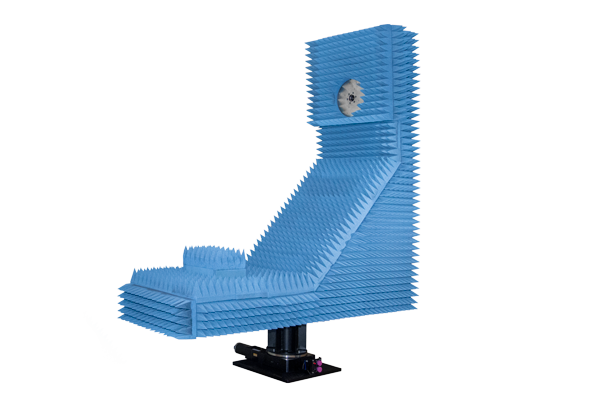

NSI-MI SNF-RAZ-1.3




RF Subsystem
  • Scanner and Range RF Cables
  • Rotary Joints
  • RF Components and Devices (as needed)
  • Software Device Drivers
  • Data Acquisition, Processing and Plotting Software
NSI-MI RF System Rack




Site Deliverables
  • Product Guide and Interface Control Documents
  • Hardware, System and Software Manuals
  • Anchoring Kit
  • Shipping Crates

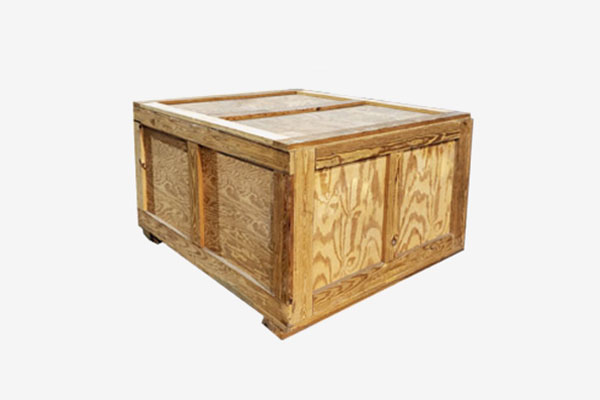

Shipping Crate
Our Pre-Configured Systems are designed to operate with a wide range of popular accessories and support services to meet budget and test needs. These include:
  • Full range of Probes and Standard Gain Horns
  • Additional software to enhance productivity
  • AUT supports, stands and other accessories
  • On-site installation, training and verification by NSI-MI experts
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices





RF Options
  • RF Frequency Options: 20, 40, 50 GHz
  • RF Receiver Options: NSI-MI or Customer Supplied
RF Options




Antenna Accessories
  • Waveguide Probe Assemblies
  • Standard Gain Horn Assemblies
  • Broadband Probes Assemblies
Antenna Accessories




mmWave RF Upgrade Options
  • mmWave Band: 50–75 GHz module and Probe-SGH set
  • mmWave Band: 60–90 GHz module and Probe-SGH set
  • mmWave Band: 75–110 GHz module and Probe-SGH set
mmWave RF Upgrade Options




Software Add-ons
  • Additional NSI2000 License
  • Professional Upgrade
  • Far-Field
  • MARS
Software Add-ons





System Accessories
  • Floor Slides

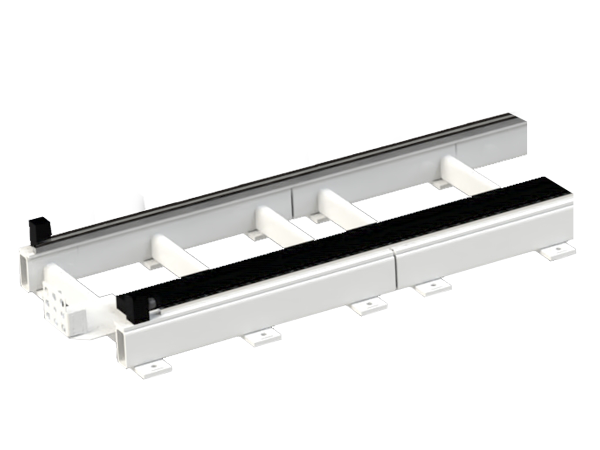

Floor Slides




Site Services
  • Installation
  • Training
Site Z-Planarity Enhancement
