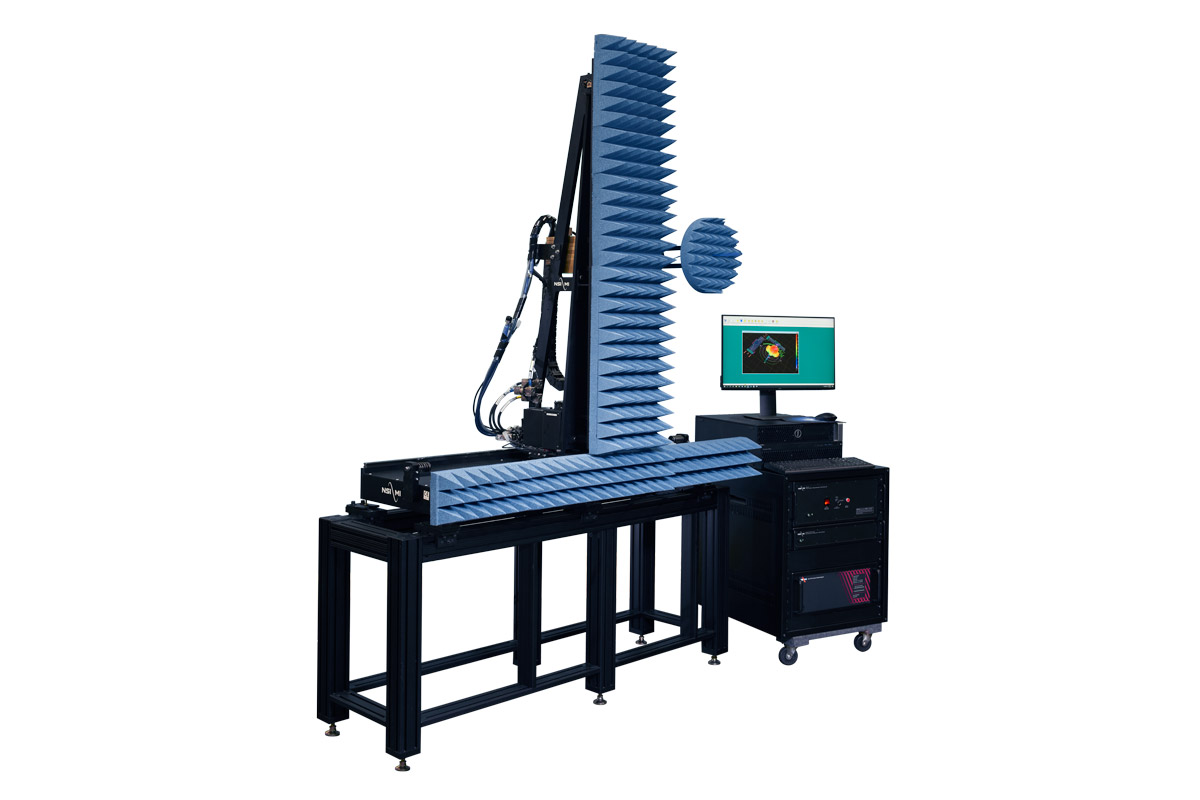

Planar Near-Field Measurement System 0.9 x 0.9 meters

Planar Near-Field Measurement System 0.9 x 0.9 meters

Model: PNF-XYV-0.9x0.9

Features
  • 2.6 GHz to mmWave
  • Well-suited for higher gain antennas (> 15 dBi)
  • Stationary antenna-under-test
  • Automatic scan set-up
  • High speed bi-directional scanning
  • Powerful plotting and antenna analysis software
  • Far-field, near-field, and holographic patterns
Datasheet Request for Info or Quote

The PNF-XYV-0.9x0.9 is a pre-configured 4-axis planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 0.75 m (2.5 ft) from 2.6 GHz to mmWave. The system is constructed of high strength aluminum and can support probe payloads of up to 6 kg (13 lb). This simple design is easy to assemble and align, accurate, and can be quickly dismantled for relocation or storage.

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons
Positioning System
Positioner Vertical Planar - Belt Driven X and Y with Probe Z and Pol Stages
Scan Area
 0.9 x 0.9 m (3 x 3 ft)
Probe Capacity
 6 kg (13 lb)
Planarity
 0.075 mm (0.003 in.) RMS
0.025 mm (0.001 in.) RMS with on-site re-cal
Repeatability
 X, Y: 0.05 mm (0.002 in.) RMS
Z: 0.025 mm (0.001 in.) RMS
Pol: 0.03° RMS
Resolution X, Y: 0.05 mm (0.002 in.)
Z: 0.025 mm (0.001 in.)
Pol: 0.0125°
Scan Speed X,Y
 X, Y: 0.38 m/s (15 in./sec)
Position Controller
 ELE-IMC (Intelligent Measurement Controller)
Motor Cables
 Quick-connect 9.1 m (30 ft)
PC Workstation
 Computer with LCD Monitor
Power
 500W, 100–240 VAC switchable, 50/60 Hz
Software
 NSI2000
Absorber
 12.7 cm (5 in.) pyramidal
Frequency Range
 2.6–110 GHz
RF System
Scanner RF Cables
 20, 40, or 50 GHz, 3.6 m (12 ft) X/Y Cabletrack
Rotary Joint
 26.5, 40, or 50 GHz (Pol)
Range RF Cables
 20, 40, or 50 GHz 6.1 m (20 ft) to Scanner Base and AUT
RF Receiver
 NSI-MI VFA, Keysight PNA, Rohde & Schwarz ZVA
Weights and Dimensions (Scanner Only)
Installed Envelope W x L x H
 1.6 x 0.8 x 1.5 m (65 x 30 x 60 in.)
Installed Weight
 94 kg (207 lb)
Crated Dimensions W x L x H
 2 crates up to 1.7 x 0.7 x 0.7 m (66 x 28 x 28 in.)
1 D container 1.5 x 1.1 x 1.0 m (58 x 42 x 38 in.)
  • Point to Point Communication Antennas
  • Phased-Arrays
  • Reflector Antennas
  • Radar Antennas

The PNF-XYV-0.9x0.9 supports NSI-MI, Keysight, and Rohde & Schwarz RF receivers and is capable of measuring amplitude and phase patterns from S-band to mmWave. The system includes a software workstation preloaded with NSI2000 Antenna Measurement Software and Windows® and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna’s performance. A single data set provides information on antenna gain, side lobe structure, beam pointing and cross polarization.

Each NSI-MI Pre-Configured System includes the following:
  • Positioning Subsystem including Mechanical Scanner with Absorber Kit and Motion Control System
  • State-of-the-art RF Subsystem
  • Mounting Hardware Installation Kit
  • Full Standard System Interface and Operations Documentation
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices
  • NSI-MI or customer supplied RF receiver connection






Positioning System
  • Multi-axis Mechanical Positioner
  • Absorber Kit
  • Motion Controller
  • Control and Motor Cabling
  • Cable Management
  • NSI2000 Software
  • PC
Pre-Cofigured-PNF-XYV-09x09





RF Subsystem
  • Scanner and Range RF Cables
  • Rotary Joints
  • RF Components and Devices (as needed)
  • Software Device Drivers
  • Data Acquisition, Processing and Plotting Software
NSI-MI RF System Rack





Site Deliverables
  • Product Guide and Interface Control Documents
  • Hardware, System and Software Manuals
  • Anchoring Kit
  • Shipping Crates

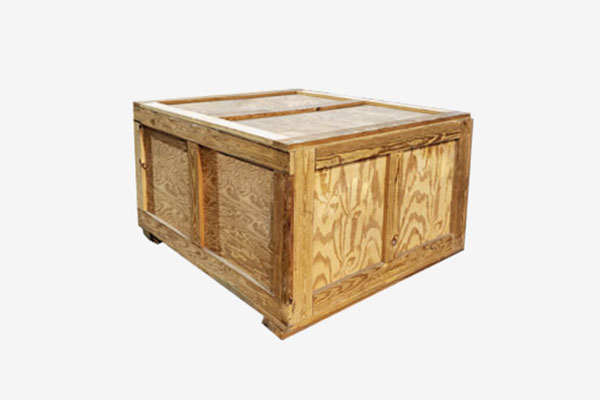

Shipping Crate
Our Pre-Configured Systems are designed to operate with a wide range of popular accessories and support services to meet budget and test needs. These include:
  • Full range of Probes and Standard Gain Horns
  • Additional software to enhance productivity
  • AUT supports, stands and other accessories
  • On-site installation, training and verification by NSI-MI experts
  • Interface Kits to easily integrate a wide variety of common RF equipment, antennas and test devices





RF Options
  • RF Frequency Options: 20, 40, 50 GHz
  • RF Receiver Options: NSI-MI or Customer Supplied
RF Options




Antenna Accessories
  • Waveguide Probe Assemblies
  • Standard Gain Horn Assemblies
  • Broadband Probes Assemblies
Antenna Accessories




mmWave RF Upgrade Options
  • mmWave Band: 50–75 GHz module and Probe-SGH set
  • mmWave Band: 60–90 GHz module and Probe-SGH set
  • mmWave Band: 75–110 GHz module and Probe-SGH set
mmWave RF Upgrade Options




Software Add-ons
  • Additional NSI2000 License
  • Professional Upgrade
  • MTI
Software Add-ons




System Accessories
  • Scanner Stand
  • AUT Stand

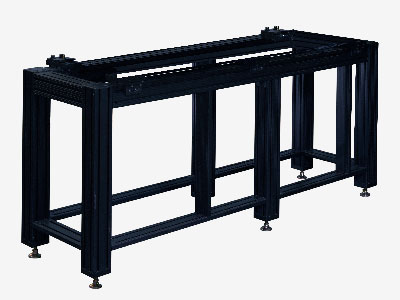

Scanner Stand




Site Services
  • Site Z-Planarity Enhancement - 0.025 mm (0.001 in.) RMS with on-site re-cal
  • Installation
  • Training
Site Z-Planarity Enhancement
