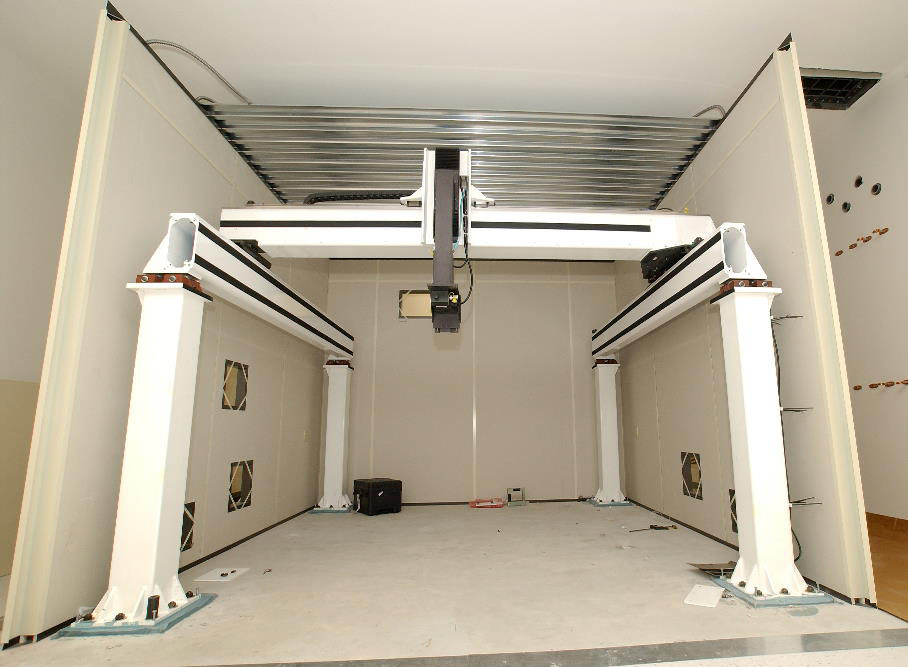

Small Horizontal Planar Scanner System

Small Horizontal Planar Systems

Features
  • High accuracy
  • 1.8 m x 1.8 m (6 ft x 6 ft) to 4.5 m x 4.5 m (15 ft x 15 ft) scan area
  • Precision rack and pinion drive
  • L-band to mmWave measurements
  • Inverted “T” frame design for high accuracy
  • Far-field, near-field, and holographic patterns
  • For space and radar applications
Request for Info or Quote

The Horizontal Planar Systems by NSI-MI are equipped with cutting-edge technology to provide unparalleled scanning capabilities. Our horizontal scanners feature a next generation, precision closed-loop servo drive system, ensuring precise and accurate scanning results. The highly engineered structure of our scanners further enhances their performance, allowing for seamless and efficient scanning operations. With the Horizontal Planar Systems, you can expect superior quality and reliability for all your scanning needs. Experience the power of our horizontal planar scanner technology today!

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons

Construction: Steel X beams supporting steel Y bridge
Drive System Precision Synchronized Stepper Motors
Scan Area 1.8 m x 1.8 m (6'x 6') to 4.5 m x 4.5 m (15'x 15')
Corrected Planarity 0.025 mm (<0.001") RMS to 0.050 mm (<0.002") RMS
Resolution (X,Y) X: 0.025 mm (0.001")
Y: 0.050 mm (0.002")
Position Repeatability 0.05 mm (0.002”) RMS
Scan Speed (X-Y) X: 0.25 m/s (10 in./s)
Y: 0.50 m/s (20 in./s)
Probe Carriage Capacity 38 kg (85 lb )
System Controller NSI-MI controller with serial and parallel I/O interfaces
Measurement Workstation Measurement workstation computer with large LCD monitor.
Stepper Motor Power Amplifier EIA 19" rack mount, (7" high x 14" deep)
Motor Cables 12 m (40') with quick-connect terminations
Scanner Absorber X-Y absorber kit, 8" pyramidal under bridge, 5" wedge absorber on X rails
Probe Optional
Probe Mount Angle Bracket - allows mounting probe in "V" or "H" orientation
RF Cables 20 GHz RF Cables
Supported RF Devices NSI-MI Receiver Subsystem or selection of Keysight, Rohde & Schwarz and Anritsu VNA's
Power 100-240 VAC switchable; 50/60 Hz, 800 watts

Dimensions
Scanner Width 3.5 m (11.6') to 7 m (23')
Scanner Depth 3.5 m (11.6') to 7 m (23')
Scanner Height Variable
System Weight 1,620 kg (3,600 lb)
Room Width 3.7 m (12') to 7.6 m (27')
Room Depth 3.7 m (12') to 7.6 m (27')
Room Height 3.0 m (10') to Variable

The system interfaces with a wide variety of RF equipment and is capable of measuring amplitude and phase patterns from L-band to mmWave bands. The system includes NSI-MI Antenna Measurement Software. The system software runs on a Windows based measurement workstation and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna's beam pointing and cross polarization. The model 500H-6x6 can be supplied with a variety of options including an AUT laser alignment system.

  • X-Y stepper motor driven scanner
  • Motor cable set
  • Controller
  • PC based measurement workstation
  • Motor drive electronics
  • Antenna measurement software
  • Installation tool kit
  • System documentation and operation manual
  • Opt 100 - 220VAC 50 Hz Operation
  • Opt 101 - European Version
  • Probe Translation Stage, 100 mm Travel
  • Probe Roll Stage 100 mm with 26.5 GHz rotary joint
  • Motion Tracking Interferometer (MTI) Software
