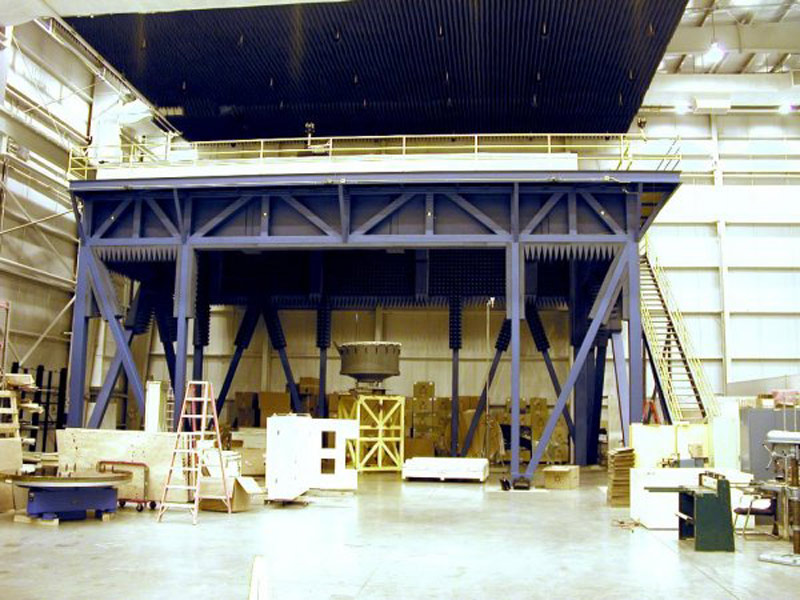

Medium Horizontal Planar Scanner System

Medium Horizontal Planar Systems

Features
  • High accuracy
  • 6.7 m x 6.7 m (22 ft x 22 ft) to 12.1 m x 9.1 m (40 ft x 30 ft) scan area
  • Precision rack and pinion drive
  • L-band to mmWave measurements
  • Far-field, near-field, and holographic patterns
  • For space-based applications
Request for Info or Quote

Medium horizontal planar scanner systems are an ideal systems for measuring large aperture antennas with medium to high gain (>15 dBi) making them suitable for testing larger arrays or reflector antennas that require a zenith orientation for testing. Based on an "H" frame design, they constructed using two reinforced steel X rails that support a stiff yet lightweight Y-bridge on precision bearing rails. The high capacity probe stage can accommodate various probes from L- to mmWave bands including any necessary RF equipment, probe extensions, and optional roll and z-stages.

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons

Construction: Steel X beams supporting steel Y bridge
Drive System Precision Stepper Motors; Rack and Pinion
Scan Area 6.7 m x 6.7 m (22' x 22') to 12.1 m x 9.1 m (40' x 30')
Corrected Planarity 0.050 mm (<0.002") RMS
Resolution (X,Y) X: 0.025 mm (0.001")
Y: 0.050 mm (0.002")
Position Repeatability 0.05 mm (0.002”) RMS
Scan Speed (X-Y) X: 0.25 m/s (10 in./s)
Y: 0.50 m/s (20 in./s)
Probe Carriage Capacity 45 kg (100 lb)
System Controller NSI-MI controller with serial and parallel I/O interfaces
Measurement Workstation Measurement workstation computer with large LCD monitor.
Stepper Motor Power Amplifier EIA 19" rack mount, (7" high x 14" deep)
Motor Cables 12 m (40') with quick-connect terminations
Scanner Absorber X-Y absorber kit, 18" pyramidal under bridge, 5" wedge absorber on X rails
Probe Optional
RF Cables 20 GHz RF Cables
Supported RF Devices NSI-MI Receiver Subsystem or selection of Keysight, Rohde & Schwarz and Anritsu VNA's
Power 100-240 VAC switchable; 50/60 Hz, 800 watts

Dimensions
Width: 9.1 m (357") to 10,697.0 m (421.1")
Depth 8.7 m (341") to 9,923.0 m (390.7")
Height 10.4 m (408") to 7,521.0 m (296.1")
Weight 4,077 kg (9,000 lb) to 10,070 kg (22,200 lb)

The system interfaces with a wide variety of RF equipment and is capable of measuring amplitude and phase patterns from L-band to mmWave bands. The system includes NSI-MI Antenna Measurement Software. The system software runs on an Intel based measurement workstation and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna's beam pointing and cross polarization. The scanners can be supplied with a variety of options and can be upgraded to allow for vertical planar measurements to expand system capabilities.

  • X-Y stepper motor driven scanner with dual steel X-beams
  • Steel Y-bridge
  • Probe carriage
  • Motor cable set
  • Controller
  • PC based measurement workstation
  • Motor drive electronics
  • Antenna measurement software
  • Installation tool kit
  • System documentation and operation manual
  • Opt 100 - 220VAC 50 Hz Operation
  • Opt 101 - European Version
  • Probe Translation Stage, 100 mm (4") Travel
  • Probe Roll Stage 100 mm (4") with 26.5 GHz rotary joint
  • Motion Tracking Interferometer (MTI) Software
