Large Cylindrical Near-Field Scanner Systems

Large Cylindrical Near-Field Scanner Systems

Features
  • 360° x 5.5 m (18 ft) to 16.0 m (52 ft) cylindrical scan area
  • High accuracy y-linearity 0.10 mm (<0.004”) RMS
  • Precision rack and pinion drive
  • L-band to mmWave measurements
  • 2,636 kg (5,800 lb) load capacity azimuth positioner
  • Far-field, near-field, and holographic patterns
Request for Info or Quote
Precision Measurement Solution for Antennas up to 15.8 m Aperture

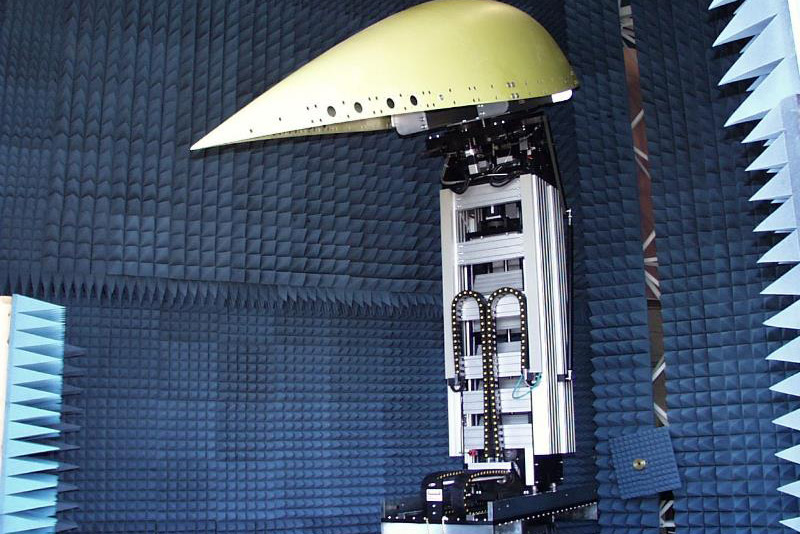

Large cylindrical near-field measurement systems are ideal for measuring broad beam (azimuth) antennas with apertures less than 15.8 m (52 ft) making them ideal for testing stacked linear arrays, cellular, and PCS antennas as well as higher frequency antennas with larger apertures. The scanners consist of a vertical probe tower with up to a 16.0 m (52 ft) travel, high capacity stepper motor based-azimuth positioner, control computer, software and cabling. The high capacity probe carriage can accommodate probes as large as the WR1500 including optional roll and translation stages.

  • Specifications
  • Applications
  • Capabilities
  • Standard Options
  • Available Add-Ons

Construction: Steel tower and base; separate azimuth stage
Drive System Precision Stepper Motor; Rack and pinion
Scan Area 360° in azimuth; 5.5 m (18’) to 16.0 m (52') Y Cylindrical Scan Area
Y-axis Linearity Uncorrected 0.10 mm (<0.004”) RMS
Resolution Y: 0.0015 azimuth; 0.05 mm (0.002”) RMS
Position Repeatability Y: 0.03° azimuth; 0.05 mm (0.002") RMS
Scan Speed Y: 30°/s azimuth; 0.2 m/s (8 in./s) to 0.25 m/s (10 in./s)
Azimuth Stage Axial Load 4,535 kg (10,000 lb) max
Probe Carriage Capacity 56.8 kg (125 lb) to 80 kg (175 lb) maximum recommended, WR1500
System Controller NSI-MI controller with serial and parallel I/O interfaces
Measurement Workstation Measurement workstation computer with large LCD monitor
Stepper Motor Power Amplifier EIA 19" rack mount. (7" high x 14" deep)
Motor Cables Quick-connect; 12 m (40')
Scanner Absorber Absorber Kit (12" pyramidal cone)
Probe Optional
Probe Absorber Pyramidal Cone Absorber (8”)
Probe Mount Angle Bracket - allows mounting probe in “V” or “H” orientation
RF Cables Qty. 2 - Flexible 9.1 m (30’) with SMA (m-m) coaxial terminations; DC-18 GHz
Rotary Joint Qty 1 DC-18 GHz on Az stage
Supported RF Devices NSI-MI Receiver Subsystem or selection of Keysight, Rohde & Schwarz and Anritsu VNA's (contact NSI-MI for a complete list)
Power 100-120/200-240 V AC, 50/60 Hz, 500 watts

Dimensions


Width 1.8 m (69") to 3 m (120")
Depth 2.9 m (114") to 5.7 m (224")
Height 6.9 m (270") to 17.8 m (700")
System Weight 1,905 kg (4,200 lb) to 5,000 kg (11,000 lb) approx.

The system interfaces with a wide variety of RF equipment and is capable of measuring amplitude and phase patterns from L-band to mmWave Bands. The system includes Antenna Measurement Software.

The system software runs on an Intel based measurement workstation and provides automatic setup of scans based on measurement parameters and desired output. Measured data can be processed for far-field or holographic patterns yielding complete characterization of the antenna’s performance. A single data set provides information on antenna gain, side lobe structure, beam pointing and cross polarization.

The systems can be supplied with a variety of options to enhance system performance.

  • Azimuth and Y stepper motor driven scanner
  • 12 m (40') motor cable set
  • Control processor
  • Motor drive electronics
  • Scanner absorber kit
  • Antenna measurement software
  • X-band probe kit with probe absorber and mounting bracket
  • RF cables
  • Installation tool kit
  • System documentation and operation manual
  • Opt 100 220VAC 50 Hz Operation
  • Opt 101 European Version - CE Mark
  • Opt 102 Delete X-band Probe
  • Opt 103 Additional Operation and Maintenance Manual
  • Spherical Upgrade
  • Probe Roll Stage
  • Probe Z-Stage, 4” translation
  • On-Site Installation and Training
