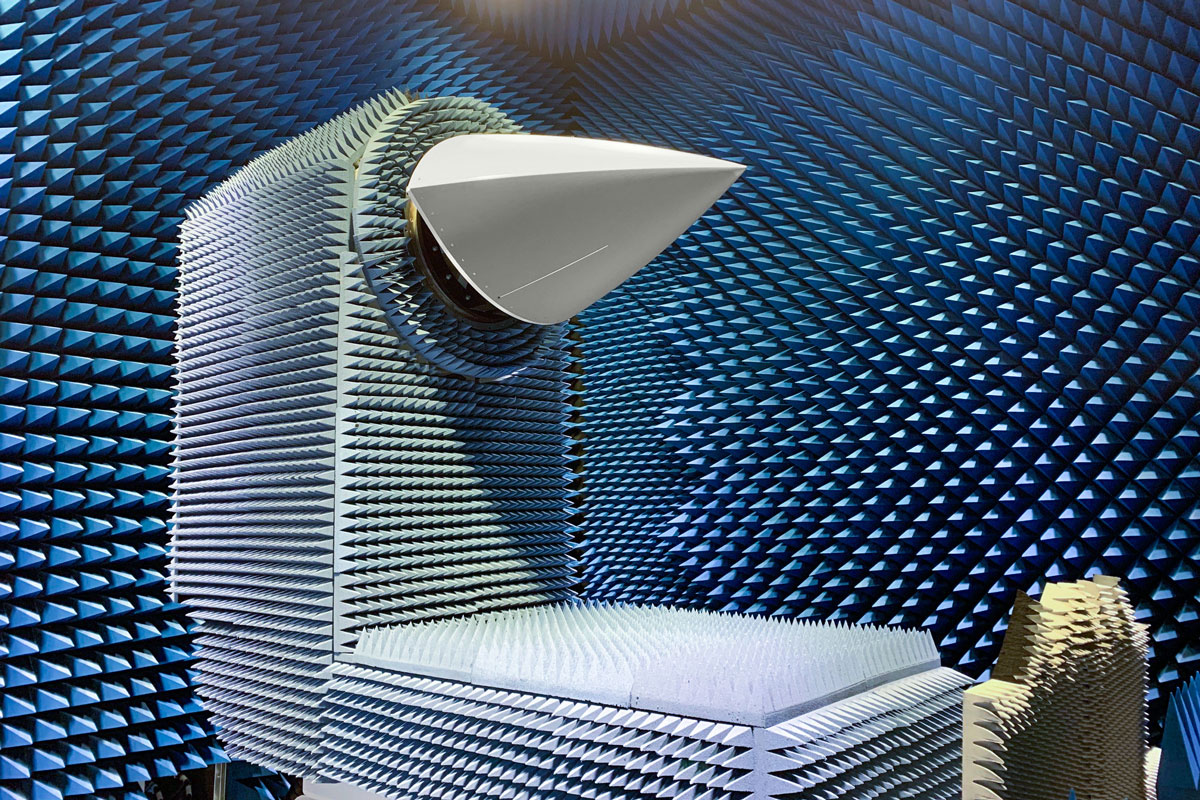

Military Radomes

Hardware-in-the-Loop Testing

Whether you prefer the electronically calibrated antenna or null search BSE test method, when it comes to testing the accuracy of military radomes, we have you covered. Choose NSI-MI for reliable and accurate testing of your military radomes. Our features and capabilities guarantee precise measurements and superior performance.


Features
  • Supports either electronically-calibrated antenna or null search boresight sight error test method
  • Beam deflection error and transmission efficiency measurements at multiple frequencies are accomplished in one radome scan without manual intervention
  • Using the calibrated antenna approach, typical test time for simultaneous beam deflection error and transmission efficiency is approximately one hour
  • Antenna is oriented within radome as it would be on aircraft
  • Integrated Position Controller's (link this to the IPC page) coordinated motion used to ensure that the radome/antenna polarization relationship is the same as that seen in use on the aircraft, and so that the feed polarization is coordinated with the AUT as needed to maintain polarization alignment
  • Data post-processing and reporting in test positioner roll/azimuth coordinates or aircraft elevation/azimuth coordinates
  • Innovative cable management design essentially eliminates moving cables LO power to signal and reference mixers automatically varied with frequency to continually optimize linearity of the receiver
  • Full suite of pattern distortion data collection and analysis

Datasheet
  • Applications
  • Capabilities
  • Components
  • Available Add-Ons
  • Transmission efficiency (TE): Accuracy +/- 0.02 dB
  • Beam deflection error (BDE): Accuracy +/- 0.1 mrad
  • Pattern distortion: +/- 0.5 dB
  • Reflectivity: Accuracy +/-0
  • Positioner structure specifically designed for torsional and bending stiffness
  • Pre-loaded bearings with very low radial and axial run out
  • Zero backlash through use of direct drive and torque bias
  • Positioner error correction if needed
  • Optional time domain analysis software to mitigate stray signals
  • Optional automated quarter wave movement of feed to average-out standing wave errors

Typically, military radome test systems are custom engineered solutions developed to radome specific test requirements. NSI-MI makes maximum utilization of standard product building blocks:

  • Transmission efficiency (TE): Accuracy +/- 0.02 dB
  • Beam deflection error (BDE): Accuracy +/- 0.1 mrad
  • Pattern distortion: +/- 0.5 dB
  • Reflectivity: Accuracy +/-0
  • Positioner structure specifically designed for torsional and bending stiffness
  • Pre-loaded bearings with very low radial and axial run out
  • Zero backlash through use of direct drive and torque bias
  • Positioner error correction if needed
  • Optional time domain analysis software to mitigate stray signals
  • Optional automated quarter wave movement of feed to average-out standing wave errors
System Accessories
  • Sidelobe Measurement Extension Kit
  • Radome Specific Mounting Adapters
  • System Antennas
  • Radome Specific Test Scripts


Anechoic Enclosure Options
  • Full Turn-key Anechoic Shielded Chamber
  • Full Turn-key Anechoic Enclosure
  • Consulting for Customer Procurement

Note: All anechoic chambers and enclosures include the installation of 20 cm (8 in.) pyramidal RF absorber, lighting, and air vents.


Support Options
  • Site Survey
  • Installation
  • Training
  • Annual Maintenance and Calibration
