Standard Gain Horn Assemblies

Standard Gain Horn Assemblies
Standard Gain Horn Assemblies Standard Gain Horn ANT-SGA Case

Description

Model: ANT-SGA

Standard Gain Horn Assemblies (ANT-SGA) are used in antenna test range applications, and have been designed to deliver accurate and reliable antenna gain measurements. The horns are available to cover the frequency range from 0.35 to 170 GHz. They are plated prior to painting to prevent corrosion. NRL curves are provided with each antenna (in tabular format).

  • Features

    • Precision Gain Calibration Standard
    • Robust Welded Mechanical Design
    • Compliant with NRL-4433 Standard
    • Linear Polarization
    • Low VSWR

    Frequency Range 0.35 – 170 GHz
    Material Aluminum or Brass
    Waveguide Type WR-2100 to WR-7
    Nominal Gain 10.0 – 24.7 dBi
    VSWR < 1.5:1
    CW Power Handling 500 – 10 W
    Weight 3.67 – 37 kg (8.1 – 82 lb)


    Typical Measured Data for Standard Gain Horn Assemblies

    Relative Power

    Relative Power

    Gain

    Gain

    VSWR

    VSWR

    The above data is taken from the ANT-SGA-8.2-12.4 Standard Gain Horn. For additional information on this model or different models, please contact our sales team.

Close window

Specifications

   Model    Frequency Range (GHz) Material Waveguide Type Nominal Gain (dBi) Mounting Plate* Weight kg (lb) VSWR CW Power Handling (W) RF Connector
ANT-SGA-0.35-0.53-RS 0.35 - 0.53 Aluminum WR-2100 10.0 - 37 (82) < 1.5:1 500 N-Female
ANT-SGA-0.35-0.53 0.35 - 0.53 Aluminum WR-2100 15.5 - 104 (230) < 1.5:1 500 N-Female
ANT-SGA-0.41-0.63-RS 0.41 - 0.625 Aluminum WR-1800 10.0 3 25 (56) < 1.5:1 450 N-Female
ANT-SGA-0.41-0.63 0.41 - 0.625 Aluminum WR-1800 15.5 3 74 (163) < 1.5:1 450 N-Female
ANT-SGA-0.49-0.75-RS 0.49 - 0.75 Aluminum WR-1500 10.0 3 20 (43) < 1.5:1 400 N-Female
ANT-SGA-0.49-0.75 0.49 - 0.75 Aluminum WR-1500 15.5 3 51 (112) < 1.5:1 400 N-Female
ANT-SGA-0.64-0.96 0.64 - 0.96 Aluminum WR-1150 15.5 3 35 (77) < 1.5:1 350 N-Female
ANT-SGA-0.75-1.12 0.75 - 1.12 Aluminum WR-975 15.5 2 16 (35) < 1.5:1 300 N-Female

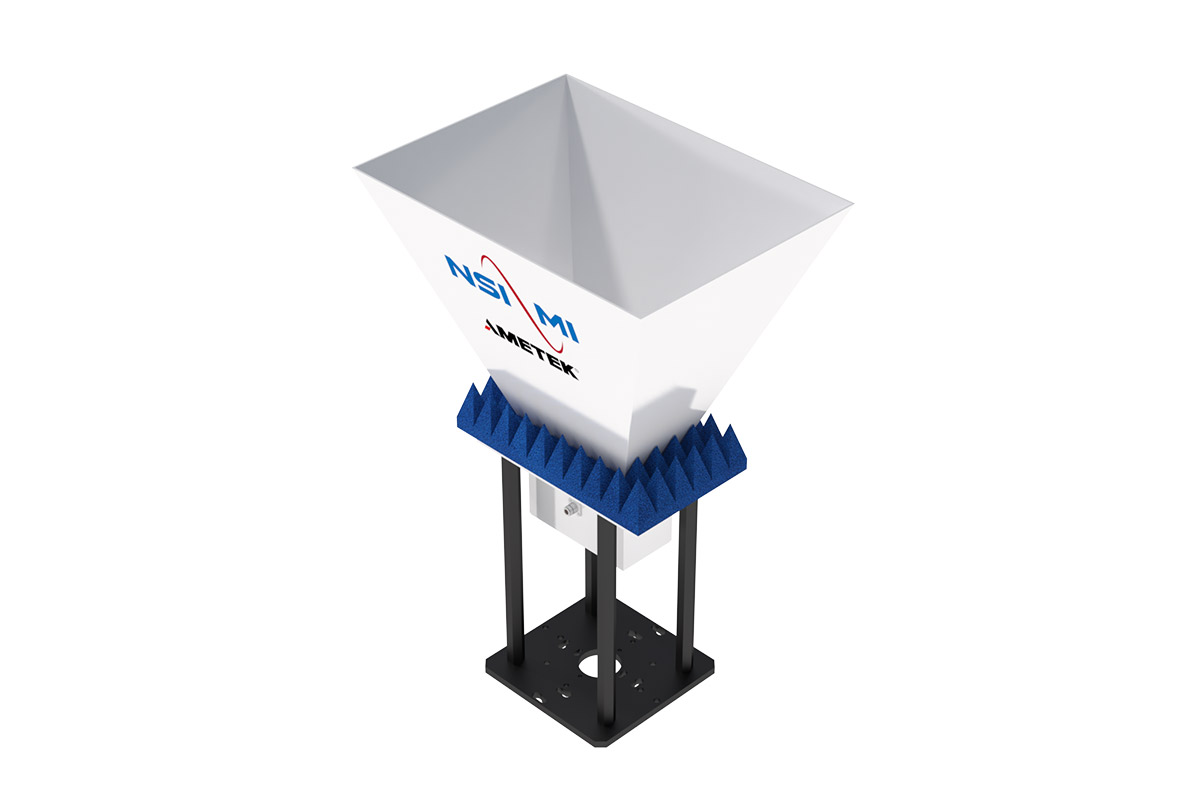

ANT-SGA-0.96-1.45 0.96 - 1.45 Aluminum WR-770 13.7 2 9 (20) < 1.5:1 300 N-Female
ANT-SGA-1.12-1.7 1.12 - 1.70 Aluminum WR-650 15.5 2 6.8 (15) < 1.5:1 300 N-Female
ANT-SGA-1.12-1.7-PNF 1.12 - 1.70 Aluminum WR-650 17.0 2 11.8 (26) < 1.5:1 300 N-Female
ANT-SGA-1.45-2.2 1.45 - 2.20 Aluminum WR-510 15.5 2 4.5 (10) < 1.5:1 250 N-Female
ANT-SGA-1.7-2.6 1.70 - 2.60 Aluminum WR-430 15.5 1 3.2 (7.1) < 1.5:1 225 N-Female
ANT-SGA-1.7-2.6-PNF 1.70 - 2.60 Aluminum WR-430 17.0 1 4.7 (10.3) < 1.5:1 225 N-Female

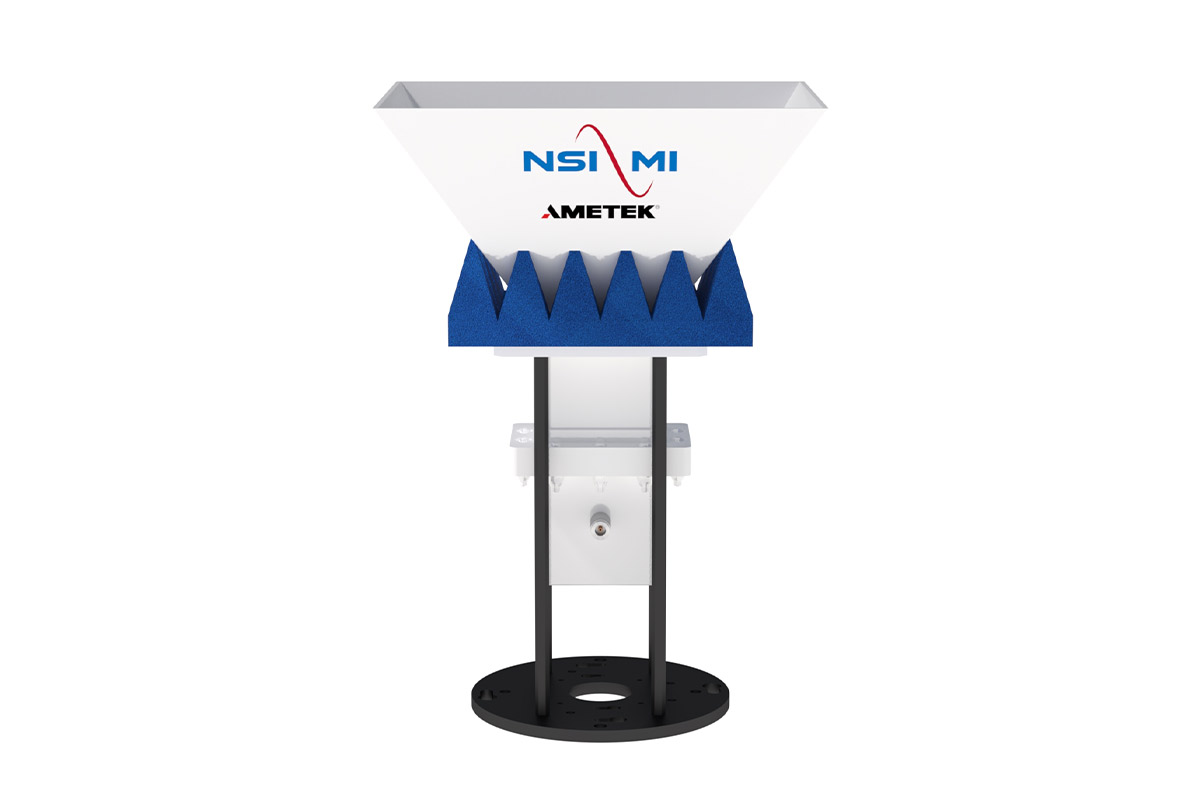

ANT-SGA-2.2-3.3 2.20 - 3.30 Aluminum WR-340 15.5 1 2 (4.5) < 1.5:1 200 N-Female
ANT-SGA-2.6-3.95 2.60 - 3.95 Aluminum WR-284 18.0 1 6.5 (14.5) < 1.5:1 175 N-Female
ANT-SGA-3.3-4.9 3.30 - 4.90 Aluminum WR-229 18.0 1 5.3 (11.7) < 1.5:1 150 N-Female
ANT-SGA-3.95-5.85 3.95 - 5.85 Aluminum WR-187 18.0 1 4.9 (11) < 1.5:1 125 N-Female
ANT-SGA-4.9-7.05 4.90 - 7.05 Aluminum WR-159 18.0 1 4.6 (10.2) < 1.5:1 100 N-Female
ANT-SGA-5.85-8.2 5.85 - 8.20 Aluminum WR-137 22.1 1 6.1 (13.5) < 1.5:1 100 N-Female
ANT-SGA-7.05-10 7.05 - 10.0 Aluminum WR-112 18.0 1 4.3 (9.4) < 1.5:1 100 N-Female*

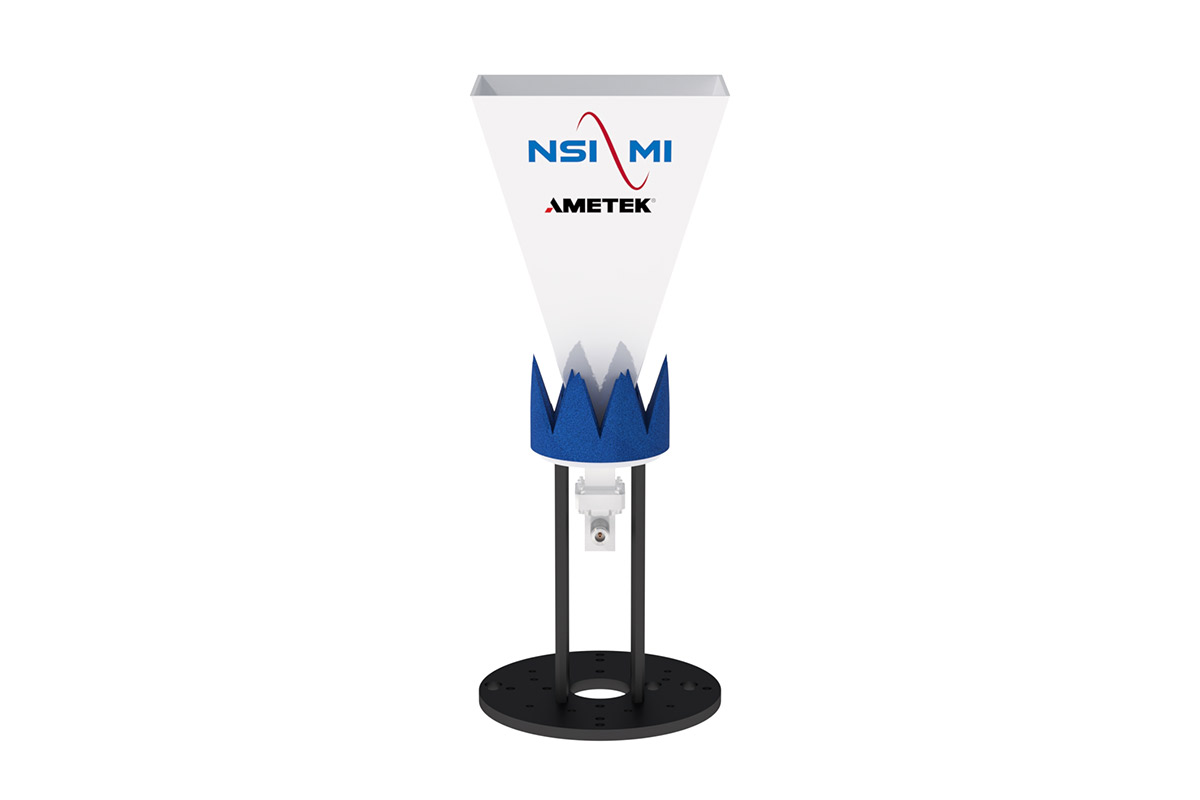

ANT-SGA-8.2-12.4 8.20 - 12.40 Aluminum WR-90 22.1 1 4.9 (10.8) < 1.5:1 75 N-Female

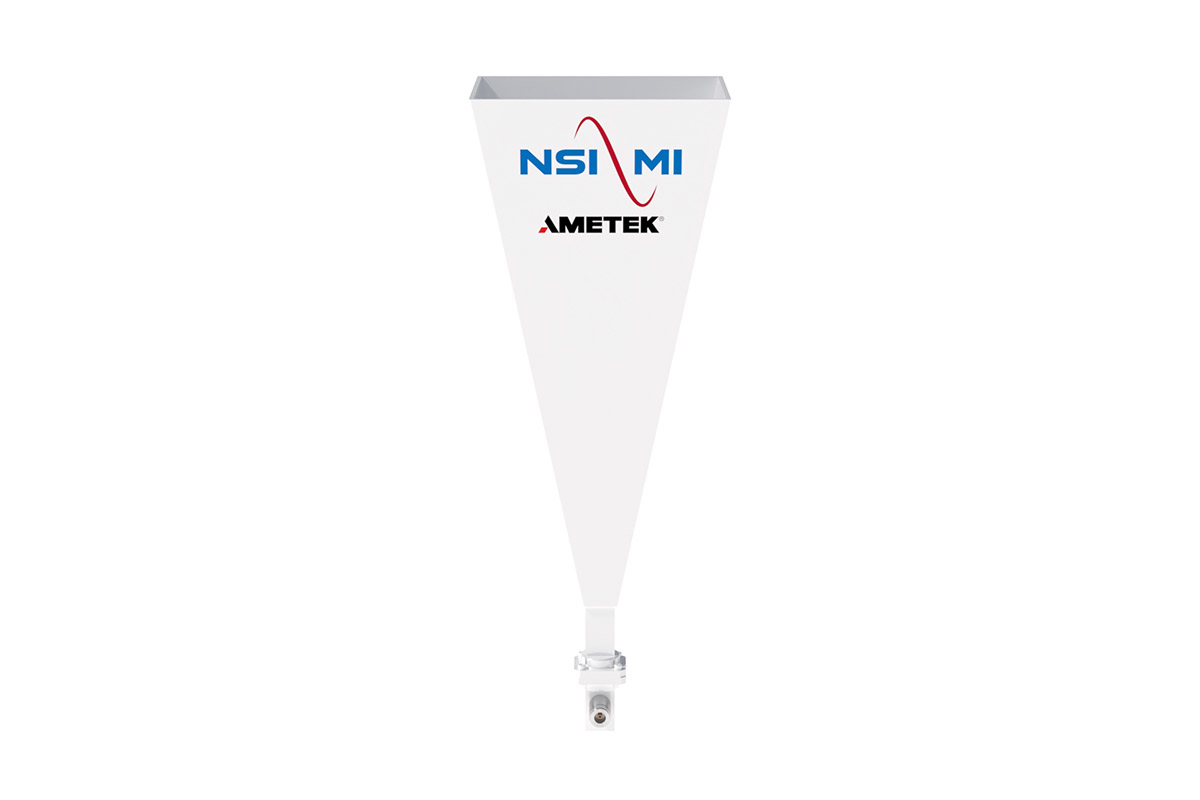

ANT-SGA-10-15 10.0 - 15.0 Aluminum WR-75 24.7 1 5 (11.1) < 1.5:1 75 N-Female*
ANT-SGA-12.4-18 12.4 - 18.0 Aluminum WR-62 24.7 1 4.5 (9.9) < 1.5:1 50 N-Female*
ANT-SGA-15-22 15.0 - 22.0 Aluminum WR-51 24.7 1 5.1 (11.2) < 1.5:1 15 2.92 mm*
ANT-SGA-18-26.5 18.0 - 26.5 Aluminum WR-42 24.7 1 4.5 (10) < 1.5:1 15 2.92 mm*

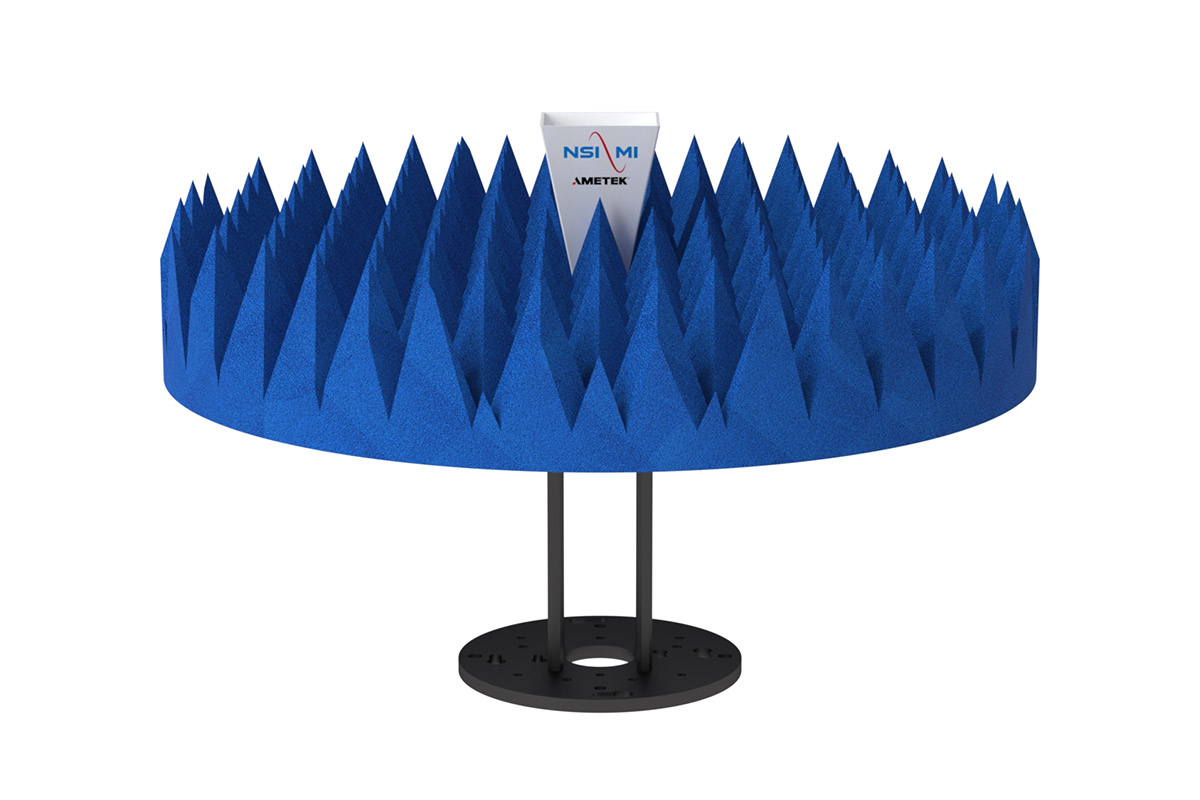

ANT-SGA-22-33 22.0 - 33.0 Aluminum WR-34 24.7 1 4.3 (9.4) < 1.5:1 15 2.92 mm*
ANT-SGA-26.5-40 26.5 - 40.0 Aluminum WR-28 24.7 1 4.1 (9.1) < 1.5:1 10 2.92 mm*
ANT-SGA-33-50 33.0 - 50.0 Aluminum WR-22 24.7 1 4 (8.9) < 1.5:1 10 2.4 mm*

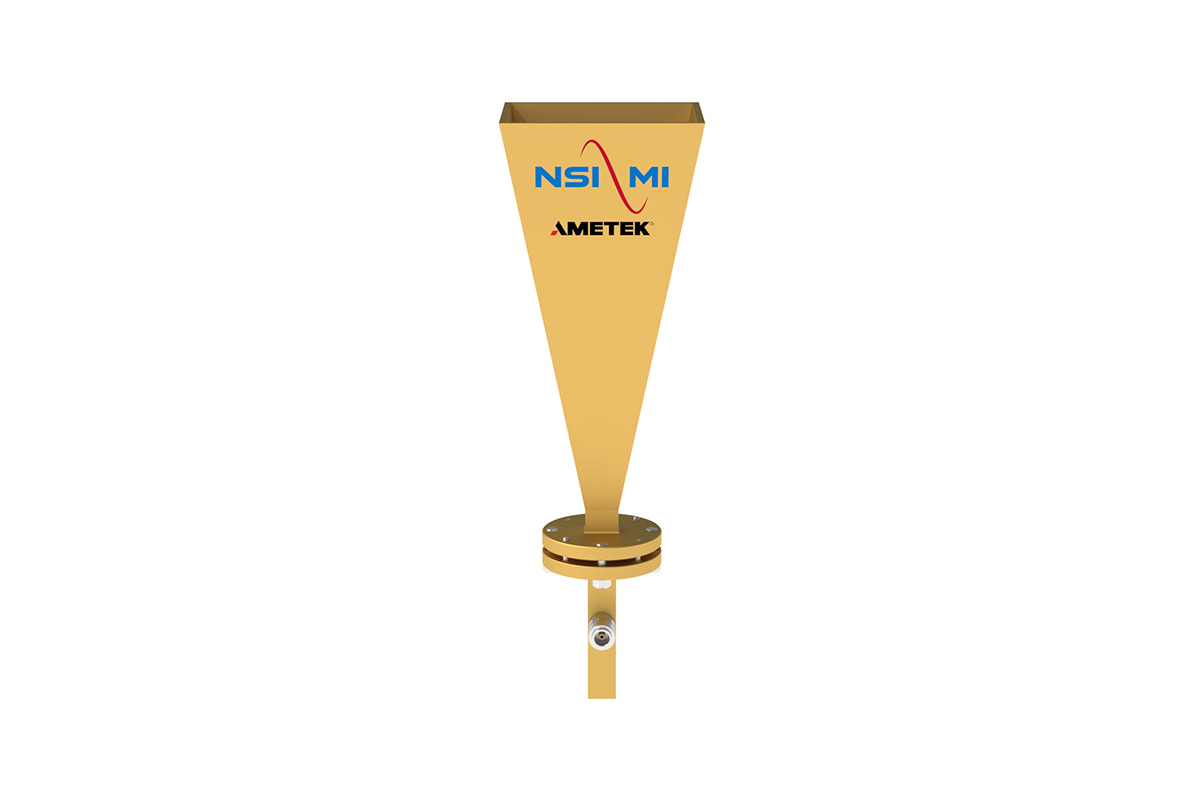

ANT-SGA-40-60 40.0 - 60.0 Brass WR-19 24.7 1 3.99 (8.8) - - Waveguide
ANT-SGA-50-75 50.0 - 75.0 Brass WR-15 24.7 1 3.94 (8.7) - - Waveguide
ANT-SGA-60-90 60.0 - 90.0 Brass WR-12 24.7 1 3.94 (8.7) - - Waveguide
ANT-SGA-75-110 75.0 - 110 Brass WR-10 24.7 1 3.67 (8.1) - - Waveguide
ANT-SGA-90-140 90.0 - 140 Brass WR-8 24.7 1/td> 3.67 (8.1) - - Waveguide
ANT-SGA-110-170 110 - 170 Brass WR-7 24.7 1 3.67 (8.1) - - Waveguide
