Model: ANT-SGHNSI-MI Technologies' Standard Gain Horns (ANT-SGH) are used in antenna test range applications, and have been designed to deliver accurate and reliable antenna gain measurements. The horns are available to cover the frequency range from 0.35 to 170 GHz. They are plated prior to painting to prevent corrosion. NRL curves for peak gain are provided with each antenna.
DatasheetCompare models
Standard Gain Horn Assemblies
SGH Calibration
Features
- Precision gain calibration standard
- Robust welded mechanical design
- Compliant with NRL-4433 standard
- Linear polarization
Frequency Range 0.32 – 170 GHz Nominal Gain 10.0 – 24.6 dBi Weight 0.05 – 106 kg (0.1 – 234 lb)
Close window
Specifications
| Model | Frequency Range (GHz) | Material | Waveguide Type | Nominal Gain (dBi) | Weight kg (lb) |
|---|---|---|---|---|---|
| ANT-SGH-0.32-0.49-RS | 0.32 - 0.49 | Aluminum | WR-2300 | 10.2 | 36 (79) |
| ANT-SGH-0.32-0.49 | 0.32 - 0.49 | Aluminum | WR-2300 | 16.0 | 106 (234) |
| ANT-SGH-0.35-0.53-RS | 0.35 - 0.53 | Aluminum | WR-2100 | 10.1 | 28 (62) |
| ANT-SGH-0.35-0.53 | 0.35 - 0.53 | Aluminum | WR-2100 | 16.3 | 95 (210) |
| ANT-SGH-0.41-0.63-RS | 0.41 - 0.625 | Aluminum | WR-1800 | 10.0 | 17 (38) |
| ANT-SGH-0.41-0.63 | 0.41 - 0.625 | Aluminum | WR-1800 | 15.9 | 66 (145) |
| ANT-SGH-0.49-0.75-RS | 0.49 - 0.75 | Aluminum | WR-1500 | 10.2 | 14 (31) |
| ANT-SGH-0.49-0.75 | 0.49 - 0.75 | Aluminum | WR-1500 | 15.8 | 45 (100) |
| ANT-SGH-0.64-0.96 | 0.64 - 0.96 | Aluminum | WR-1150 | 15.9 | 31 (68) |
| ANT-SGH-0.75-1.12 | 0.75 - 1.12 | Aluminum | WR-975 | 13.9 | 13 (28) |
| ANT-SGH-0.96-1.45 | 0.96 - 1.45 | Aluminum | WR-770 | 15.1 | 7 (15) |
| ANT-SGH-1.12-1.7 | 1.12 - 1.70 | Aluminum | WR-650 | 15.9 | 5.4 (12) |
| ANT-SGH-1.45-2.2 | 1.45 - 2.20 | Aluminum | WR-510 | 15.8 | 3.6 (8) |
| ANT-SGH-1.7-2.6 | 1.7 - 2.6 | Aluminum | WR-430 | 16.1 | 2.5 (5.6) |

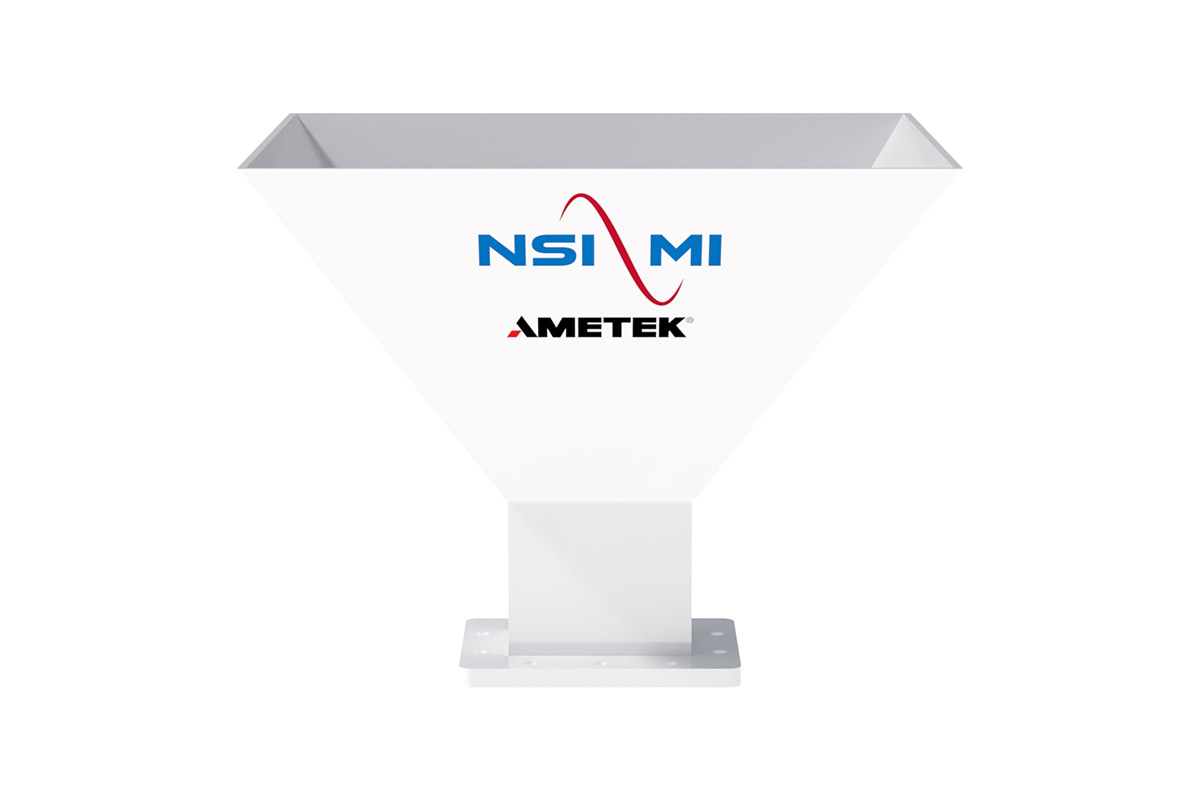

| ANT-SGH-2.2-3.3 | 2.2 - 3.3 | Aluminum | WR-340 | 15.8 | 1.8 (4) |

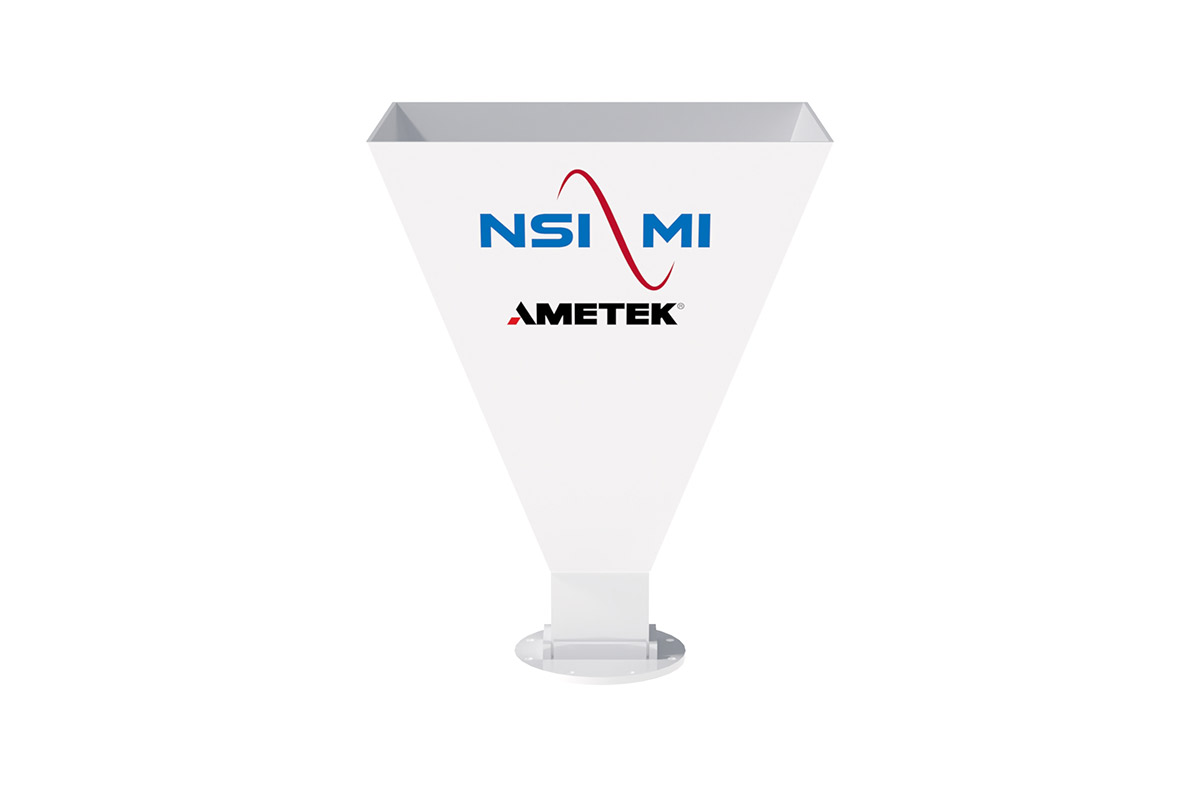

| ANT-SGH-2.6-3.95 | 2.60 - 3.95 | Aluminum | WR-284 | 18.5 | 2.5 (5.5) |
| ANT-SGH-3.3-4.9 | 3.3 - 4.9 | Aluminum | WR-229 | 18.4 | 1.5 (3.2) |
| ANT-SGH-3.95-5.85 | 3.95 - 5.85 | Aluminum | WR-187 | 18.6 | 1.1 (2.5) |
| ANT-SGH-4.9-7.05 | 4.90 - 7.05 | Aluminum | WR-159 | 18.3 | 0.8 (1.7) |
| ANT-SGH-5.85-8.2 | 5.85 - 8.20 | Aluminum | WR-137 | 22.6 | 2.3 (5) |
| ANT-SGH-7.05-10 | 7.05 - 10.00 | Aluminum | WR-112 | 18.7 | 0.9 (0.4) |

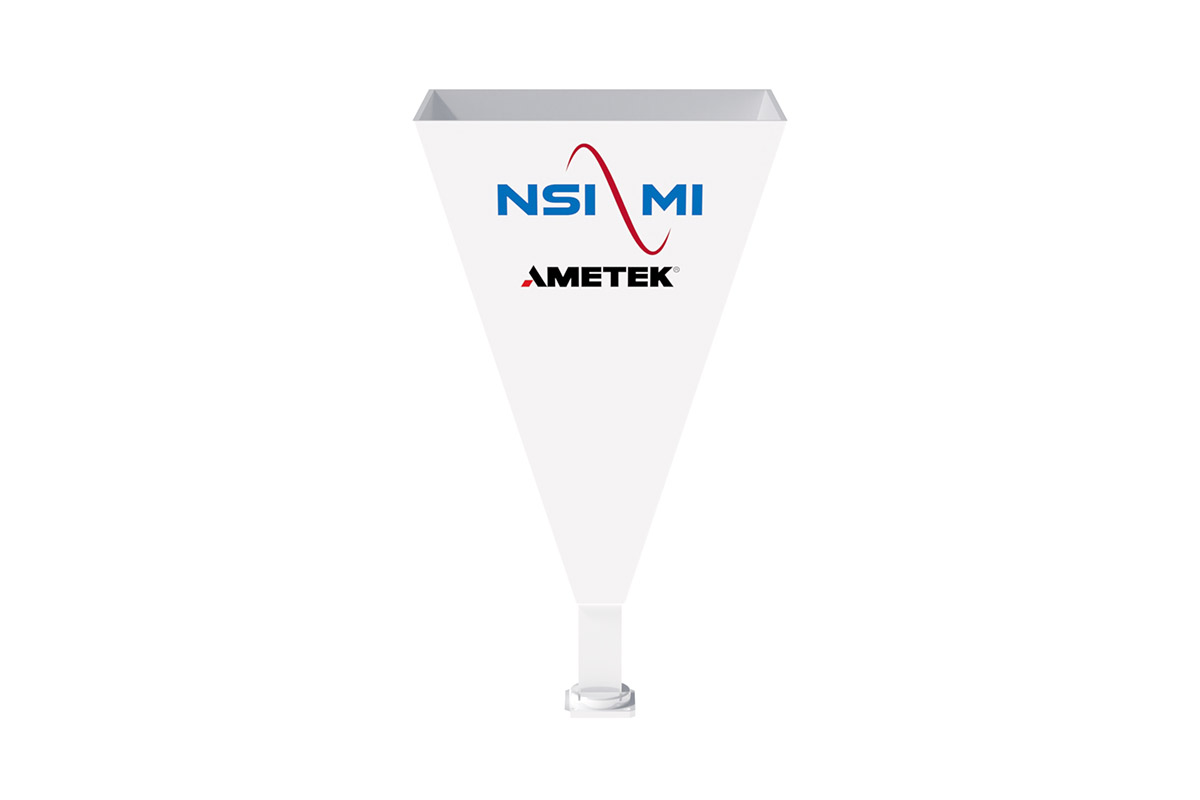

| ANT-SGH-8.2-12.4 | 8.2 - 12.4 | Aluminum | WR-90 | 22.4 | 1.0 (2.3) |
| ANT-SGH-10-15 | 10.0 - 15.0 | Aluminum | WR-75 | 24.4 | 1.2 (2.6) |
| ANT-SGH-12.4-18 | 12.4 - 18.0 | Aluminum | WR-62 | 24.6 | 0.6 (1.4) |
| ANT-SGH-15-22 | 15.0 - 22.0 | Aluminum | WR-51 | 24.4 | 2.7 (1.2) |
| ANT-SGH-18-26.5 | 18.0 - 26.5 | Aluminum | WR-42 | 24.6 | 0.7 (1.5) |

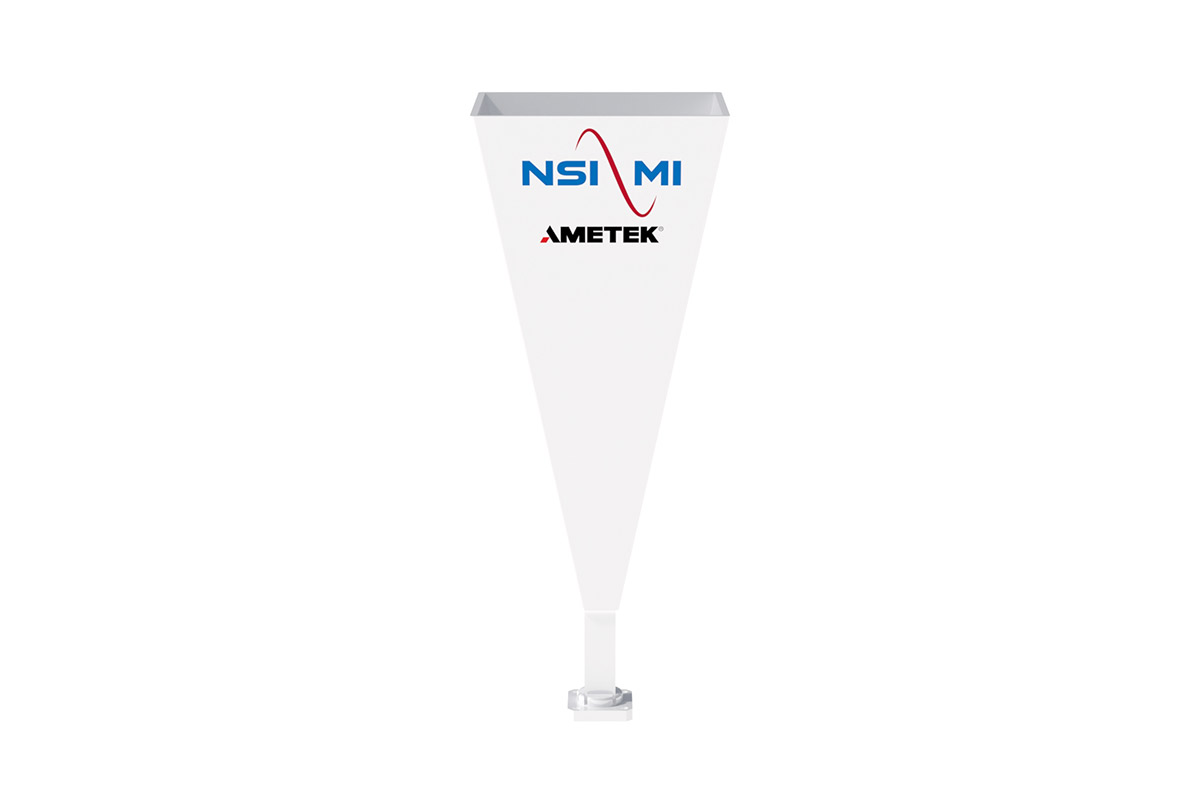

| ANT-SGH-22-33 | 22.0 - 33.0 | Aluminum | WR-34 | 24.4 | 0.4 (0.9) |
| ANT-SGH-26.5-40 | 26.5 - 40.0 | Aluminum | WR-28 | 24.5 | 0.3 (0.6) |
| ANT-SGH-33-50 | 33.0 - 50.0 | Aluminum | WR-22 | 24.5 | 0.2 (0.4) |
| ANT-SGH-40-60 | 40.0 - 60.0 | Gold-Plated Brass | WR-19 | 24.4 | 0.2 (0.4) |
| ANT-SGH-50-75 | 50.0 - 75.0 | Gold-Plated Brass | WR-15 | 24.5 | 0.1 (0.2) |
| ANT-SGH-60-90 | 60.0 - 90.0 | Gold-Plated Brass | WR-12 | 24.4 | 0.1 (0.2) |
| ANT-SGH-75-110 | 75.0 - 110.0 | Gold-Plated Brass | WR-10 | 24.5 | 0.05 (0.1) |
| ANT-SGH-90-140 | 90.0 - 140.0 | Gold-Plated Brass | WR-8 | 24.5 | 0.05 (0.1) |
| ANT-SGH-110-170 | 110.0 - 170.0 | Gold-Plated Brass | WR-7 | 24.5 | 0.05 (0.1) |
