Focused and Aligned Parabolic Reflectors and Waveguide Feeds

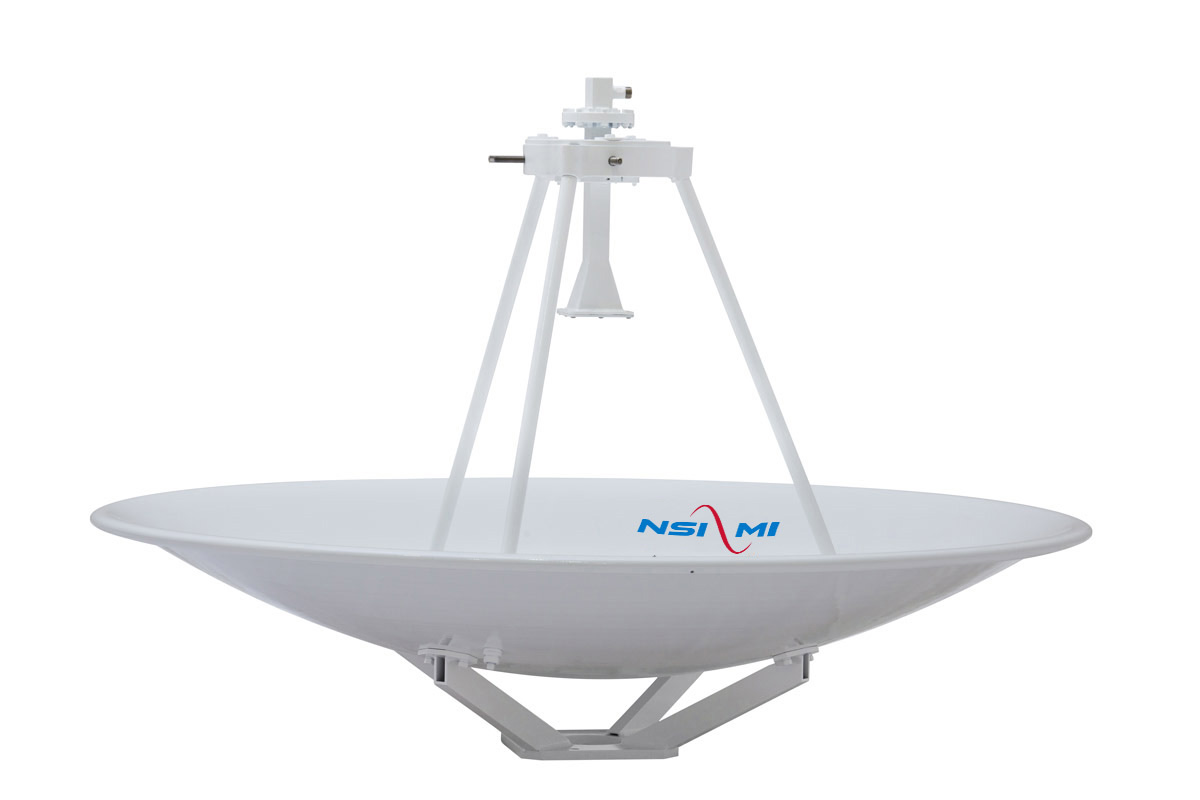

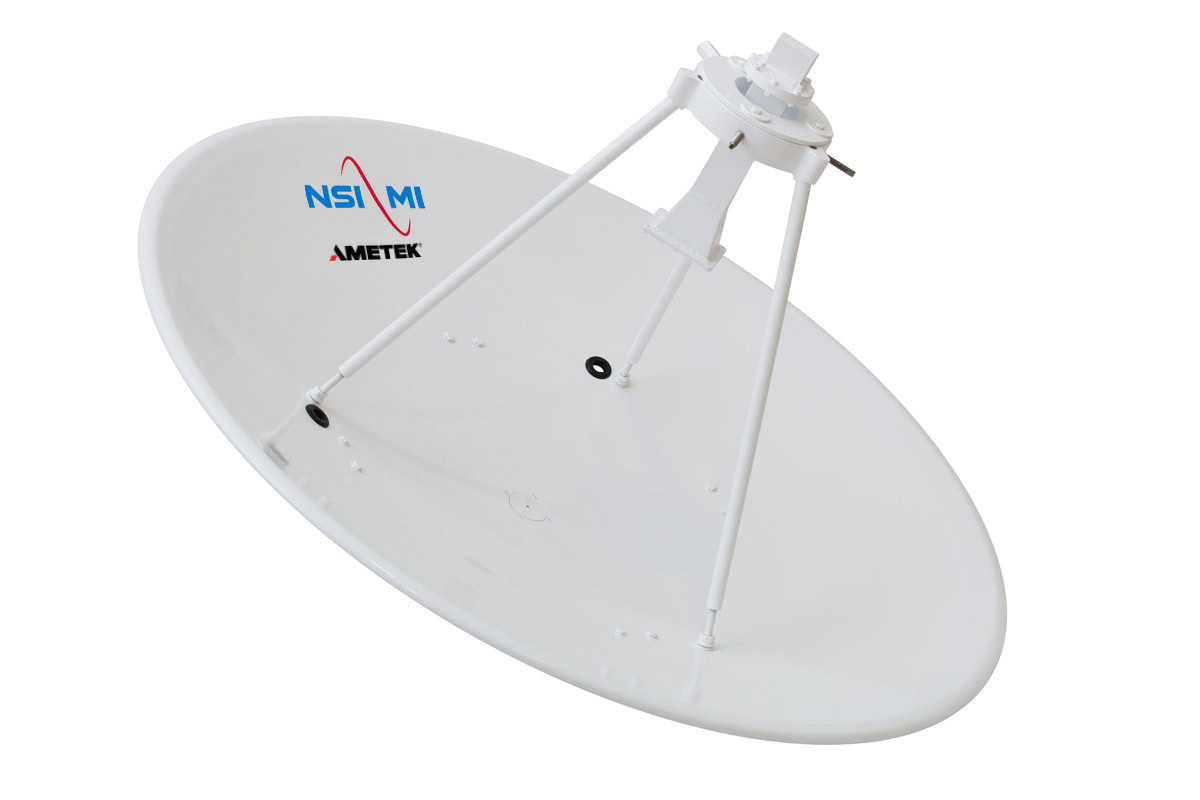

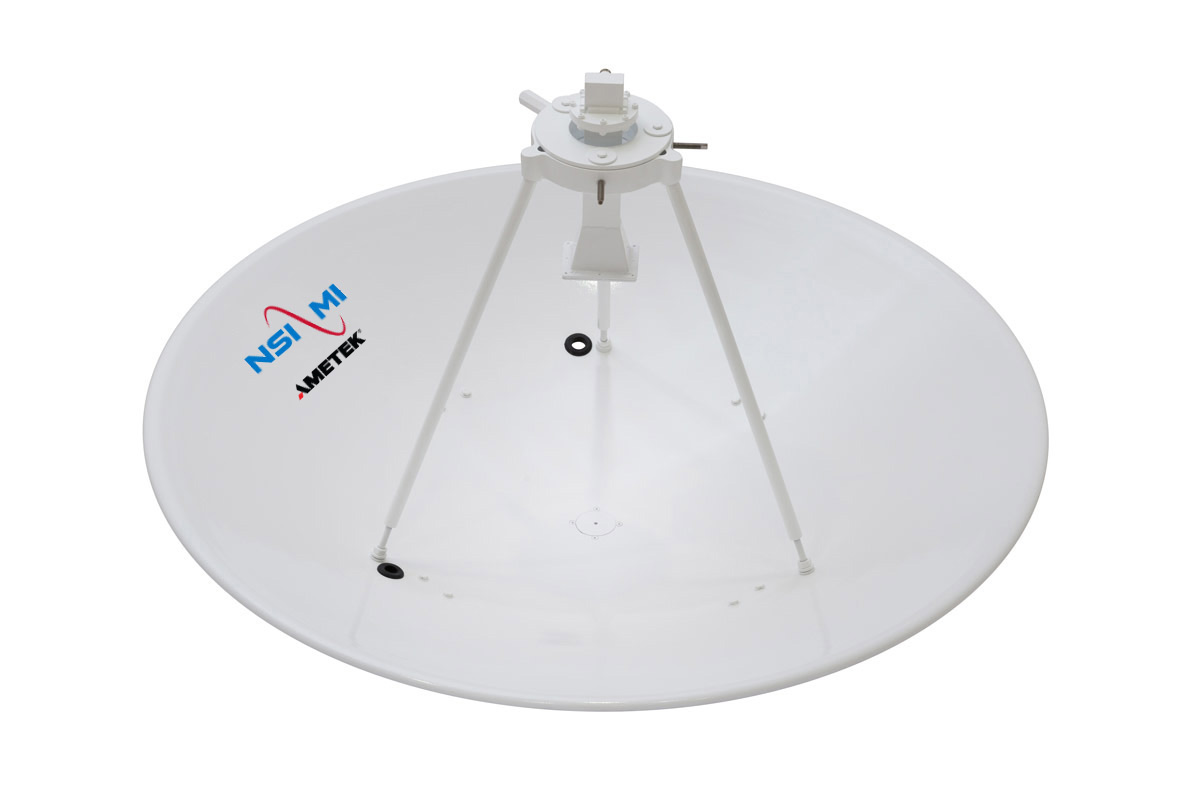

Focused and Aligned Parabolic Reflector

Description

Model: ANT-PBR

NSI-MI Technologies' Family of Focused and Aligned Parabolic Reflectors and Waveguide Feeds are linearly polarized reflector antennas covering the frequency range of 1.7 GHz to 40 GHz. This product is an assembly consisting of a Parabolic Reflector, Linear Waveguide Feed, a Spider-Leg Mounting Bracket and a Focusing and Alignment procedure for precision. The feed terminating connectors are shown in the table of specifications to the right. Our Coax-to-Waveguide Adapters may be used to provide a coaxial cable input to the waveguide.

  • Features

    • High Gain
    • Low VSWR
    • Linear Polarization, Adjustable

    Frequency Range 1.70 – 40.0 GHz
    Reflector Diameter 1 – 8 ft (26.5 – 244 cm)
    Nominal Gain 29 – 42 dB
    Nominal Beamwidth 1.5° – 6.0°
    Maximum VSWR 1.5 – 2.0
    1st Side Lobe Suppression 15 – 18 dB

    Typical Measured Data for Focused and Aligned Parabolic Reflectors and Waveguide Feeds

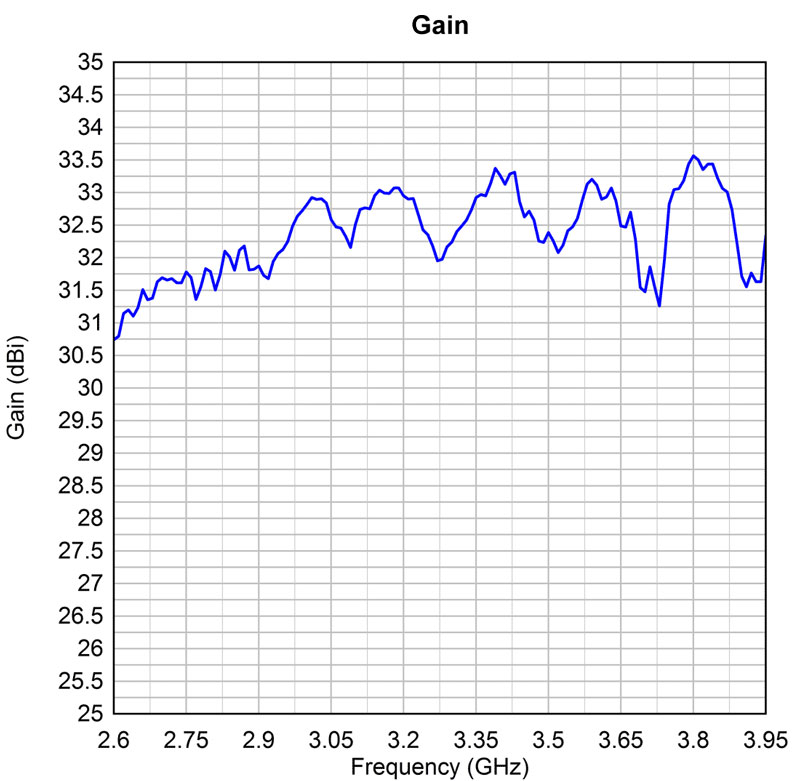

    Gain at 2.6/6 GHz

    Gain at 2.6/6 GHz

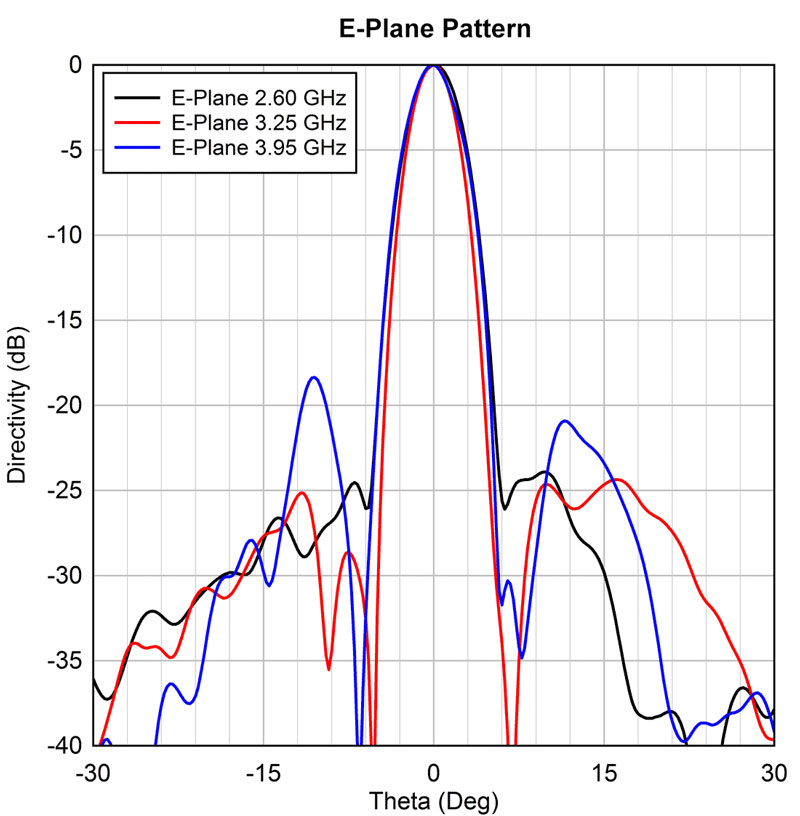

    E-Plane Pattern at 2.6/6 GHz

    E-Plane Pattern at 2.6/6 GHz

    H-Plane Pattern at 2.6/6 GHz

    H-Plane Pattern at 2.6/6 GHz

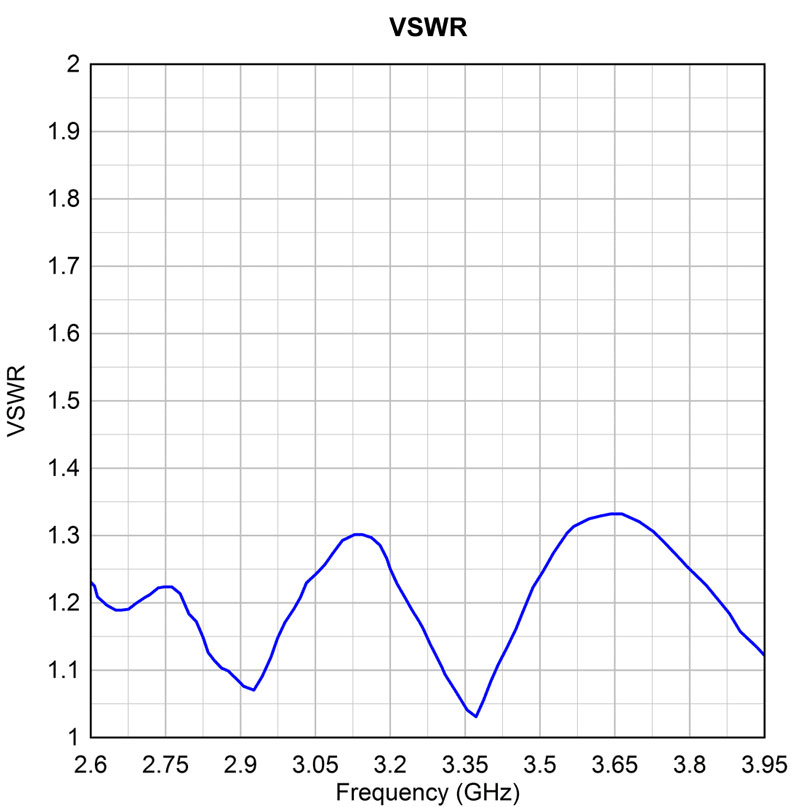

    VSWR at 2.6/6 GHz

    VSWR at 2.6/6 GHz



Close window

Waveguide Feed Specifications

Model       Frequency Range (GHz) Feed Aperature Dimensions in. (cm) Power Handling (W) Mechanical Flange
ANT-PBR-1.7 1.7-2.6 6.8 X 5.2 (17.3 X 13.2) 15 kW RG-105/U
ANT-PBR-2.6 2.6-3.95 4.5 X 3.3 (11.4 X 8.4) 90 W Type N/RG-214
ANT-PBR-2.6 2.6-3.95 4.5 X 3.3 (11.4 X 8.4) 10 kW RG-75/U 6061
ANT-PBR-3.9 3.95-5.85 3.0 X 2.2 (7.6 X 5.6) 4 kW RG-95/U
ANT-PBR-3.9 3.95-5.85 3.0 X 2.2 (7.6 X 5.6) 4 kW RG-95/U 6061
ANT-PBR-5.8 5.85-8.2 2.11 X 1.55 (5.4 X 3.9) 1.5 kW RG-106/U
ANT-PBR-5.8 5.85-8.2 2.11 X 1.55 (5.4 X 3.9) 1.5 kW RG-106/U 6061
ANT-PBR-8.2 8.2-12.4 1.46 X 1.07 (3.7 X 2.7) 0.7 kW RG-67/U
ANT-PBR-8.2 8.2-12.4 1.46 X 1.07 (3.7 X 2.7) 0.7 kW RG-67/U
ANT-PBR-8.2 8.2-12.4 1.46 X 1.07 (3.7 X 2.7) 0.7 kW RG-57/U 6061
ANT-PBR-12 12.4-18.0 0.97 X 0.71 (2.5 X 1.8) 0.4 kW RG-91/U
ANT-PBR-12 12.4-18.0 0.97 X 0.71 (2.5 X 1.8) 0.4 kW RG-91/U
AANT-PBR-12 12.4-18.0 0.97 X 0.71 (2.5 X 1.8) 0.4 kW RG-91/U
ANT-PBR-18 18.0-26.5 0.66 X 0.48 (1.7 X 1.2) 0.14 kW RG-53/U
ANT-PBR-26 26.5-40.0 0.43 X 0.03 (1.1 X 0.08) 0.09 kW RG-271

Parabolic Reflector Specifications

Model       Frequency Range (GHz) Reflector Diameter ft (cm) Nominal Gain (dB) Nominal Beamwidth (deg) Maximum VSWR 1st Side Lobe Suppression (dB) Feed Connector Type or Equivalent
ANT-PBR-24-1.7/8 1.70-2.60 8 (244) 31 4.6 1.5 18 UG-437/U
ANT-PBR-24-2.6/8 2.60-3.95 8 (244) 35 3.1 1.5 18 UG-584/U
ANT-PBR-24-2.6/6 2.60-3.95 6 (183) 32 4.0 2.0 18 Type N, Female
ANT-PBR-24-3.9/8 3.95-5.85 8 (244) 39 2.1 1.5 18 UG-149/U
ANT-PBR-24-5.8/8 5.85-8.20 8 (244) 42 1.6 1.5 18 UG-441/U
ANT-PBR-24-3v.9/6 3.95-5.85 6 (183) 36 3.0 1.5 18 UG-149/U
ANT-PBR-24-5.8/6 5.85-8.20 6 (183) 39 2.0 1.5 18 UG-441/U
ANT-PBR-24-8.2/6 8.20-12.4 6 (183) 42 1.5 1.5 18 UG-135/U
ANT-PBR-24-2.6/4 2.60-3.95 4 (122) 29 6.0 2.0 18 Type N, Female
ANT-PBR-24-3.9/4 3.95-5.85 4 (122) 32 4.0 1.5 18 UG-149/U
ANT-PBR-24-5.8/4 5.85-8.20 4 (122) 35 3.0 1.5 18 UG-441/U
ANT-PBR-24-8.2/4 8.20-12.4 4 (122) 39 2.0 1.5 18 UG-135/U
ANT-PBR-24-12/4 12.4-18.0 4 (122) 42 1.5 1.5 18 UG-419/U
ANT-PBR-24-8.2/2 8.20-12.4 2 (61) 33 4.0 1.5 15 UG-135/U
ANT-PBR-24-12/2 12.4-18.0 2 (61) 36 3.0 1.5 15 UG-419/U
ANT-PBR-24-12/1 12.4-18.0 1 (30.5) 30 5.0 1.5 18 UG-419/U
ANT-PBR-24-18/1 18.0-26.5 1 (30.5) 33 4.0 1.5 14 UG-595/U
ANT-PBR-24-26/1 26.5-40.0 1 (30.5) 36 2.5 1.5 14 UG-595/U
