Dual Polarized Log-Periodic Antennas

Dual Polarized Log-Periodic Antenna

Description

Model: ANT-DLPA

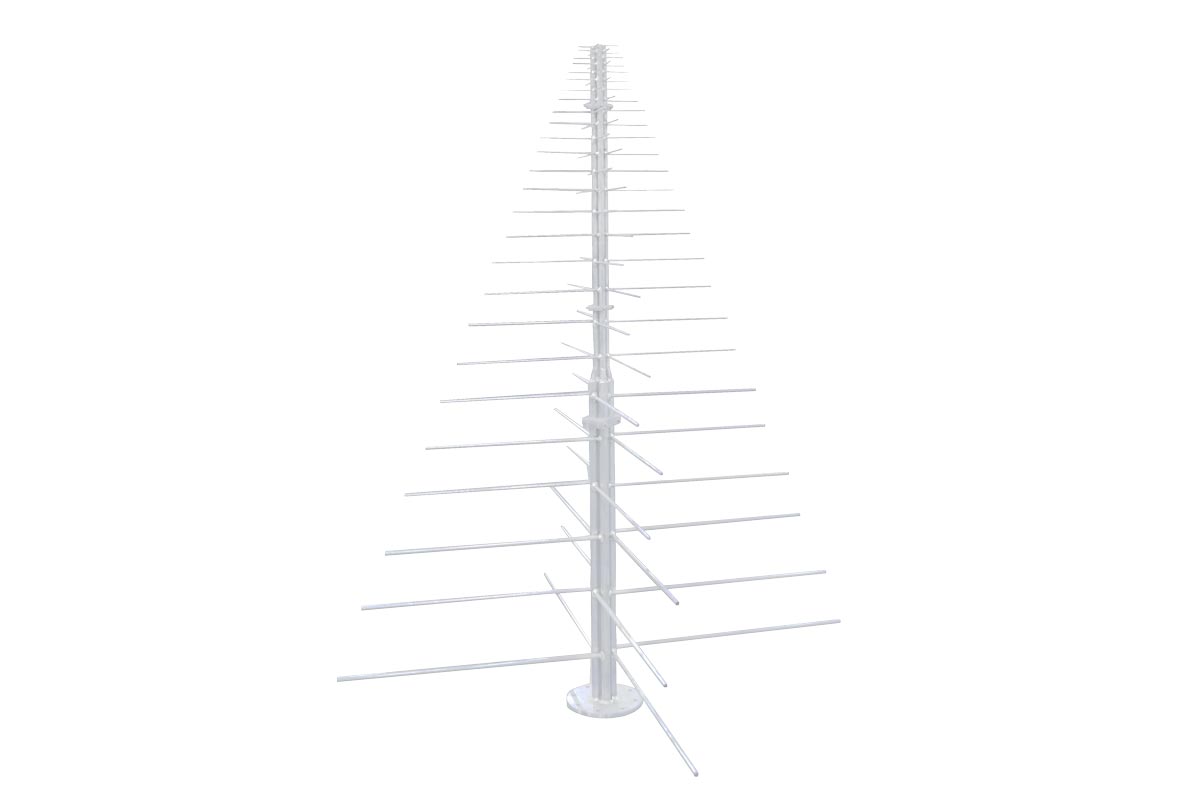

NSI-MI Technologies' Dual Polarized Log-Periodic Antennas (ANT-DLPA) combine broadband coverage with the versatility of dual polarization. The ANT-DLPA consists of two crossed log-periodic arrays, specifically designed for VHF and UHF frequency bands. A mounting flange is provided at the base of the array for easy attachment to positioning systems.

  • Features

    • Dual Linear Polarization
    • Constant Gain
    • Broadband Performance

    Frequency Range 0.10 – 1.0 GHz
    Nominal Gain 8 dBi
    Average Power 200 W
    Nominal Beamwidth 60° E-Plane
    120° H-Plane
    Length 43 – 183 cm (17 – 72 in.)
    Center of Gravity 7.62 – 61 cm (3 – 24 in.) from flange
    Weight 2.7 – 12 kg (6 – 25 lb)


    Typical Measured Data for Dual Polarized Log-Periodic Antennas

    ANT-DLPA-0.2-1 Port 1 Radiation Patterns

    ANT-DLPA-0.2-1 Port 1 Radiation Patterns

    ANT-DLPA-0.2-1 Port 2 Radiation Patterns

    ANT-DLPA-0.2-1 Port 2 Radiation Patterns

    ANT-DLPA-0.2-1 Port 1 Radiation Patterns

    ANT-DLPA-0.2-1 Port 1 Radiation Patterns

    ANT-DLPA-0.2-1 Port 2 Radiation Patterns

    ANT-DLPA-0.2-1 Port 2 Radiation Patterns

    ANT-DLPA-0.2-1 VSWR

    ANT-DLPA-0.2-1 VSWR

    Gain at 0.2 GHz

    Gain at 0.2 GHz

Close window

Specifications

Model         Frequency Range (GHz) Nominal Gain (dBi) Average Power (W) Nominal Beamwidth Length cm (in.) RF Connector Center of Gravity cm (in.) Weight kg (lb)
ANT-DLPA-0.1-1 0.10 - 1.0 8 200 60° E-Plane
120° H-Plane
183 (72) N-Female 261 (24) from flange 12 (25)
ANT-DLPA-0.15-1 0.15 - 1.0 8 200 60° E-Plane
120° H-Plane
116 (46) N-Female 33 (13) from flange 5 (11)
ANT-DLPA-0.2-1 0.20 - 1.0 8 200 60° E-Plane
120° H-Plane
80 (32) N-Female 20 (8) from flange 3 (7)
ANT-DLPA-0.35-1 0.35 - 1.0 8 200 60° E-Plane
120° H-Plane
43 (17) N-Female 7.62 (3) from flange 2.7 (6)
