Broadband Horn Antennas

Model: ANT-BHA
Our line of broadband horn antennas are suitable for a wide variety of applications that require stable antenna performance over extremely broad frequency bandwidths. The best in class radiation patterns remain consistent across the operating frequency band for applications that require broadband performance. Each model is also designed to maintain VSWR across the complete frequency bandwidth.

  • Ideal for antenna measurements
  • Low VSWR
  • High gain
  • Stable radiation patterns
  • Excellent performance over broad frequency bandwidth
  • Cross polarization better than -20 dB (meets CISPR 16 requirement)
  • Excellent antenna factor (equivalent to single polarized antennas)

Buy Now
  • Specifications
  • Applications
  • Includes
  • Available Add-Ons
ANT-BHA-2-18
Material Aluminum
Frequency Range 2.0 – 18.0 GHz
Peak Gain 15 dBi
Polarization Dual linear
Port-to-port Isolation 25 dB
Cross-polar Discrimination 20 dB
VSWR 1.8:1 typical, 2.5:1 peak
RF Connector (50 Ω) 2 x 2.92 mm
Max Power 25 W

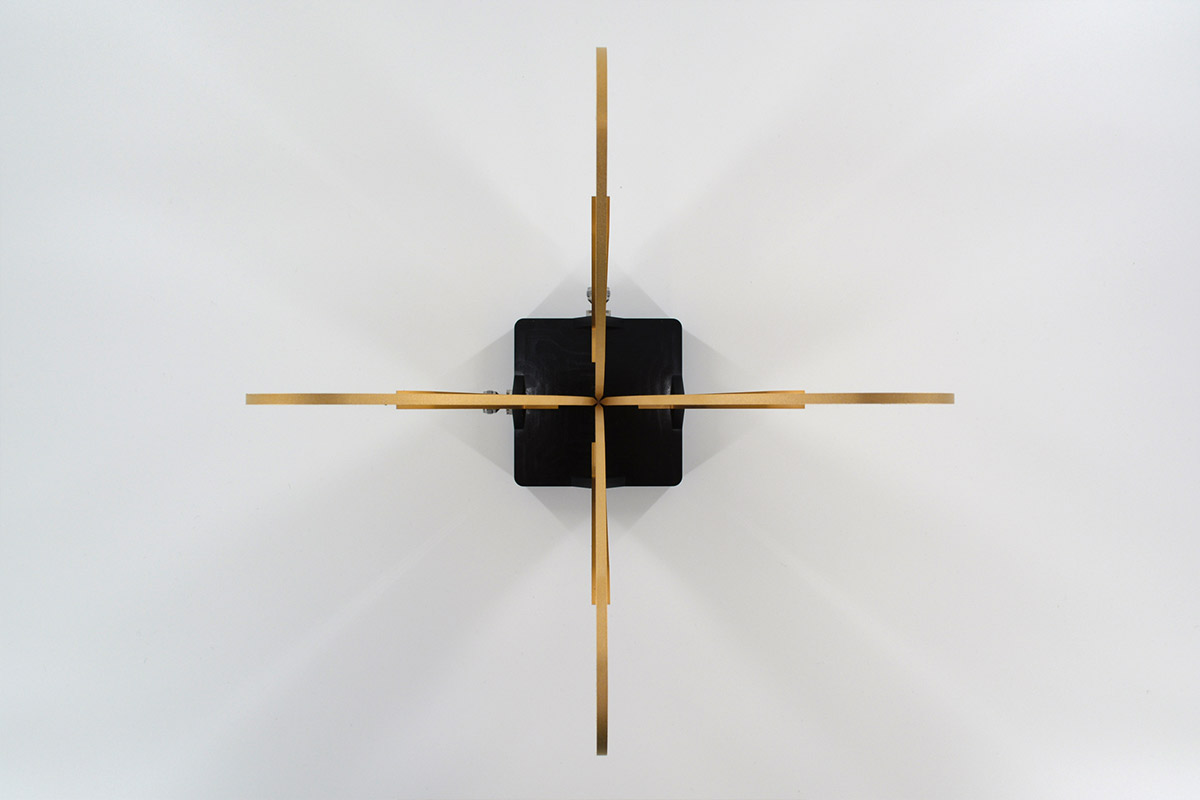

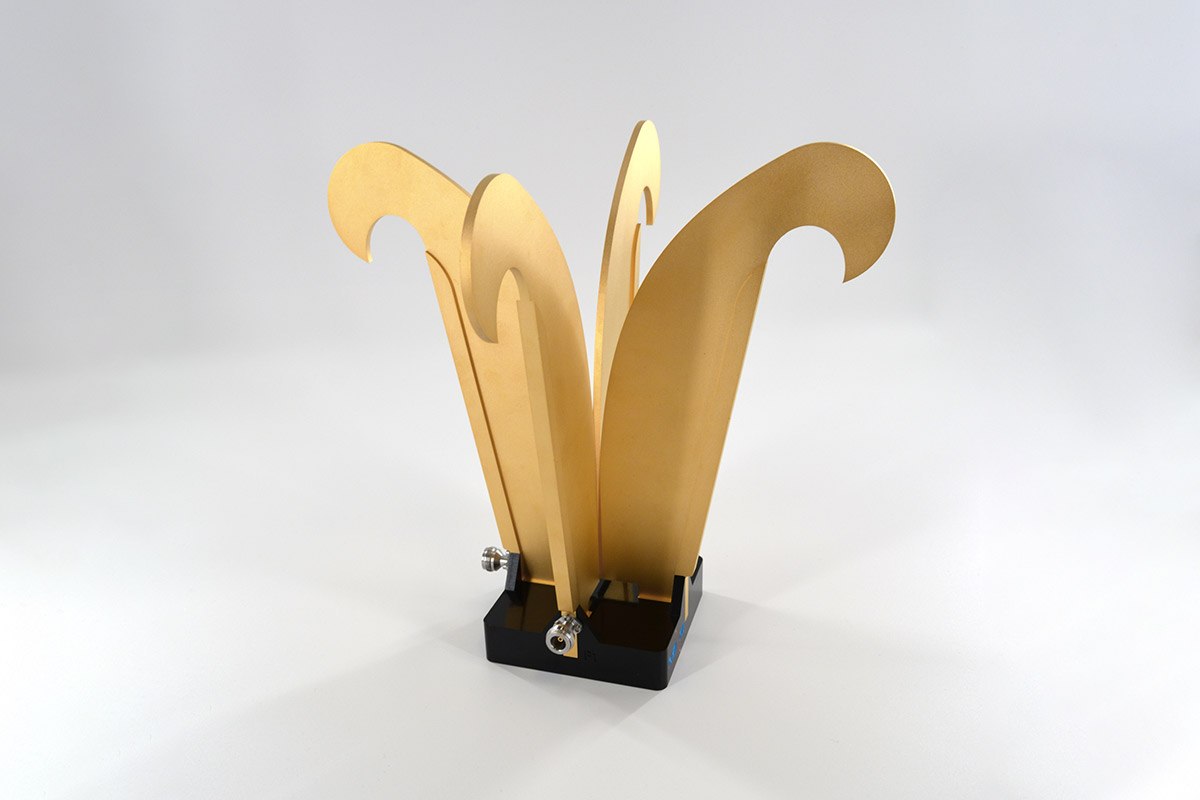

ANT-BHA-1-15
Material Aluminum
Frequency Range 1.0 – 15.0 GHz
Peak Gain 13 dBi
Polarization Dual Linear
Port-to-port Isolation 25 dB
Cross-polar Discrimination 20 dB
VSWR 1.8:1 typical, 2.5:1 peak
RF Connector (50 Ω) Type-N female
Max Power 50 W
ANT-BHA-1-18
Material Aluminum
Frequency Range 1.0 – 18.0 GHz
Peak Gain 13 dBi
Polarization Dual Linear
Port-to-port Isolation 25 dB
Cross-polar Discrimination 20 dB
VSWR 1.8:1 typical, 2.5:1 peak
RF Connector (50 Ω) Type-N female
Max Power 50 W
  • ANT-BHA Broadband Horn Antenna
  • User manual
  • Storage case
  • Mounting hardware and accessories available upon request
  • A2LA-accredited calibration
  • Tripod mounting bracket
