Broadband Ridged Probes

Broadband Ridged Probe

Description

Model: ANT-BRP

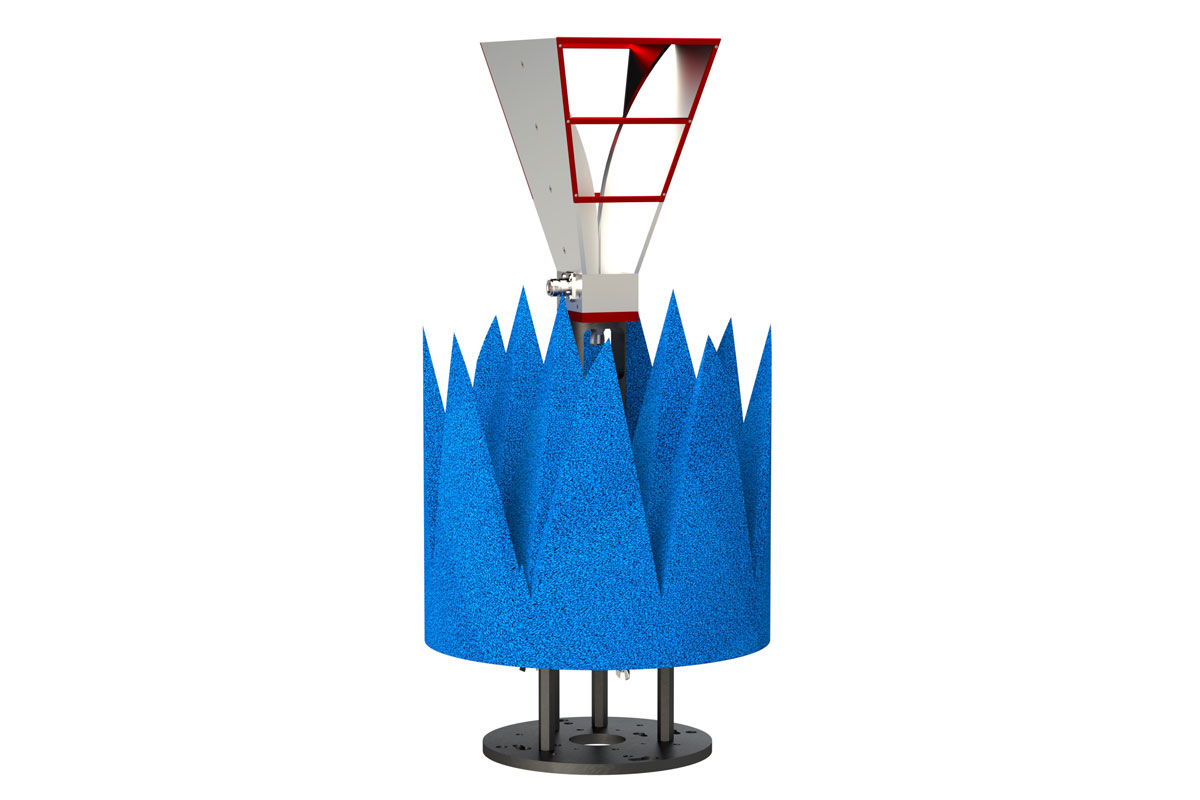

NSI-MI offers broadband ridged probe (BRP) antennas for use as spherical near-field (SNF) measurement probes and far-field (FF) range illuminators.

The wide frequency bandwidth of these probes allows several standard Open Ended Waveguide Probes to be replaced with a single dual ridge horn. Thereby eliminating the need to manually change probes. At low frequencies, these probes are typically smaller than equivalent OEWG probes making testing easier and more convenient.

  • Features

    • Frequency coverage from 0.2 to 50 GHz
    • Includes NSI-MI mounting hardware & absorber collar
    • Includes SNF pattern files (typical) to allow for SNF probe correction
    • Typical cross polarization rejection better than -25 dB
    • Coaxial connector type depends upon model and frequency

    Frequency Range 0.2 – 50.0 GHz
    Frequency Range for SNF 0.2 – 26.5 GHz
    Gain 8 – 21 dBi
    Weight 0.16 – 33.2 lbs (75 – 15.8 kg)
    Height 1.48 – 30.4 in. (38 – 773 mm)
    Width 1.72 – 39.2 in. (44 – 997 mm)
    Connector N (f), K (f), SMA (f), 2.4 mm (f)
